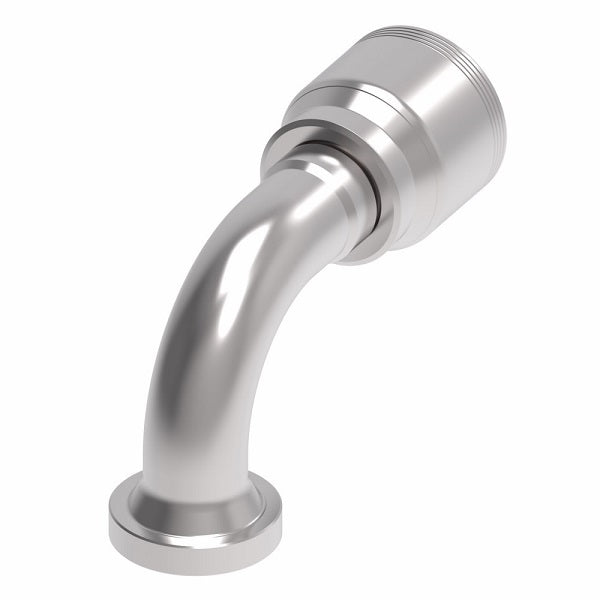

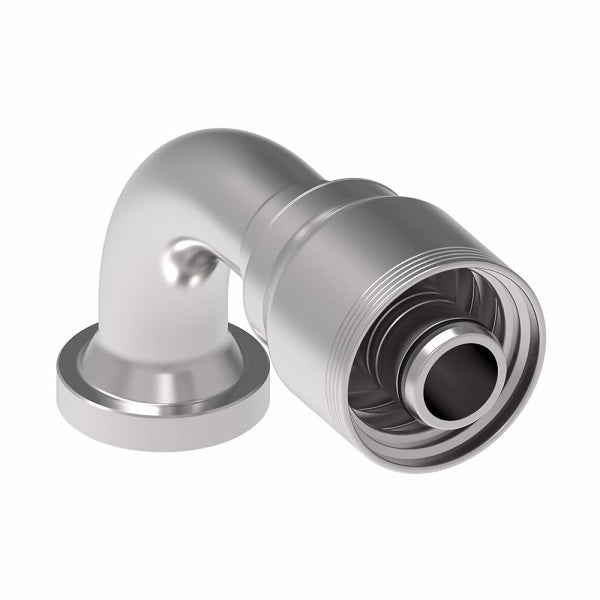

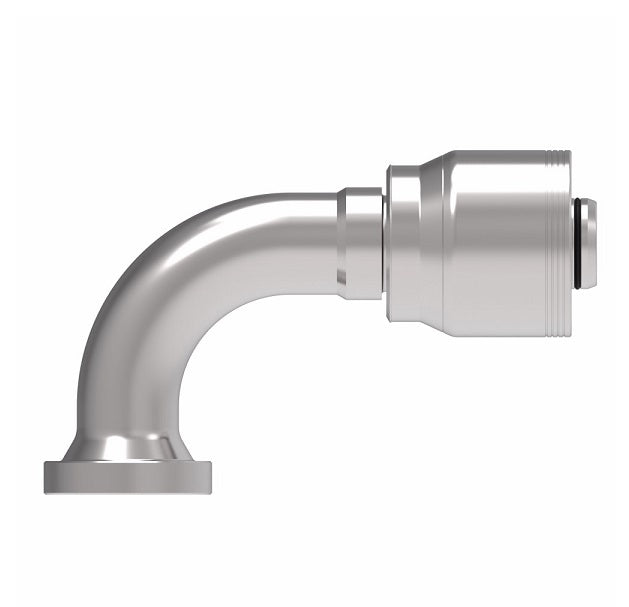

4S16FHB16.061 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange 90° Elbow (FHB) Crimp Fitting | -16 Code 62 Flange x -16 Hose Barb | Steel
4S16FHB16.061 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange 90° Elbow (FHB) Crimp Fitting | -16 Code 62 Flange x -16 Hose Barb | Steel
4S16FHB16.061 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange 90° Elbow (FHB) Crimp Fitting | -16 Code 62 Flange x -16 Hose Barb | Steel

4S16FHB16.061 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange 90° Elbow (FHB) Crimp Fitting | -16 Code 62 Flange x -16 Hose Barb | Steel

$113.54 - $113.54
$113.54
$113.54 - $113.54
$113.54

Aeroquip® by Danfoss
4 Wire 4S SAE Code 62 Flange Crimp Fitting (FHB) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S16FHB16.061 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1in Code 62 Flange, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash H
Dash Size DN Dash Size
4S8FHB8 -08 - -08 1.25" 2.74" 1.67" 0.36" 1.63"
4S12FHB12 -12 19 -12 1.63" 4.27" 2.85" 0.56" 2.32"
4S16FHB12 -16 19 -12 1.88" 4.84" 3.41" 0.56" 2.80"
4S16FHB16 -16 25 -16 1.88" 4.94" 3.39" 0.76" 2.80"
4S16FHB16.061 -16 - -16 - - - - -
4S16FHB16.120 -16 25 -16 1.88" 4.96" 3.39" 0.76" 4.72"
4S20FHB16 -20 25 -16 2.13" 5.72" 4.15" 0.76" 3.50"
4S16FHB20 -16 31 -20 1.88" 5.79" 3.62" 0.99" 2.80"
4S20FHB20 -20 31 -20 2.13" 6.36" 4.19" 0.99" 3.50"
4S20FHB20.120 -20 31 -20 2.13" 6.36" 4.19" 0.99" 4.72"
4S24FHB20 -24 31 -20 2.50" 7.01" 4.84" 0.99" 4.09"
4S24FHB24 -24 38 -24 2.50" 8.22" 5.15" 1.22" 4.09"
4S32FHB24 -32 38 -24 3.13" 9.74" 6.67" 1.22" 5.43"
4S32FHB32 -32 51 -32 3.13" 9.85" 6.78" 1.66" 5.43"
