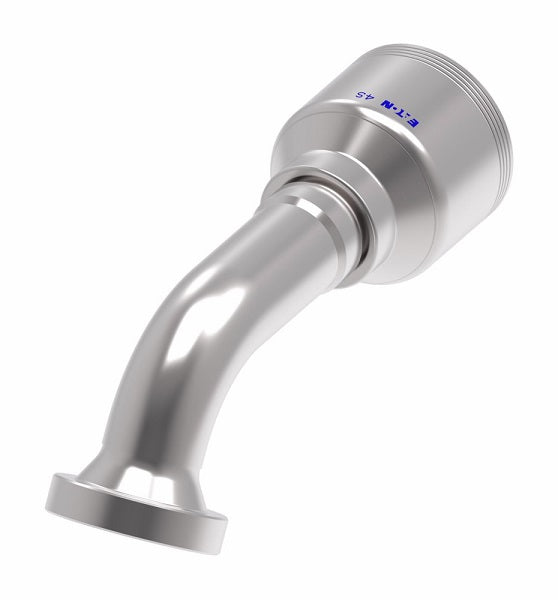

4S16FHG16 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange 60° Elbow (FHG) Crimp Fitting | -16 Code 62 Flange x -16 Hose Barb | Steel

4S16FHG16 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange 60° Elbow (FHG) Crimp Fitting | -16 Code 62 Flange x -16 Hose Barb | Steel

Name: 4S16FHG16 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange 60° Elbow (FHG) Crimp Fitting | -16 Code 62 Flange x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 4S16FHG16 Danfoss
Price: 141.62 USD
Availability: InStock

$141.62 - $141.62

$141.62

$141.62 - $141.62

$141.62

Aeroquip® by Danfoss
4 Wire 4S SAE Code 62 Flange Crimp Fitting (FHG) - 60° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4S16FHG16 Danfoss
Shape (Orientation):	60 Degree
Ends Configuration:	1in Code 62 Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	EØ	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	EØ	H
4S12FHG12	-12	19	-12	1.63"	5.27"	3.85"	0.56"	1.48"
4S16FHG16	-16	25	-16	1.88"	6.16"	4.59"	0.76"	1.76"
4S20FHG16	-20	-	-16	-	-	-	-	-
4S32FHG32	-32	51	-32	3.13"	12.17"	9.10"	1.66"	3.38"
