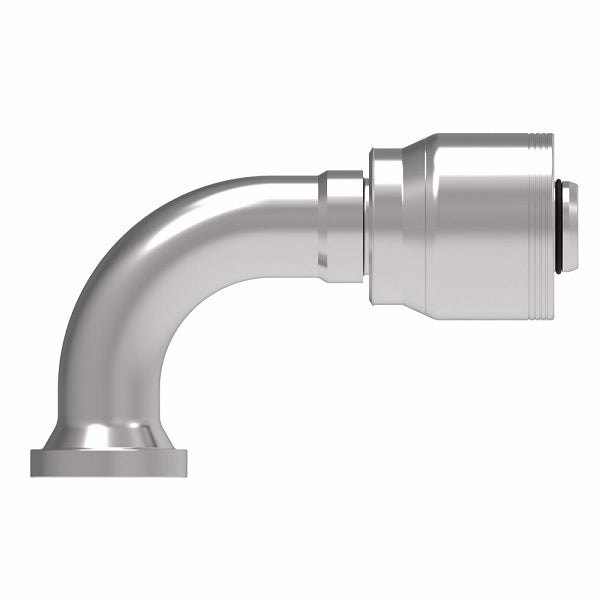

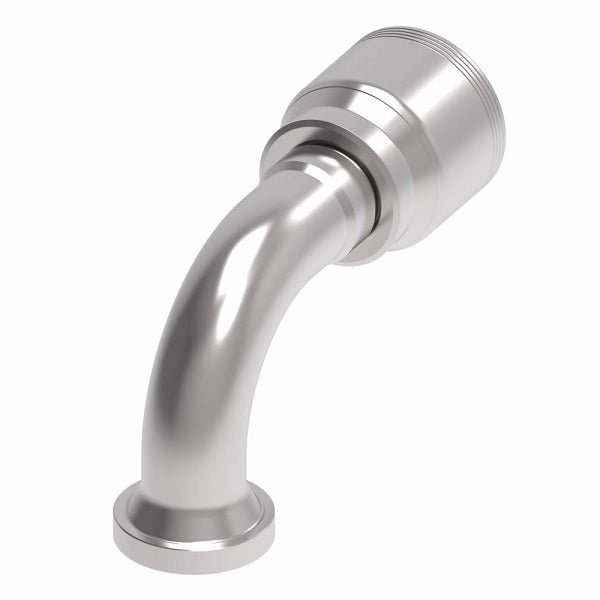

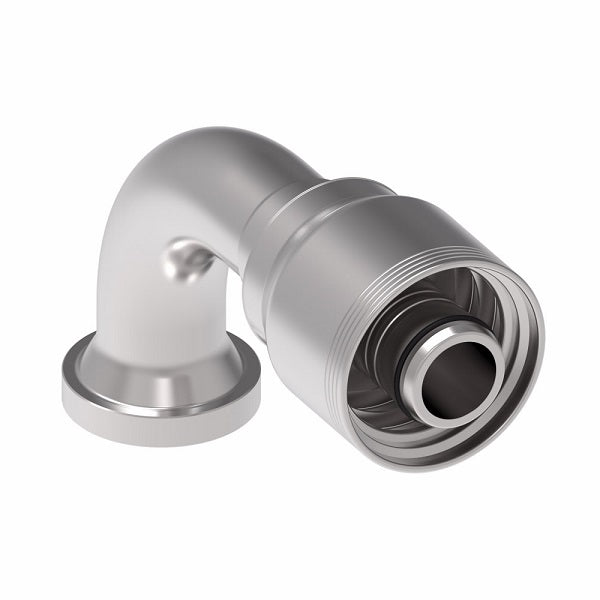

4S16FLB16 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 90° Elbow (FLB) Crimp Fitting | -16 Code 61 Flange x -16 Hose Barb | Steel
4S16FLB16 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 90° Elbow (FLB) Crimp Fitting | -16 Code 61 Flange x -16 Hose Barb | Steel
4S16FLB16 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 90° Elbow (FLB) Crimp Fitting | -16 Code 61 Flange x -16 Hose Barb | Steel
4S16FLB16 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 90° Elbow (FLB) Crimp Fitting | -16 Code 61 Flange x -16 Hose Barb | Steel

4S16FLB16 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 90° Elbow (FLB) Crimp Fitting | -16 Code 61 Flange x -16 Hose Barb | Steel

$67.12 - $67.12
$67.12
$67.12 - $67.12
$67.12

Aeroquip® by Danfoss
4 Wire 4S SAE Code 61 Flange Crimp Fitting (FLB) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S16FLB16 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1in Code 61 Flange, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash H
Dash Size DN Dash Size
4S8FLB8 -08 - -08 1.19" 2.74" 1.67" 0.36" 1.63"
4S12FLB8 -12 - -08 1.50" 3.35" 2.28" 0.38" 2.13"
4S12FLB10 -12 - -10 1.50" 3.31" 2.29" 0.50" 2.13"
4S12FLB12 -12 19 -12 1.50" 4.27" 2.85" 0.56" 2.32"
4S16FLB12 -16 19 -12 1.75" 4.84" 3.41" 0.56" 2.80"
4S20FLB12 -20 19 -12 2.00" 4.72" 2.85" 0.56" 2.56"
4S16FLB16 -16 25 -16 1.75" 4.96" 3.39" 0.76" 2.80"
4S16FLB16.061 -16 - -16 - - - - -
4S16FLB16.116 -16 25 -16 1.75" 4.96" 3.39" 0.76" 4.57"
4S20FLB16 -20 25 -16 2.00" 5.72" 4.15" 0.76" 3.50"
4S24FLB16 -24 25 -16 2.38" 5.37" 3.81" 0.76" 3.22"
4S16FLB20 -16 31 -20 1.75" 5.79" 3.62" 0.99" 2.80"
4S20FLB20 -20 31 -20 2.00" 6.37" 4.19" 0.99" 3.50"
4S20FLB20.068 -20 - -20 - - - - -
4S24FLB20 -24 31 -20 2.38" 6.02" 3.85" 0.99" 3.22"
4S24FLB24 -24 38 -24 2.37" 8.22" 5.15" 1.22" 4.09"
4S32FLB24 -32 38 -24 2.81" 9.74" 6.67" 1.22" 5.43"
4S32FLB32 -32 51 -32 2.81" 9.85" 6.78" 1.66" 5.43"
4S32FLB32.120 -32 - -32 - - - - -
