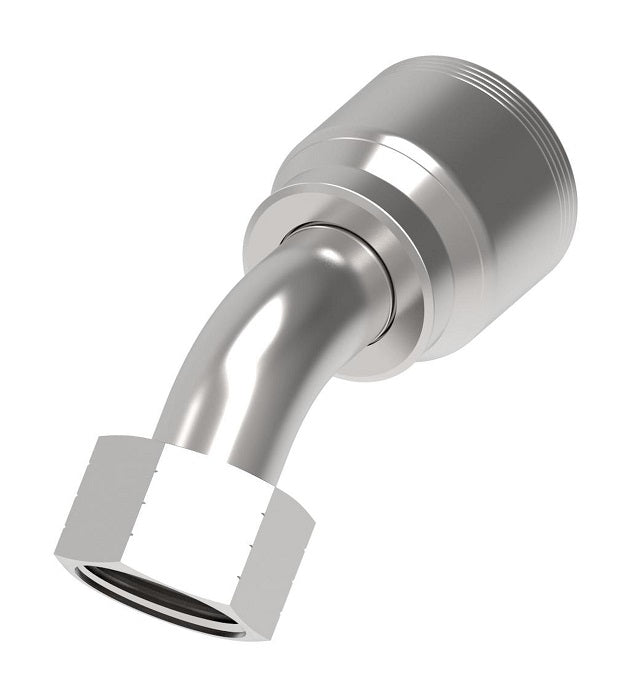

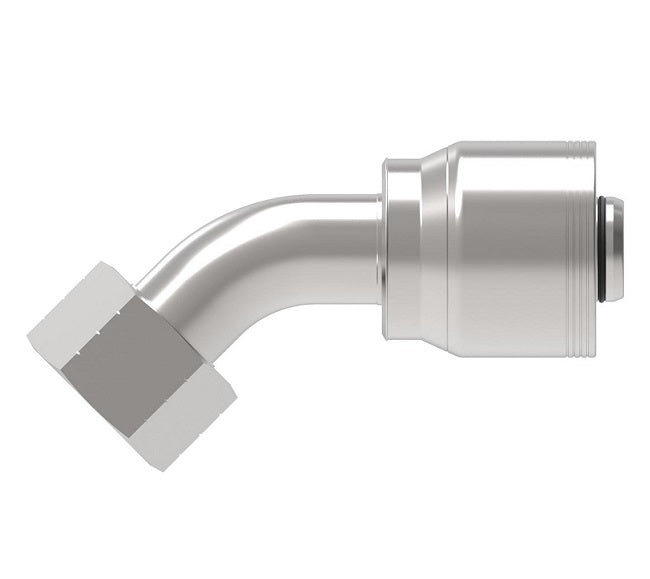

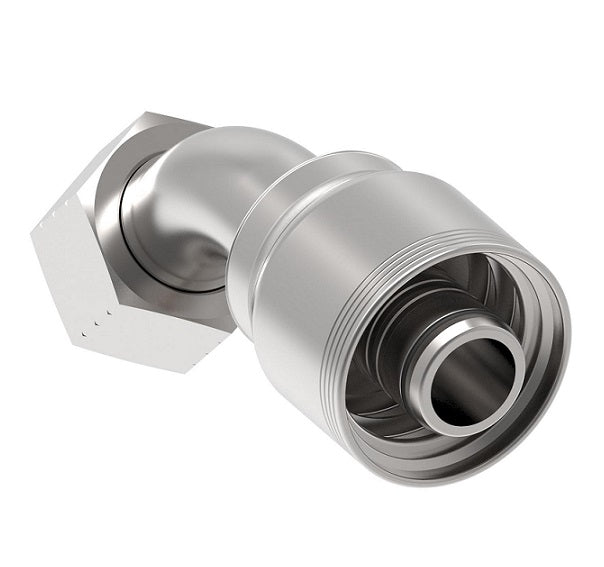

4S16FRA16 Aeroquip by Danfoss | 4 Wire Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel

4S16FRA16 Aeroquip by Danfoss | 4 Wire Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel

Name: 4S16FRA16 Aeroquip by Danfoss | 4 Wire Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 4S16FRA16 Danfoss
Price: 71.88 USD
Availability: InStock

$71.88 - $71.88

$71.88

$71.88 - $71.88

$71.88

Aeroquip® by Danfoss
4 Wire 4S Female ORS Swivel (FRA) - 45° Swivel

Specifications for Variant SKU: 4S16FRA16 Danfoss
Brand:	Aeroquip
Shape (Orientation):	Straight
Ends Configuration:	1in Female O-Ring Face Seal, 1in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series \| EC600 Series \| H430 Series \| H430R Series \| EC525 Series \| H471 Series \| H464 Series \| H485 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Dash Size	DN	Hose Dash Size	Thread	A	D	EØ	H	Hex 1
4S8FRA8	-08	12	-08	13/16-16	2.86"	1.79"	0.36"	0.59"	15/16
4S12FRA12	-12	19	-12	1-3/16-12	-	-	-	-	-
4S16FRA16	-16	25	-16	1-7/16-12	-	-	-	-	-

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
