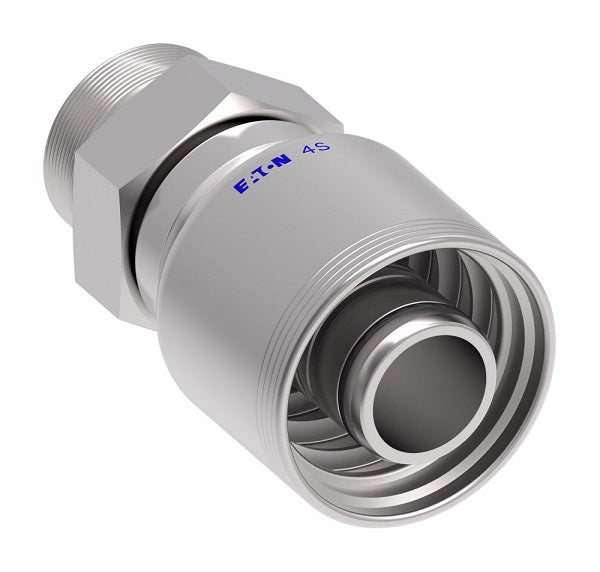

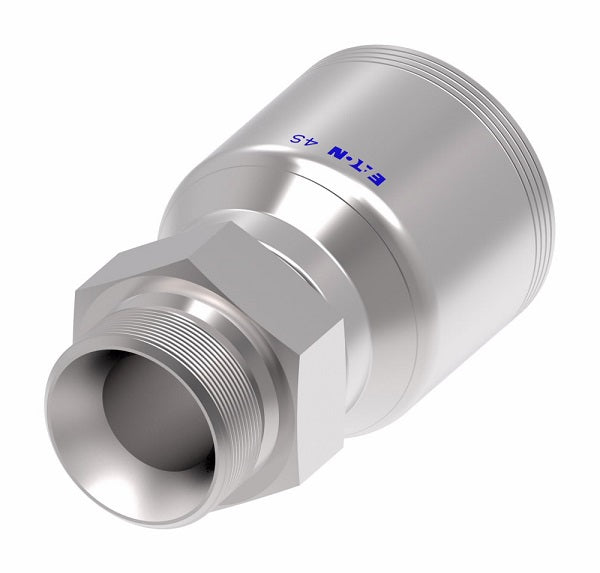

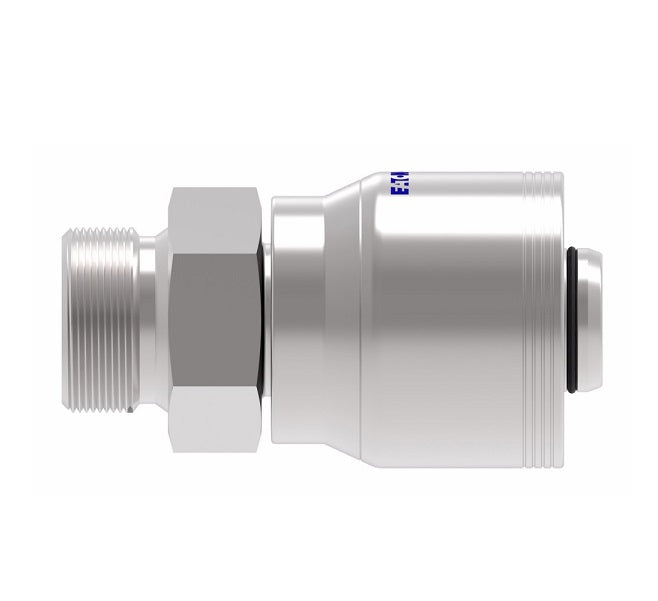

4S20BP20 Aeroquip by Danfoss | 4 Wire 4S BSP Male Parallel Rigid 60° Cone Seat (BP) Crimp Fitting | -20 Male BSPP Rigid x -20 Hose Barb | Steel

4S20BP20 Aeroquip by Danfoss | 4 Wire 4S BSP Male Parallel Rigid 60° Cone Seat (BP) Crimp Fitting | -20 Male BSPP Rigid x -20 Hose Barb | Steel

Name: 4S20BP20 Aeroquip by Danfoss | 4 Wire 4S BSP Male Parallel Rigid 60° Cone Seat (BP) Crimp Fitting | -20 Male BSPP Rigid x -20 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 4S20BP20 Danfoss
Price: 51.12 USD
Availability: InStock

$51.12 - $51.12

$51.12

$51.12 - $51.12

$51.12

Aeroquip® by Danfoss
4 Wire 4S BSP Male Parallel Rigid 60° Cone Seat Crimp Fitting (BP) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4S20BP20 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Male BSPP, 1-1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF
Note:
"G" as part of thread size is ISO designation for parallel thread.


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	Hex 1
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	Hex 1
4S12BP12	-12	19	-12	G 3/4-14	3.13"	1.71"	0.56"	32,0mm
4S16BP16	-16	25	-16	G 1-11	3.53"	1.97"	0.75"	41,0mm
4S20BP20	-20	31	-20	G 1-1/4-11	4.32"	2.15"	0.99"	50,0mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
