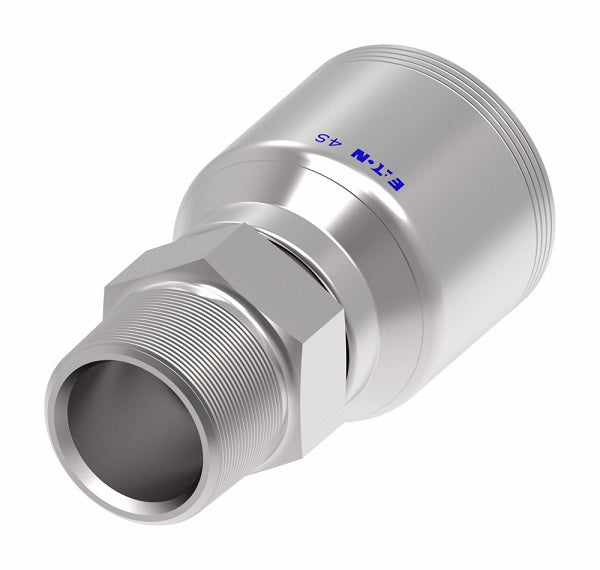

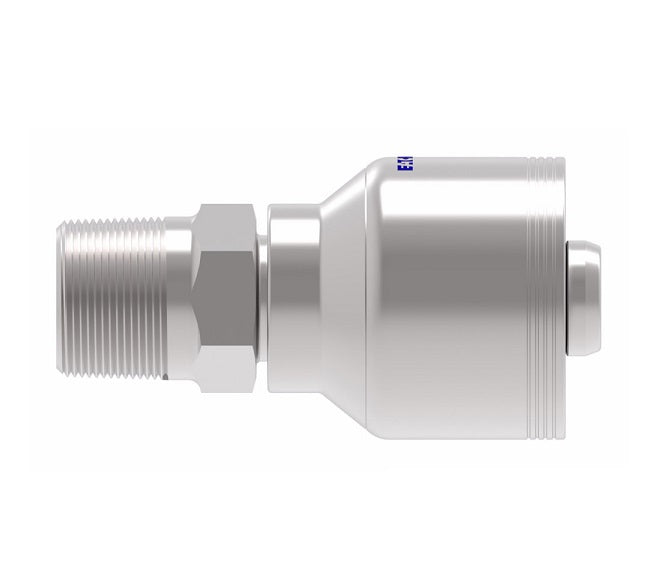

4S20BT20 Aeroquip by Danfoss | 4 Wire 4S BSP Male Tapered Rigid (BT) Crimp Fitting | -20 Male BSPT Rigid x -20 Hose Barb | Steel

4S20BT20 Aeroquip by Danfoss | 4 Wire 4S BSP Male Tapered Rigid (BT) Crimp Fitting | -20 Male BSPT Rigid x -20 Hose Barb | Steel

Name: 4S20BT20 Aeroquip by Danfoss | 4 Wire 4S BSP Male Tapered Rigid (BT) Crimp Fitting | -20 Male BSPT Rigid x -20 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 4S20BT20 Danfoss
Price: 98.06 USD
Availability: InStock

$98.06 - $98.06

$98.06

$98.06 - $98.06

$98.06

Aeroquip® by Danfoss
4 Wire 4S BSP Male Tapered Rigid Crimp Fitting (BT) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 4S20BT20 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Male BSPT, 1-1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF
Note:
"R" as part of thread size is ISO designation for tapered thread.


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	Hex 1
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	Hex 1
4S12BT12	-12	19	-12	R 3/4-14	3.31"	1.88"	0.56"	27,0mm
4S16BT16	-16	25	-16	R 1-11	3.74"	2.17"	0.76"	36,0mm
4S20BT20	-20	31	-20	R 1-1/4-11	4.66"	2.49"	0.99"	46,0mm
