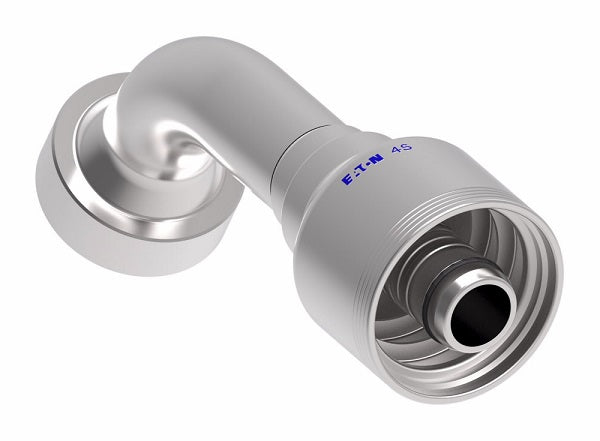

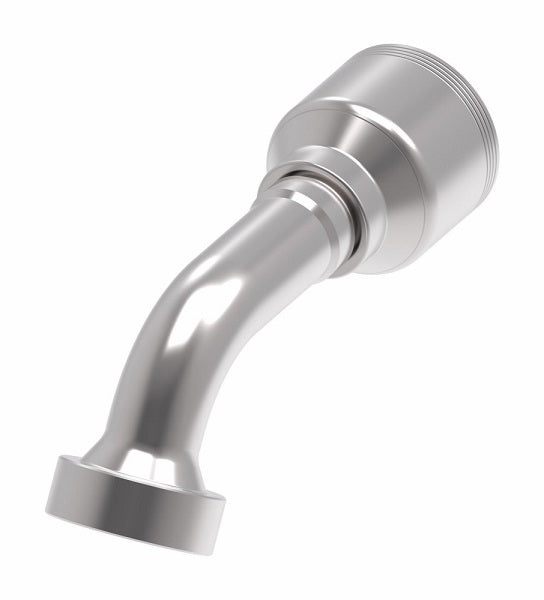

4S20CTG16 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 60° Elbow (CTG) Crimp Fitting | -20 CAT Flange x -16 Hose Barb | Steel

4S20CTG16 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 60° Elbow (CTG) Crimp Fitting | -20 CAT Flange x -16 Hose Barb | Steel

Name: 4S20CTG16 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 60° Elbow (CTG) Crimp Fitting | -20 CAT Flange x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 4S20CTG16 Danfoss
Price: 157.44 USD
Availability: InStock

$157.44 - $157.44

$157.44

$157.44 - $157.44

$157.44

Aeroquip® by Danfoss
4 Wire 4S CAT Flange Crimp Fitting (CTG) - 60° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4S20CTG16 Danfoss
Shape (Orientation):	60 Degree
Ends Configuration:	1-1/4in CAT Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E&Oslash	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E&Oslash	H
4S12CTG12	-12	19	-12	1.63"	5.38"	3.96"	0.56"	1.67"
4S16CTG16	-16	25	-16	1.87"	6.25"	4.69"	0.76"	1.92"
4S20CTG16	-20	25	-16	2.13"	7.29"	5.73"	0.76"	2.33"
4S24CTG24	-24	38	-24	2.50"	10.01"	6.94"	1.22"	2.62"
4S32CTG32	-32	51	-32	3.13"	12.20"	9.13"	1.66"	3.44"
