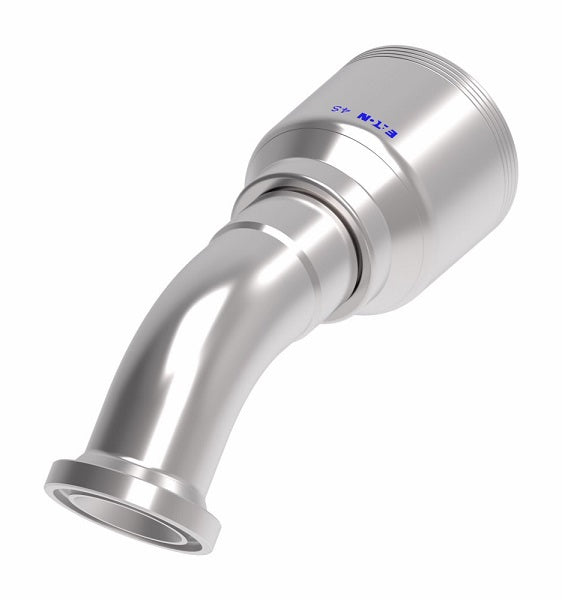

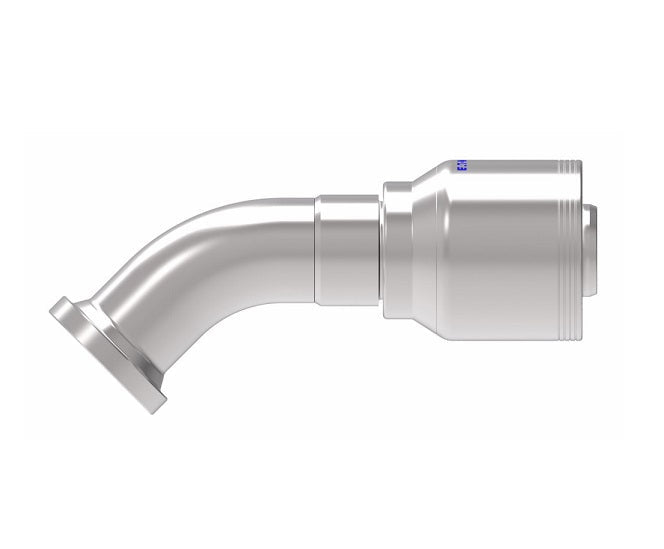

4S20FLF20 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 30° Elbow (FLF) Crimp Fitting | -20 Code 61 Flange x -20 Hose Barb | Steel

4S20FLF20 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 30° Elbow (FLF) Crimp Fitting | -20 Code 61 Flange x -20 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$1,460.20 - $1,460.20

$1,460.20

$1,460.20 - $1,460.20

$1,460.20

Aeroquip® by Danfoss
4 Wire 4S SAE Code 61 Flange Crimp Fitting (FLF) - 30° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4S20FLF20 Danfoss \| 10 \|
Shape (Orientation):	30 Degree
Ends Configuration:	1-1/4in Code 61 Flange, 1-1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E&Oslash	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E&Oslash	H
4S8FLF8	-08	-	-08	1.19"	3.32"	2.15"	0.37"	0.50"
4S12FLF12	-12	19	-12	1.50"	4.70"	3.28"	0.56"	0.65"
4S16FLF12	-16	19	-12	1.75"	5.30"	3.87"	0.56"	0.76"
4S16FLF16	-16	25	-16	1.75"	5.42"	3.85"	0.76"	0.76"
4S20FLF16	-20	25	-16	2.00"	6.23"	4.67"	0.76"	0.92"
4S20FLF20	-20	31	-20	2.00"	6.88"	4.71"	0.99"	0.92"
4S24FLF20	-24	31	-20	2.38"	6.69"	4.52"	0.99"	0.95"
4S24FLF24	-24	38	-24	2.37"	8.80"	5.72"	1.22"	1.06"
4S32FLF32	-32	51	-32	2.81"	10.47"	7.39"	1.66"	1.34"
