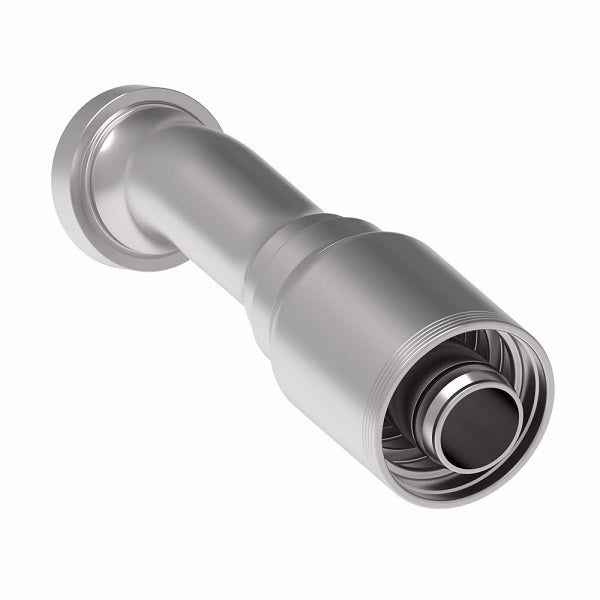

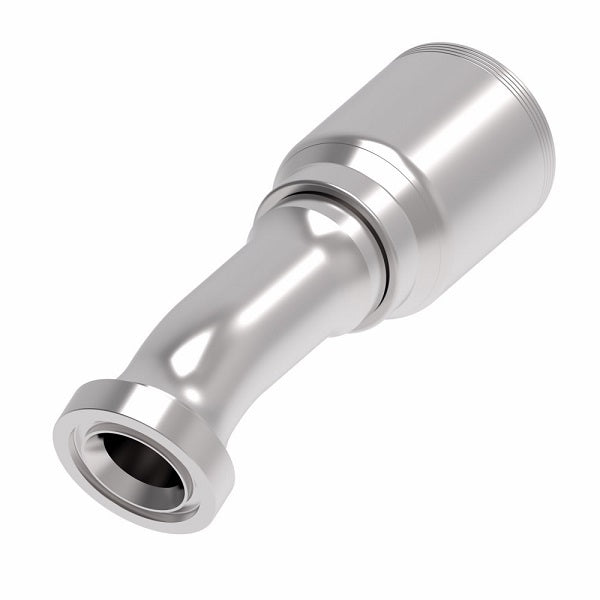

4S24CTD24 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 22.5° Elbow (CTD) Crimp Fitting | -24 CAT Flange x -24 Hose Barb | Steel
4S24CTD24 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 22.5° Elbow (CTD) Crimp Fitting | -24 CAT Flange x -24 Hose Barb | Steel
4S24CTD24 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 22.5° Elbow (CTD) Crimp Fitting | -24 CAT Flange x -24 Hose Barb | Steel

4S24CTD24 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 22.5° Elbow (CTD) Crimp Fitting | -24 CAT Flange x -24 Hose Barb | Steel

$290.78 - $290.78
$290.78
$290.78 - $290.78
$290.78

Aeroquip® by Danfoss
4 Wire 4S CAT Flange Crimp Fitting (CTD) - 22.5° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S24CTD24 Danfoss
Shape (Orientation): 22.5 Degree
Ends Configuration: 1-1/2in CAT Flange, 1-1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash H
Dash Size DN Dash Size
4S12CTD12 -12 19 -12 1.63" 4.97" 3.55" 0.56" 0.54"
4S16CTD16 -16 25 -16 1.87" 5.68" 4.11" 0.76" 0.60"
4S20CTD16 -20 25 -16 2.13" 6.48" 4.91" 0.76" 0.70"
4S24CTD24 -24 38 -24 2.50" 8.97" 5.90" 1.22" 0.76"
4S32CTD32 -32 51 -32 3.13" 10.67" 7.60" 1.66" 0.95"
