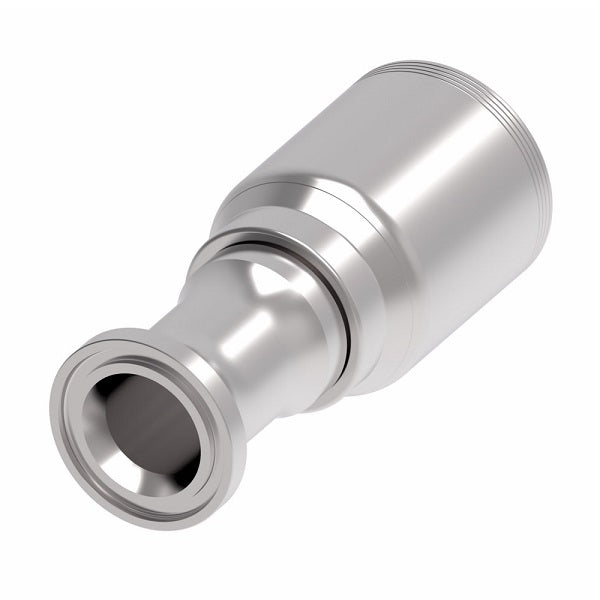

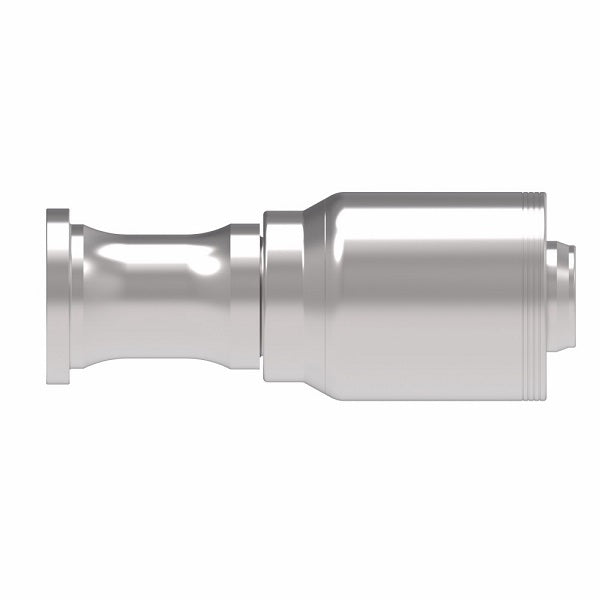

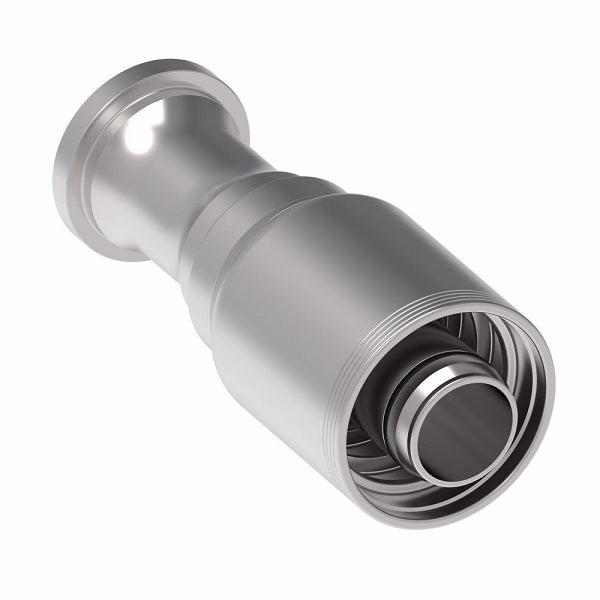

4S24FL32 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Split Flange (FL) Crimp Fitting | -24 Code 61 Split Flange x -32 Hose Barb | Steel
4S24FL32 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Split Flange (FL) Crimp Fitting | -24 Code 61 Split Flange x -32 Hose Barb | Steel
4S24FL32 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Split Flange (FL) Crimp Fitting | -24 Code 61 Split Flange x -32 Hose Barb | Steel
4S24FL32 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Split Flange (FL) Crimp Fitting | -24 Code 61 Split Flange x -32 Hose Barb | Steel

4S24FL32 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Split Flange (FL) Crimp Fitting | -24 Code 61 Split Flange x -32 Hose Barb | Steel

$252.02 - $252.02
$252.02
$252.02 - $252.02
$252.02

Aeroquip® by Danfoss
4 Wire 4S SAE Code 61 Flange Crimp Fitting (FL) - Straight
Specifications for Variant SKU: 4S24FL32 Danfoss
Brand: Aeroquip
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Code 61 Split Flange, 2in Hose Barb
Material(s): Steel
Compatible with the following Series: FC636 Series  |   FC736 Series  |   GH493 Series  |   EC525 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D EØ
Dash Size DN Dash Size
4S8FL8 -08 - -08 1.19" 3.13" 2.06" 0.38"
4S12FL8 -12 - -08 1.50" 3.17" 2.10" 0.38"
4S12FL10 -12 - -10 1.50" 3.13" 2.10" 0.50"
4S12FL12 -12 19 -12 1.50" 3.57" 2.15" 0.56"
4S16FL12 -16 19 -12 1.75" 3.55" 2.13" 0.56"
4S20FL12 -20 19 -12 2.00" 3.85" 2.42" 0.56"
4S16FL16 -16 25 -16 1.75" 3.67" 2.11" 0.76"
4S20FL16 -20 25 -16 2.00" 3.97" 2.41" 0.76"
4S24FL16 -24 25 -16 2.38" 3.83" 2.27" 0.76"
4S16FL20 -16 31 -20 1.75" 4.35" 2.18" 0.99"
4S20FL20 -20 31 -20 2.00" 4.62" 2.45" 0.99"
4S24FL20 -24 31 -20 2.38" 4.20" 2.03" 0.99"
4S32FL20 -32 31 -20 2.81" 4.13" 1.96" 0.99"
4S24FL24 -24 38 -24 2.38" 6.75" 3.68" 1.22"
4S24FL32 -24 - -32 - - - -
4S32FL24 -32 38 -24 2.81" 6.88" 3.81" 1.22"
4S32FL32 -32 51 -32 2.81" 6.99" 3.92" 1.66"
