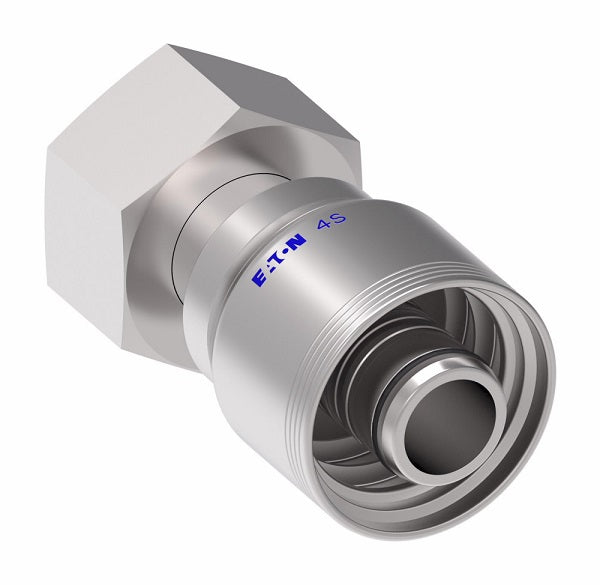

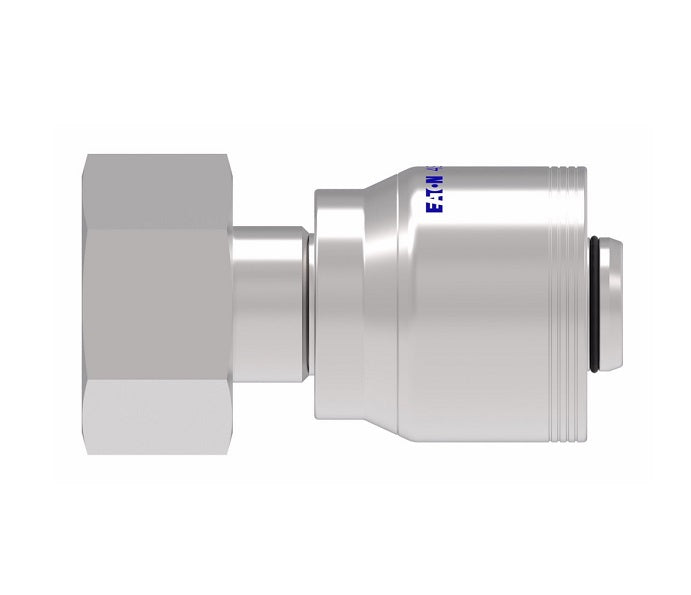

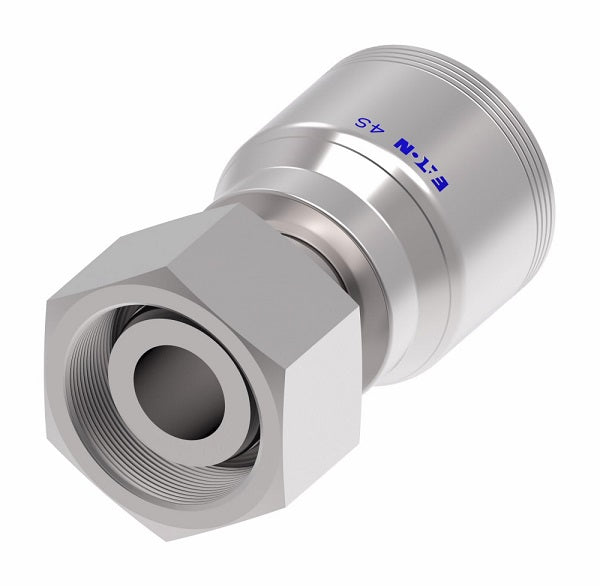

4S25DS16 Aeroquip by Danfoss | 4 Wire 4S Female DKO/DIN 24° Seat Swivel DKO (Heavy) (DS) Crimp Fitting | S30 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel
4S25DS16 Aeroquip by Danfoss | 4 Wire 4S Female DKO/DIN 24° Seat Swivel DKO (Heavy) (DS) Crimp Fitting | S30 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel
4S25DS16 Aeroquip by Danfoss | 4 Wire 4S Female DKO/DIN 24° Seat Swivel DKO (Heavy) (DS) Crimp Fitting | S30 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel
4S25DS16 Aeroquip by Danfoss | 4 Wire 4S Female DKO/DIN 24° Seat Swivel DKO (Heavy) (DS) Crimp Fitting | S30 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel

4S25DS16 Aeroquip by Danfoss | 4 Wire 4S Female DKO/DIN 24° Seat Swivel DKO (Heavy) (DS) Crimp Fitting | S30 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel

$121.12 - $121.12
$121.12
$121.12 - $121.12
$121.12

Aeroquip® by Danfoss
4 Wire 4S Male DKO/DIN 24° Seat Swivel DKO (Heavy) Crimp Fitting (DS) - Straight

S.Rh. DKO (Heavy)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S25DS16 Danfoss
Shape (Orientation): Straight
Ends Configuration: S30 Female DIN, 1in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Tube OD Hose Size Thread A D E&Oslash Hex 1
DN Dash Size
4S8DS6 12 - -06 M20 x 1.5 2.12" 1.12" 0.26" 0.94"
4S10DS6 14 - -06 M22 x 1.5 2.24" 1.24" 0.26" 1.06"
4S12DS8 16 - -08 M24 x 1.5 2.46" 1.29" 0.38" 1.18"
4S16DS10 20 - -10 M30 x 2 2.63" 1.48" 0.50" 1.42"
4S16DS12 20 19 -12 M30X2 2.90" 1.47" 0.56" 36mm
4S20DS12 25 19 -12 M36X2 3.41" 1.98" 0.56" 46mm
4S25DS12 30 19 -12 M42X2 3.47" 2.04" 0.56" 50mm
4S25DS16 30 25 -16 M42X2 3.59" 2.02" 0.76" 50mm
4S32DS16 38 25 -16 M52X2 3.72" 2.18" 0.76" 60mm
4S25DS20 30 31 -20 M42X2 3.80" 1.64" 0.87" 50mm
4S32DS20 38 31 -20 M52X2 4.39" 2.22" 0.99" 60mm
