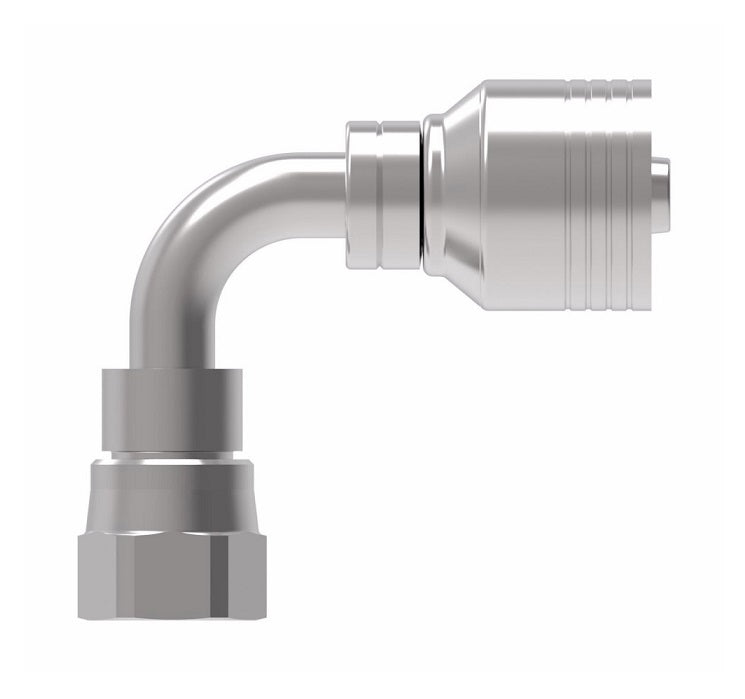

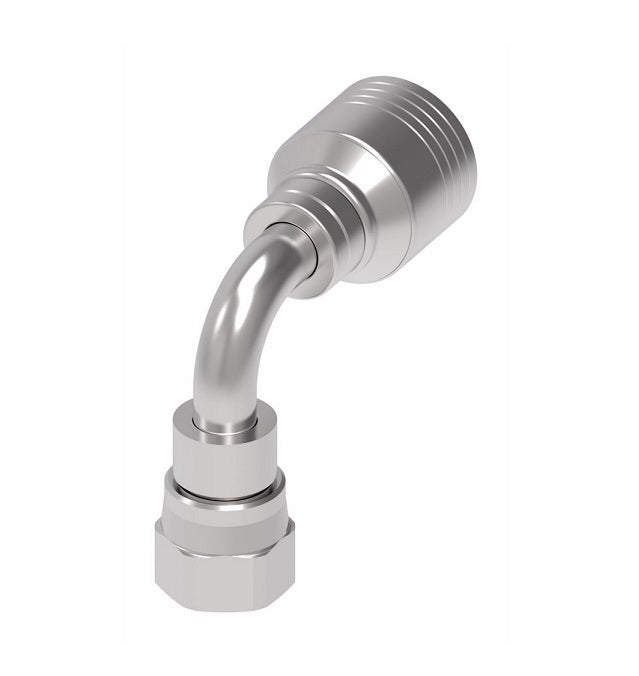

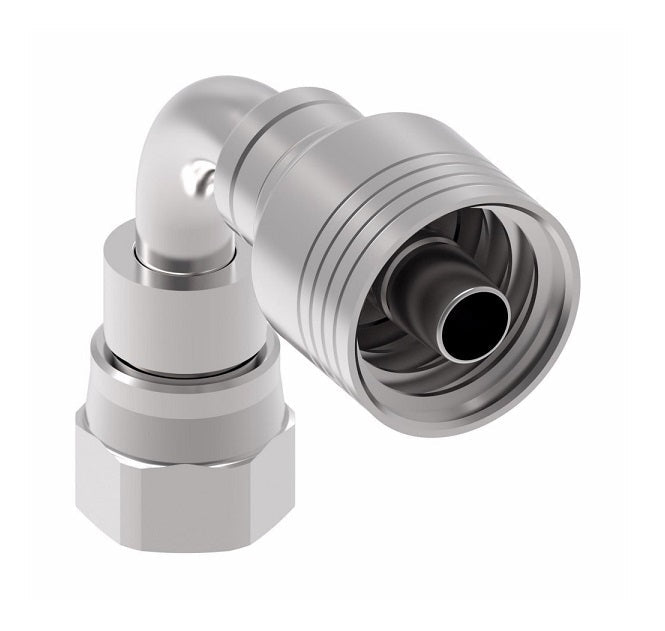

4SA10FJB8 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -10 Female JIC 37° Swivel x -08 Hose Barb | Steel

4SA10FJB8 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -10 Female JIC 37° Swivel x -08 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$813.40 - $813.40

$813.40

$813.40 - $813.40

$813.40

Aeroquip® by Danfoss
4 Wire 4S Female JIC/37° Swivel Crimp Fitting (FJB) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4SA10FJB8 Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	5/8in Female JIC, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	C636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF
Note:
When assembled with all Eaton components, all SAE 37° JIC male and female terminal ends in the 4S & 6S product line are rated at the pressures listed in the table and have passed one million impulse cycles at 133% of this pressure. All straight configurations achieve a 4:1 burst. The 45° and 90° elbow configurations in the -12 size meet a 3.2:1 burst The 45° and 90° elbow configurations in the -16 size achieve a 2.8:1 burst The 45° and 90° elbow configurations in the -20 size meet a 4:1 burst The 45° & 90° elbow configurations in the -24 size meet a 2.4:1 burst.


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	H	Hex 1
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	H	Hex 1
4SA6FJB6	-06	-	-06	9/16-18	2.13"	1.22"	0.24"	0.85"	11/16"
4SA8FJB6	-08	-	-06	3/4-16	2.55"	1.71"	0.26"	1.87"	7/8"
4SA8FJB8	-08	-	-08	3/4-16	2.64"	1.42"	0.37"	1.09"	7/8"
4SA10FJB8	-10	-	-08	7/8-14	2.78"	1.70"	0.37"	1.93"	1"
4SA10FJB10	-10	-	-10	7/8-14	2.76"	1.55"	0.46"	1.23"	1"
4SA12FJB10	-12	-	-10	1-1/16-12	3.34"	2.18"	0.50"	2.35"	1-1/4"
4SA12FJB12	-12	19	-12	1-1/16-12	3.99"	2.57"	0.56"	2.28"	1-1/4"
4SA16FJB12	-16	19	-12	1-5/16-12	4.33"	2.91"	0.56"	2.80"	1-1/2"
4SA16FJB16	-16	25	-16	1-5/16-12	4.45"	2.89"	0.76"	2.80"	1-1/2"
4SA16FJB16.056	-16	-	-16	-	-	-	-	-	-
4SA20FJB16	-20	25	-16	1-5/8-12	4.61"	3.05"	0.75"	3.07"	2"
4SA20FJB20	-20	31	-20	1-5/8-12	5.22"	3.05"	0.99"	3.07"	2"
4SA24FJB24	-24	38	-24	1-7/8-12	8.22"	5.15"	1.22"	4.09"	2-1/4"
