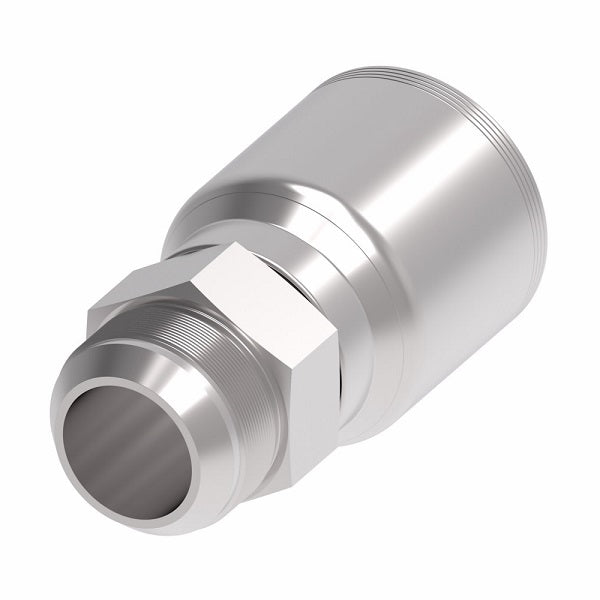

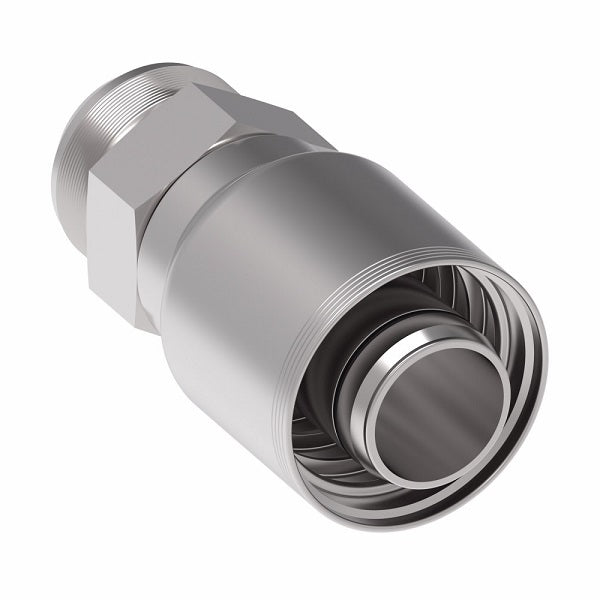

4SA32MJ32 Aeroquip by Danfoss | 4 Wire 4S Male JIC/37° Rigid (MJ) Crimp Fitting | -32 Male JIC/37° Rigid x -32 Hose Barb | Steel
4SA32MJ32 Aeroquip by Danfoss | 4 Wire 4S Male JIC/37° Rigid (MJ) Crimp Fitting | -32 Male JIC/37° Rigid x -32 Hose Barb | Steel
4SA32MJ32 Aeroquip by Danfoss | 4 Wire 4S Male JIC/37° Rigid (MJ) Crimp Fitting | -32 Male JIC/37° Rigid x -32 Hose Barb | Steel

4SA32MJ32 Aeroquip by Danfoss | 4 Wire 4S Male JIC/37° Rigid (MJ) Crimp Fitting | -32 Male JIC/37° Rigid x -32 Hose Barb | Steel

$246.49 - $246.49
$246.49
$246.49 - $246.49
$246.49

Aeroquip® by Danfoss
4 Wire 4S Male JIC/37° Rigid Crimp Fitting (MJ) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4SA32MJ32 Danfoss
Shape (Orientation): Straight
Ends Configuration: 2in Male JIC, 2in Hose Barb
Material(s): Steel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Note:
  • When assembled with all Eaton components, all SAE 37° JIC male and female terminal ends in the 4S & 6S product line are rated at the pressures listed in the table and have passed one million impulse cycles at 133% of this pressure. All straight configurations achieve a 4:1 burst.
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash Hex 1
Dash Size DN Dash Size
4SA6MJ6 -06 - -06 9/16-18 2.12" 1.22" 0.26" 11/16"
4SA8MJ6 -08 - -06 3/4-16 1.94" 1.11" 0.26" 13/16"
4SA8MJ8 -08 - -08 3/4-16 2.59" 1.40" 0.38" 13/16"
4SA10MJ8 -10 - -08 7/8-14 2.33" 1.26" 0.38" 15/16"
4SA12MJ8 -12 - -08 1-1/16-12 2.50" 1.43" 0.38" 1-1/8"
4SA10MJ10 -10 - -10 7/8-14 2.73" 1.59" 0.48" 15/16"
4SA12MJ10 -12 - -10 1-1/16-12 2.46" 1.43" 0.50" 1-1/8"
4SA10MJ12 -10 19 -12 7/8-14 3.32" 1.90" 0.48" 15/16"
4SA12MJ12 -12 19 -12 1-1/16-12 3.42" 2.00" 0.56" 1-1/8"
4SA14MJ12 -14 19 -12 1-3/16-12 3.27" 1.85" 0.56" 1-1/4"
4SA16MJ12 -16 19 -12 1-5/16-12 3.29" 1.87" 0.56" 1-3/8"
4SA16MJ16 -16 25 -16 1-5/16-12 3.69" 2.13" 0.75" 1-3/8"
4SA20MJ16 -20 25 -16 1-5/8-12 3.92" 2.36" 0.76" 1-11/16"
4SA20MJ20 -20 31 -20 1-5/8-12 4.56" 2.38" 0.99" 1-11/16"
4SA24MJ24 -24 38 -24 1-7/8-12 5.96" 2.89" 1.22" 2"
4SA32MJ32 -32 51 -32 2-1/2-12 6.45" 3.38" 1.66" 2-5/8"
