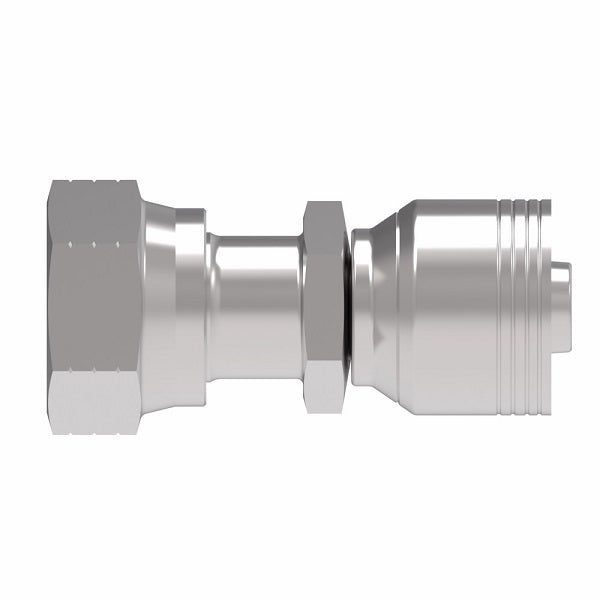

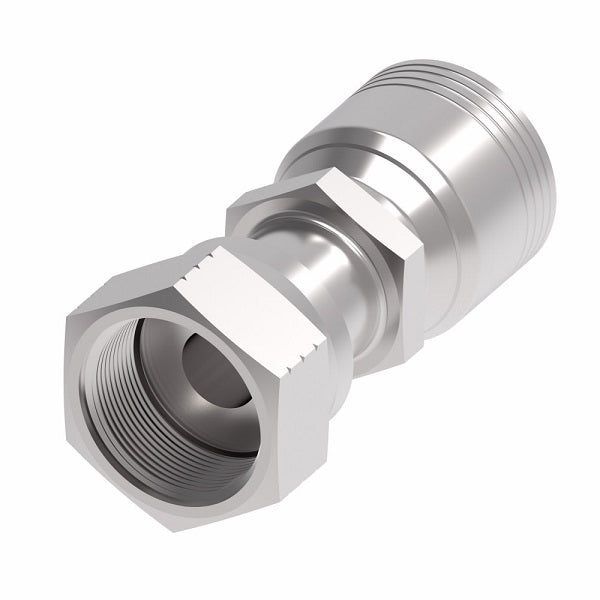

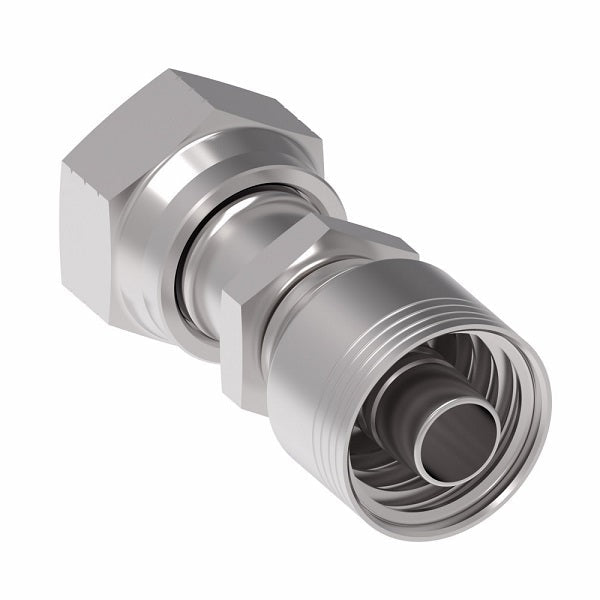

4SA6FR8 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel (FR) Crimp Fitting | -06 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
4SA6FR8 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel (FR) Crimp Fitting | -06 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel | Pack of 10
4SA6FR8 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel (FR) Crimp Fitting | -06 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel | Pack of 10
4SA6FR8 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel (FR) Crimp Fitting | -06 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel

4SA6FR8 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel (FR) Crimp Fitting | -06 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel | Pack of 10

$698.17 - $698.17
$698.17
$698.17 - $698.17
$698.17

Aeroquip® by Danfoss
4 Wire 4S Female ORS Swivel Crimp Fitting (FR) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 4SA6FR8 Danfoss | 10 |
Shape (Orientation): Straight
Ends Configuration: 3/8in Female O-Ring Face Seal, 1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: FC636 Series  |   FC736 Series  |   GH493 Series  |   EC525 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Thread A D EØ Hex 1

 Hex 2
Dash Size DN Dash Size
4SA6FR6 -06 - -06 11/16-16 2.07" 1.24" 0.26" 13/16" 11/16"
4SA8FR6 -08 - -06 13/16-16 2.14" 1.32" 0.26" 15/16" 11/16"
4SA6FR8 -06 - -08 11/16-16 2.41" 1.34" 0.26" 13/16" 7/8"
4SA8FR8 -08 - -08 13/16-16 2.61" 1.50" 0.36" 15/16" 7/8"
4SA10FR8 -10 - -08 1-14 2.57" 1.47" 0.38" 1-1/8" 7/8"
4SA10FR10 -10 - -10 1-14 2.62" 1.61" 0.45" 1-1/8" 1-1/16"
4SA12FR8 -12 - -08 - - - - - -
4SA12FR10 -12 - -10 1-3/16-12 2.65" 1.63" 0.50" 1-3/8" 1-1/16"
4SA10FR12 -10 19 -12 1-14 2.93" 1.50" 0.56" 1-3/16" 1-1/8"
4SA12FR12 -12 19 -12 1-3/16-12 3.05" 1.62" 0.56" 1-3/16" 1-3/8"
4SA16FR12 -16 19 -12 1-7/16-12 3.12" 1.70" 0.56" 1-3/16" 1-5/8"
4SA12FR16 -12 25 -16 1-3/16-12 3.17" 1.61" 0.76" 1-5/8" 1-3/8"
4SA16FR16 -16 25 -16 1-7/16-12 3.24" 1.68" 0.76" 1-5/8" 1-5/8"
4SA20FR16 -20 25 -16 1-11/16-12 3.24" 1.68" 0.76" 1-5/8" 1-7/8"
4SA20FR20 -20 31 -20 1-11/16-12 3.90" 1.72" 0.99" 1-13/16" 1-7/8"
4SA24FR24 -24 38 -24 2-12 4.95" 1.87" 1.22" 2-1/4" 2-1/4"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
