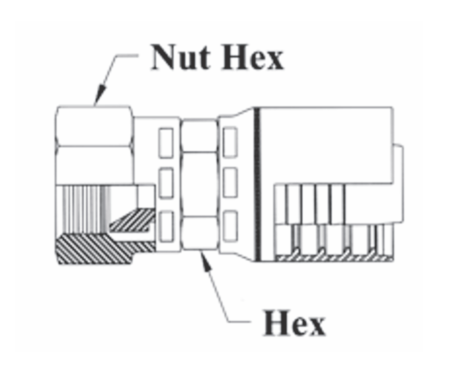

4SH09-20x24 Couplamatic Grip Crimp 4SH Series Coupling - JIC 37° - Female Swivel - 1-1/4" Hose ID - 1-7/8x12 Thread Size

4SH09-20x24 by Couplamatic | Grip Crimp 4SH Series Coupling | 1-1/4" Hose ID x 1-7/8x12 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating

Save $42.83 Save $42.83
$107.07
$107.07 - $107.07
$107.07
$64.24
$64.24 - $64.24
$64.24

Couplamatic Systems Inc.
Grip Crimp 4SH Series - No-Skive Couplings - JIC 37° - Female Swivel
Specifications for Variant SKU: 4SH09-20x24 Couplamatic
Series: 4SH Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Female JIC, 1-1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 4SH Series
Description:
  • The 4SH Series Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•
    Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
    Parker 73
    4SH09-20x20 1-1/4" 1-1/4" 1-5/8x12 1-11/16" 2" 10673-20-20
    4SH09-20x24 1-1/4" 1-1/2" 1-7/8x12 1-7/8" 2-1/4" -
    4SH09-24x24 1-1/2" 1-1/2" 1-7/8x12 2" 2-1/4" 10673-24-24
    4SH09-32x32 2" 2" 2-1/2x12 2-1/2" 2-7/8" 10673-32-32
