4SH25-20x20 Couplamatic Grip Crimp 4SH Series Coupling - JIC 37° - 45° Female Swivel - 1-1/4" Hose ID - 1-5/8x12 Thread Size

4SH25-20x20 by Couplamatic | Grip Crimp 4SH Series Coupling | 1-1/4" Hose ID x 1-5/8x12 Thread Size JIC 37° Female Swivel | 45° Elbow | Trivalent Zinc Plating

Save $46.60 Save $46.60
$116.50
$116.50 - $116.50
$116.50
$69.90
$69.90 - $69.90
$69.90

Couplamatic Systems Inc.
Grip Crimp 4SH Series - No-Skive Couplings - JIC 37° - 45° Female Swivel
Specifications for Variant SKU: 4SH25-20x20 Couplamatic
Series: 4SH Series
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/4in Female JIC, 1-1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 4SH Series
Description:
  • The 4SH Series Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

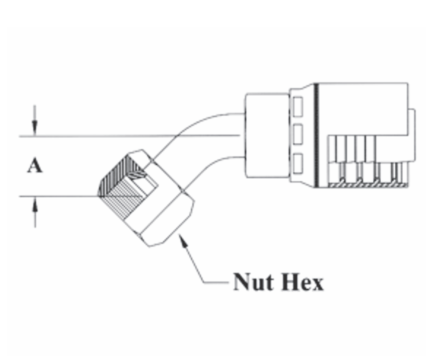

    Part Number Hose ID Tube Size Thread Size A-DropInches Nut Hex
    4SH25-20x20 1-1/4" 1-1/4" 1-5/8x12 1.69" 2"
