4SH53-20x20 Couplamatic Grip Crimp 4SH Series Coupling - Code 61 Split Flange - 90° Bend - 1-1/4" Hose ID - 1-1/4" Flange Size

4SH53-20x20 by Couplamatic | Grip Crimp 4SH Series Coupling | 1-1/4" Hose ID x 1-1/4" Split Flange Size | Code 61 | 90° Elbow | Trivalent Zinc Plating

Save $38.56 Save $38.56
$96.40
$96.40 - $96.40
$96.40
$57.84
$57.84 - $57.84
$57.84

Couplamatic Systems Inc.
Grip Crimp 4SH Series - No-Skive Couplings - Code 61 Split Flange - 90° Bend
Specifications for Variant SKU: 4SH53-20x20 Couplamatic
Series: 4SH Series
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Code 61 Flange, 1-1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 4SH Series
Description:
  • The 4SH Series Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating

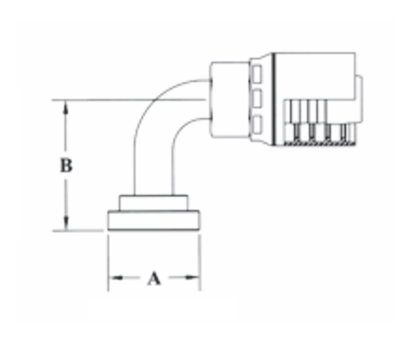

Part Number Hose ID Flange Size A-DiaInches B-DropInches Cross Reference Part Numbers
Parker 73
4SH53-20x20 1-1/4" 1-1/4" 2.00" 2.88" 14N73-20-20
4SH53-20x24 1-1/4" 1-1/2" 2.38" 3.25" -
4SH53-24x24 1-1/2" 1-1/2" 2.38" 4.00" 14N73-24-24

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
