4SH80-20x20 Couplamatic Grip Crimp 4SH Series Coupling - Extra Heavy Duty Flange - Straight - 1-1/4" Hose ID - 1-1/4" Flange Size (for use on Caterpillar® Equipment)

4SH80-20x20 by Couplamatic | Grip Crimp 4SH Series Coupling Flange | 1-1/4" Hose ID x 1-1/4" Extra Heavy Duty Flange Size | Straight | Trivalent Zinc Plating | for use on Caterpillar® Equipment

Save $36.25 Save $36.25
$90.62
$90.62 - $90.62
$90.62
$54.37
$54.37 - $54.37
$54.37

Couplamatic Systems Inc.
Grip Crimp 4SH Series - No-Skive Couplings - Extra Heavy Duty Flange - Straight (For use on Caterpillar® Equipment)
Specifications for Variant SKU: 4SH80-20x20 Couplamatic
Series: 4SH Series
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Caterpillar Flange, 1-1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 4SH Series
Description:
  • The 4SH Series Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating

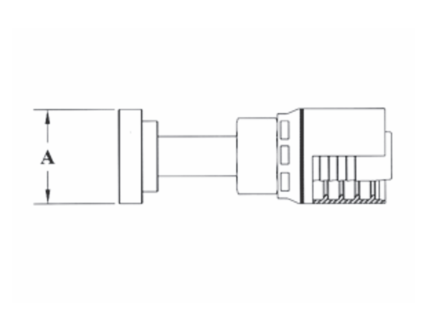

Part Number Hose ID Flange Size A-DiaInches
4SH80-20x20 1-1/4" 1-1/4" 2.12"
4SH80-24x24 1-1/2" 1-1/2" 2.50"
