4SH82-32x32 Couplamatic Grip Crimp 4SH Series Coupling - Extra Heavy Duty Flange - 90° Bend - 2" Hose ID - 2" Flange Size (for use on Caterpillar® Equipment)

4SH82-32x32 by Couplamatic | Grip Crimp 4SH Series Coupling Flange | 2" Hose ID x 2" Extra Heavy Duty Flange Size | 90° Elbow | Trivalent Zinc Plating | for use on Caterpillar® Equipment

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Couplamatic Systems Inc.
Grip Crimp 4SH Series - No-Skive Couplings - Extra Heavy Duty Flange - 90° Bend For use on Caterpillar® Equipment
Specifications for Variant SKU: 4SH82-32x32 Couplamatic
Series: 4SH Series
Shape (Orientation): 90 Degree
Ends Configuration: 2in Caterpillar Flange, 2in Hose Barb
Material(s): Steel
Compatible with the following Series: 4SH Series
Description:
  • The 4SH Series Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

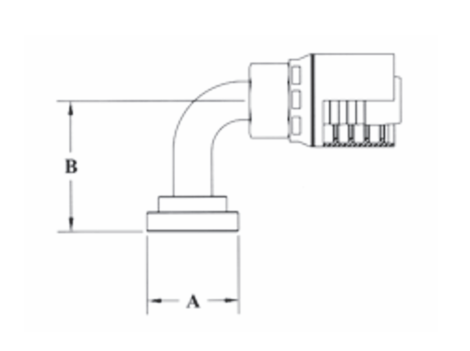

    Part Number Hose ID Flange Size A-DiaInches B-Drop
    4SH82-20x20 1-1/4" 1-1/4" 2.12" 3.38"
    4SH82-24x24 1-1/2" 1-1/2" 2.50" 4.00"
    4SH82-32x32 2" 2" 3.12" 5.50"
