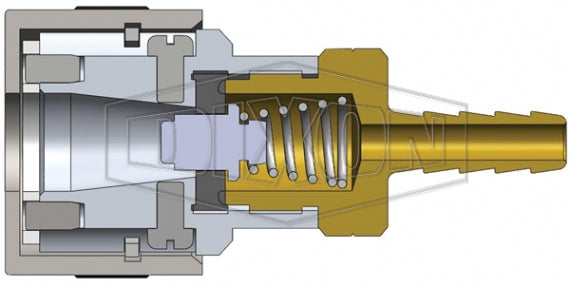

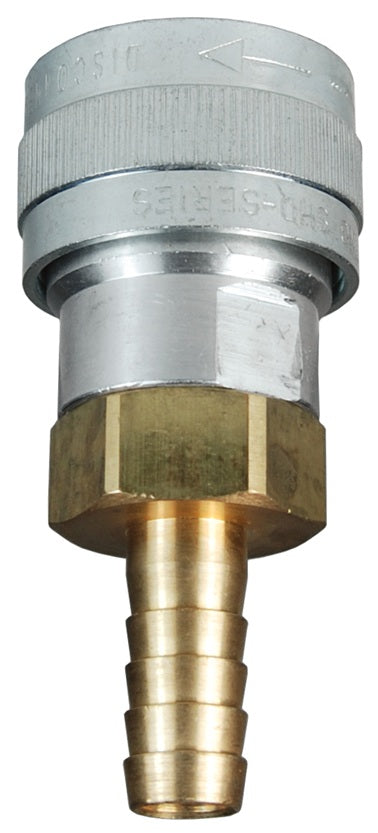

4SHDS3 by Dixon Valve | Pneumatic Quick Disconnect Coupling | SHD-Series | Hose Barb | 3/8" Hose ID x 1/2" Twist-Lock Interchange | Socket | Nitrile Seal | Aluminium

Save $1.54

$22.91

$22.91 - $22.91

$22.91

$21.37

$21.37 - $21.37

$21.37

Dixon Valve & Coupling
Pneumatic Coupling: SHD-Series Twist-Lock Interchange Coupler (Standard Hose Barb)

Quantity

Specifications for Variant SKU: 4SHDS3 Dixon
Series:	SHD-Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female Schrader QD Interchange, 3/8in Hose Barb
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber

Compatibility & Interchange:	Schrader Twist-Lock Interchange Parker Twist-Lock, Tomco Series-TL, Foster SHD
Construction:	Machined components are manufactured using solid bar stock. Stainless steel toggle-pawls and springs. Carbon steel retaining rings. Steel componentry is plated using ROHS Compliant Trivalent Chrome. Adapter components are constructed of brass. Sleeves are constructed of steel. Nitrile (Nitrile Rubber) seals standard. Providing a temperature range of -40°F to 250°F (-40°C to 121°C).
Safety Notes:	It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure. Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application. Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

SHD-Series \| Twist-Lock Interchange Coupler (Standard Hose Barb)

Part Number	Coupling Type	Body Size	Hose ID	Material	Length	Max. OD	Hex	Max. Operating Pressure	Burst Pressure
2SHDS2	Socket/Female	1/4"	1/4"	Aluminum	2.54" (64.5mm)	1.12" (28.4mm)	11/16"	300 PSI (20 bar)	6500 PSI (448 bar)
2SHDS3	Socket/Female	1/4"	3/8"	Aluminum	2.67" (67.8mm)	1.12" (28.4mm)	11/16"	300 PSI (20 bar)	6500 PSI (448 bar)
4SHDS3	Socket/Female	1/2"	3/8"	Aluminum	2.99" (76.0mm)	1.50" (38.1mm)	1-1/8"	300 PSI (20 bar)	13400 PSI (924 bar)
4SHDS4	Socket/Female	1/2"	1/2"	Aluminum	4.23" (107.4mm)	1.50" (38.1mm)	1-1/8"	300 PSI (20 bar)	13400 PSI (924 bar)

SHD-Series \| Twist-Lock Interchange Plug (Standard Hose Barb)

Part Number	Coupling Type	Body Size	Hose ID	Material	Length	Maximum OD	Hex	Max. Operating Pressure	Burst Pressure
SHD2S2	Plug/Male	1/4"	1/4"	Steel	2.03" (51.6mm)	0.65" (16.5mm)	-	300 PSI (20 bar)	6500 PSI (448 bar)
SHD2S3	Plug/Male	1/4"	3/8"	Steel	2.22" (56.4mm)	0.65" (16.5mm)	-	300 PSI (20 bar)	6500 PSI (448 bar)
SHD4S3	Plug/Male	1/2"	3/8"	Steel	2.34" (59.4mm)	0.80" (20.3mm)	-	300 PSI (20 bar)	13400 PSI (924 bar)
SHD4S4	Plug/Male	1/2"	1/2"	Steel	2.53" (64.3mm)	0.80" (20.3mm)	-	300 PSI (20 bar)	13400 PSI (924 bar)
