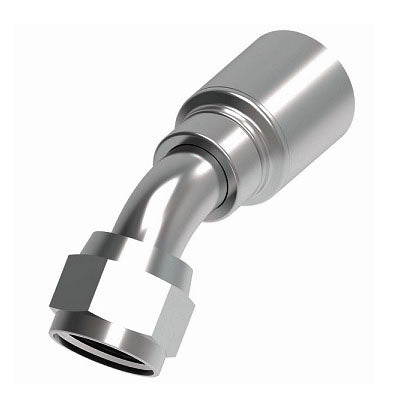

4T6FJA5 Synflex Optimum by Danfoss Eaton | 4TA Fitting for Thermoplastic Hydraulic Hose | -05 JIC/37° Female Swivel 45° Tube Elbow Fitting for -06 Hose | Carbon Steel

4T6FJA5 Synflex Optimum by Danfoss | 4TA Fitting for Thermoplastic Hydraulic Hose | -05 JIC/37° Female Swivel 45° Tube Elbow Fitting for -06 Hose | Carbon Steel

$22.64 - $22.64
$22.64
$22.64 - $22.64
$22.64

Synflex Optimum by Danfoss
4TA Fitting: JIC/37° Female Swivel 45° Tube Elbow

Synflex Optimum fittings are optimized to work together with Synflex Optimum thermoplastic hydraulic hoses.
Specifications for Variant SKU: 4T6FJA5 Danfoss
Shape (Orientation): 45 Degree
Material(s): Carbon Steel
Material:
  • Zinc Plated Carbon Steel
  • Corrosion resistant Dura-Kote™ plating comes standard in Synflex Optimum fittings. Dura-Kote plating delivers up 3x the corrosion protection on carbon steel fittings as compared to competitive hose fittings. Provides up to 1,000 hours of corrosion resistance.
Features:
  • Single Piece Design - Synflex Optimum 4TA fittings follow a simple one-piece design that reduces matching errors during assembly, eliminates brazing failure risks and lowers assembly time
  • Captive Nut - A captive nut eliminates the weak spots found in other fittings. And it evenly distributes the force applied during assembly, helping prevent cracks and leaks that halt workflows and lead to unplanned downtime.
  • Easy Assembly - Easier insertion, less force needed during assembly to push fitting onto hose.
  • Smaller Profile - They have a compact design and smaller profile making it easier for routing and assembly installation, especially in tight spaces.
  • Easy Identification - Part numbers printed on fittings for easy identification.
Part Number Fitting Size For use with Hose Size Thread
4TA4FJA3 -03 -04 7/16-20
4TA4FJA4 -04 -04 7/16-20
4T6FJA5 -05 -06 9/16-18
4TA6FJA6 -06 -06 9/16-18
4TA8FJA6 -06 -08 7/8-14
4TA8FJA8 -08 -08 3/4-16
4TA10FJA8 -08 -10 7/8-14
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
