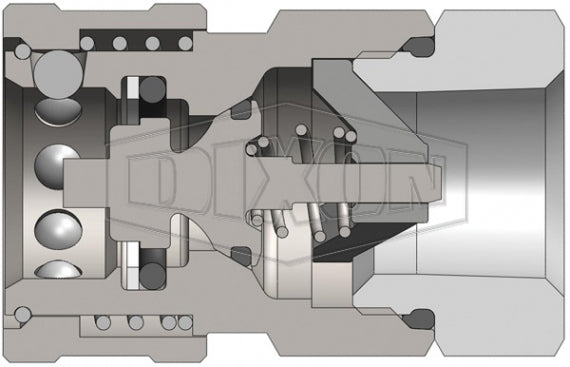

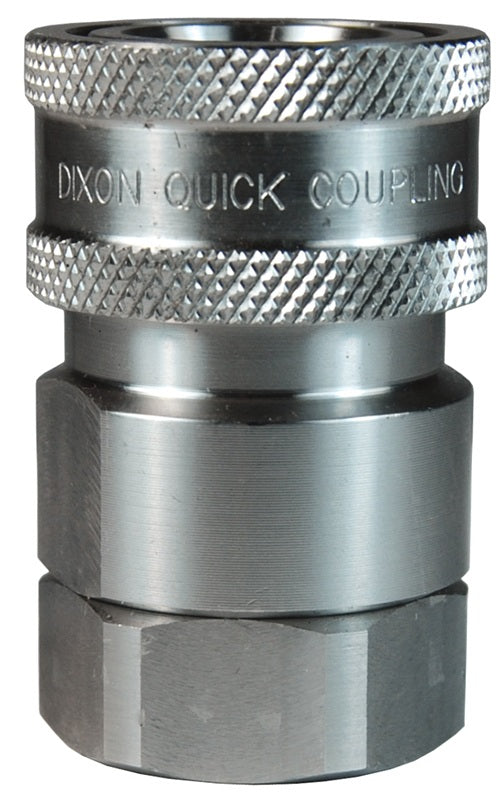

4VF4-SS by Dixon Valve | Hydraulic Quick Disconnect Coupling | V-Series | 1/2" Female NPTF x 1/2" MIL-C-51234 Valved | Socket | Nitrile Seal | 316 Stainless Steel

Save $12.15 Save $12.15
Original price $109.31
Original price $109.31 - Original price $109.31
Original price $109.31
Current price $97.16
$97.16 - $97.16
Current price $97.16

Dixon Valve & Coupling
Hydraulic Coupling: V-Series MIL-C-51234 Valved Coupler (Female Threads)

General purpose hydraulic quick-connect provides superior flow characteristics for a variety of applications.


Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 4VF4-SS Dixon
Series: V-Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Female V-Series QD Interchange, 1/2in Female NPTF
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Compatibility & Interchange:
  • Interchangeable to MIL-C-51234
  • Interchangeable with Snap-Tite H/IH Series and Faster TNV
Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Steel coupler sleeves are hardened to resist deformation and maximize service life.
Seal Components:
  • Nitrile seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C).
  • All couplers incorporate a PTFE anti-extrusion ring to protect the seal components from dynamic impulse damage.
  • 1/4" to 1" valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection.
  • 1-1/4" to 2" valve O-rings are retained by a uniqueseal-groove profile and are field replaceable.
Additional Information:
Rated Pressure Chart | V-Series MIL-C-51234 (Valved Connected)
Body
Size
Steel Coupler/Plug Brass Coupler/Plug 316 Stainless Coupler/Plug
Maximum Working Burst Maximum Working Burst Maximum Working Burst
1/4" 6,500 PSI 450 bar 12,700 PSI 876 bar 2,250 PSI 150 bar 5,000 PSI 345 bar 5,000 PSI 345 bar 10,000 PSI 700 bar
3/8" 4,500 PSI 310 bar 10,500 PSI 700 bar 2,250 PSI 150 bar 5,300 PSI 350 bar 4,000 PSI 275 bar 8,000 PSI 550 bar
1/2" 4,000 PSI 275 bar 9,600 PSI 650 bar 2,000 PSI 130 bar 5,700 PSI 390 bar 3,750 PSI 260 bar 7,500 PSI 500 bar
3/4" 3,500 PSI 240 bar 9,100 PSI 600 bar 2,000 PSI 130 bar 5,300 PSI 350 bar 2,000 PSI 130 bar 7,500 PSI 500 bar
1" 2,000 PSI 130 bar 9,500 PSI 650 bar 1,750 PSI 120 bar 5,000 PSI 345 bar 2,000 PSI 130 bar 5,000 PSI 345 bar
1-1/4" 1,750 PSI 120 bar 5,000 PSI 345 bar 350 PSI 24 bar 1,000 PSI 70 bar 1,500 PSI 100 bar 3,000 PSI 200 bar
1-1/2" 1,500 PSI 100 bar 5,000 PSI 345 bar 350 PSI 24 bar 1,200 PSI 80 bar 1,500 PSI 100 bar 3,000 PSI 200 bar
2" 1,500 PSI 100 bar 4,000 PSI 275 bar 400 PSI 28 bar 1,000 PSI 70 bar 500 PSI 34 bar 1,000 PSI 70 bar

Minimum burst pressure ratings were established under laboratory conditions using a Static Burst Unit (SBU). For high impulse applications and to meet Det Norske Veritas (DNV) compliance, the burst pressure must be divided by four (4) to ensure a 4:1 safety factor during system operation.

V-Series | MIL-C-51234 Valved Coupler (Female Threads)
Part
Number
Coupling
Type
Body
Size
Threads Material Length Max.
OD
Hex
2VF1 Socket/Female 1/4" 1/8" - 27 Female NPTF Steel 1.68"
(42.7mm)
0.99"
(25.1mm)
7/8"
2VF2 Socket/Female 1/4" 1/4" - 18 Female NPTF Steel 1.68"
(42.7mm)
0.99"
(25.1mm)
7/8"
2VF2-B Socket/Female 1/4" 1/4" - 18 Female NPTF Brass 1.68"
(42.7mm)
0.99"
(25.1mm)
7/8"
2VF2-SS Socket/Female 1/4" 1/4" - 18 Female NPTF 316 Stainless 1.68"
(42.7mm)
0.99"
(25.1mm)
7/8"
2VBF2 Socket/Female 1/4" 1/4" - 19 Female BSPP Steel 1.81"
(46.0mm)
0.99"
(25.1mm)
7/8"
2VBF2-B Socket/Female 1/4" 1/4" - 19 Female BSPP Brass 1.81"
(46.0mm)
0.99"
(25.1mm)
7/8"
2VBF2-SS Socket/Female 1/4" 1/4" - 19 Female BSPP 316 Stainless 1.81"
(46.0mm)
0.99"
(25.1mm)
7/8"
2VOF2 Socket/Female 1/4" 7/16" - 20 Female ORB Steel 1.81"
(46.0mm)
0.99"
(25.1mm)
7/8"
3VF3 Socket/Female 3/8" 3/8" - 18 Female NPTF Steel 1.94"
(49.3mm)
1.18"
(30.0mm)
1"
3VF3-B Socket/Female 3/8" 3/8" - 18 Female NPTF Brass 1.94"
(49.3mm)
1.18"
(30.0mm)
1"
3VF3-SS Socket/Female 3/8" 3/8" - 18 Female NPTF 316 Stainless 1.94"
(49.3mm)
1.18"
(30.0mm)
1"
3VBF3 Socket/Female 3/8" 3/8" - 19 Female BSPP Steel 2.01"
(51.1mm)
1.18"
(30.0mm)
1"
3VBF3-B Socket/Female 3/8" 3/8" - 19 Female BSPP Brass 2.01"
(51.1mm)
1.18"
(30.0mm)
1"
3VBF3-SS Socket/Female 3/8" 3/8" - 19 Female BSPP 316 Stainless 2.01"
(51.1mm)
1.18"
(30.0mm)
1"
3VOF3 Socket/Female 3/8" 9/16" - 18 Female ORB Steel 2.01"
(51.1mm)
1.18"
(30.0mm)
1"
3VF4 Socket/Female 3/8" 1/2" - 14 Female NPTF Steel 2.01"
(51.1mm)
1.18"
(30.0mm)
1"
4VF4 Socket/Female 1/2" 1/2" - 14 Female NPTF Steel 2.13"
(54.1mm)
1.36"
(34.5mm)
1-3/16"
4VF4-B Socket/Female 1/2" 1/2" - 14 Female NPTF Brass 2.13"
(54.1mm)
1.36"
(34.5mm)
1-3/16"
4VF4-SS Socket/Female 1/2" 1/2" - 14 Female NPTF 316 Stainless 2.13"
(54.1mm)
1.36"
(34.5mm)
1-3/16"
4VBF4 Socket/Female 1/2" 1/2" - 14 Female BSPP Steel 2.13"
(54.1mm)
1.36"
(34.5mm)
1-3/16"
4VBF4-B Socket/Female 1/2" 1/2" - 14 Female BSPP Brass 2.13"
(54.1mm)
1.36"
(34.5mm)
1-3/16"
4VBF4-SS Socket/Female 1/2" 1/2" - 14 Female BSPP 316 Stainless 2.13"
(54.1mm)
1.36"
(34.5mm)
1-3/16"
4VOF4 Socket/Female 1/2" 3/4" - 16 Female ORB Steel 2.13"
(54.1mm)
1.36"
(34.5mm)
1-3/16"
4VF6 Socket/Female 1/2" 3/4" - 14 Female NPTF Steel 2.13"
(54.1mm)
1.36"
(34.5mm)
1-3/16"
6VF6 Socket/Female 3/4" 3/4" - 14 Female NPTF Steel 2.47"
(62.7mm)
1.67"
(42.4mm)
1-1/2"
6VF6-B Socket/Female 3/4" 3/4" - 14 Female NPTF Brass 2.47"
(62.7mm)
1.67"
(42.4mm)
1-1/2"
6VF6-SS Socket/Female 3/4" 3/4" - 14 Female NPTF 316 Stainless 2.47"
(62.7mm)
1.67"
(42.4mm)
1-1/2"
6VBF6 Socket/Female 3/4" 3/4" - 14 Female BSPP Steel 2.96"
(75.2mm)
1.67"
(42.4mm)
1-1/2"
6VBF6-B Socket/Female 3/4" 3/4" - 14 Female BSPP Brass 2.96"
(75.2mm)
1.67"
(42.4mm)
1-1/2"
6VBF6-SS Socket/Female 3/4" 3/4" - 14 Female BSPP 316 Stainless 2.96"
(75.2mm)
1.67"
(42.4mm)
1-1/2"
6VOF6 Socket/Female 3/4" 1-1/16" - 12 Female ORB Steel 2.96"
(75.2mm)
1.67"
(42.4mm)
1-1/2"
8VF8 Socket/Female 1" 1" - 11-1/2 Female NPTF Steel 2.70"
(68.6mm)
2.06"
(52.3mm)
1-7/8"
8VF8-B Socket/Female 1" 1" - 11-1/2 Female NPTF Brass 2.70"
(68.6mm)
2.06"
(52.3mm)
1-7/8"
8VF8-SS Socket/Female 1" 1" - 11-1/2 Female NPTF 316 Stainless 2.70"
(68.6mm)
2.06"
(52.3mm)
1-7/8"
8VBF8 Socket/Female 1" 1" - 11 Female BSPP Steel 2.97"
(75.4mm)
2.06"
(52.3mm)
1-7/8"
8VBF8-B Socket/Female 1" 1" - 11 Female BSPP Brass 2.97"
(75.4mm)
2.06"
(52.3mm)
1-7/8"
8VBF8-SS Socket/Female 1" 1" - 11 Female BSPP 316 Stainless 2.97"
(75.4mm)
2.06"
(52.3mm)
1-7/8"
8VOF8 Socket/Female 1" 1-5/16" - 12 Female ORB Steel 2.97"
(75.4mm)
2.06"
(52.3mm)
1-7/8"
10VF10 Socket/Female 1-1/4" 1-1/4" - 11-1/2 Female NPTF Steel 3.54"
(89.9mm)
2.19"
(55.6mm)
2"
10VF10-B Socket/Female 1-1/4" 1-1/4" - 11-1/2 Female NPTF Brass 3.54"
(89.9mm)
2.19"
(55.6mm)
2"
10VF10-SS Socket/Female 1-1/4" 1-1/4" - 11-1/2 Female NPTF 316 Stainless 3.54"
(89.9mm)
2.19"
(55.6mm)
2"
10VBF10 Socket/Female 1-1/4" 1-1/4" - 11 Female BSPP Steel 3.54"
(89.9mm)
2.19"
(55.6mm)
2"
10VBF10-B Socket/Female 1-1/4" 1-1/4" - 11 Female BSPP Brass 3.54"
(89.9mm)
2.19"
(55.6mm)
2"
10VBF10-SS Socket/Female 1-1/4" 1-1/4" - 11 Female BSPP 316 Stainless 3.54"
(89.9mm)
2.19"
(55.6mm)
2"
10VOF10 Socket/Female 1-1/4" 1-5/8" - 12 Female ORB Steel 3.54"
(89.9mm)
2.19"
(55.6mm)
2"
12VF12 Socket/Female 1-1/2" 1-1/2" - 11-1/2 Female NPTF Steel 3.27"
(83.1mm)
2.74"
(69.6mm)
2-1/2"
12VF12-B Socket/Female 1-1/2" 1-1/2" - 11-1/2 Female NPTF Brass 3.27"
(83.1mm)
2.74"
(69.6mm)
2-1/2"
12VF12-SS Socket/Female 1-1/2" 1-1/2" - 11-1/2 Female NPTF 316 Stainless 3.27"
(83.1mm)
2.74"
(69.6mm)
2-1/2"
12VBF12 Socket/Female 1-1/2" 1-1/2" - 11 Female BSPP Steel 3.27"
(83.1mm)
2.74"
(69.6mm)
2-1/2"
12VBF12-B Socket/Female 1-1/2" 1-1/2" - 11 Female BSPP Brass 3.27"
(83.1mm)
2.74"
(69.6mm)
2-1/2"
12VBF12-SS Socket/Female 1-1/2" 1-1/2" - 11 Female BSPP 316 Stainless 3.27"
(83.1mm)
2.74"
(69.6mm)
2-1/2"
12VOF12 Socket/Female 1-1/2" 1-7/8" - 12 Female ORB Steel 3.27"
(83.1mm)
2.74"
(69.6mm)
2-1/2"
16VF16 Socket/Female 2" 2" - 11-1/2 Female NPTF Steel 3.92"
(99.6mm)
3.83"
(97.3mm)
3-1/2"
16VF16-B Socket/Female 2" 2" - 11-1/2 Female NPTF Brass 3.92"
(99.6mm)
3.83"
(97.3mm)
3-1/2"
16VF16-SS Socket/Female 2" 2" - 11-1/2 Female NPTF 316 stainless 3.92"
(99.6mm)
3.83"
(97.3mm)
3-1/2"
16VBF16 Socket/Female 2" 2" - 11 Female BSPP Steel 3.92"
(99.6mm)
3.83"
(97.3mm)
3-1/2"
16VBF16-B Socket/Female 2" 2" - 11 Female BSPP Brass 3.92"
(99.6mm)
3.83"
(97.3mm)
3-1/2"
16VBF16-SS Socket/Female 2" 2" - 11 Female BSPP 316 Stainless 3.92"
(99.6mm)
3.83"
(97.3mm)
3-1/2"
V-Series | MIL-C-51234 Valved Plug (Female Threads)
Part
Number
Coupling
Type
Body
Size
Threads Material Length Max.
OD
Hex
V2F1 Plug/Male 1/4" 1/8" - 27 Female NPTF Steel 1.62"
(41.1mm)
0.97"
(24.6mm)
7/8"
V2F2 Plug/Male 1/4" 1/4" - 18 Female NPTF Steel 1.62"
(41.1mm)
0.97"
(24.6mm)
7/8"
V2F2-B Plug/Male 1/4" 1/4" - 18 Female NPTF Brass 1.62"
(41.1mm)
0.97"
(24.6mm)
7/8"
V2F2-SS Plug/Male 1/4" 1/4" - 18 Female NPTF 316 Stainless 1.62"
(41.1mm)
0.97"
(24.6mm)
7/8"
V2BF2 Plug/Male 1/4" 1/4" - 19 Female BSPP Steel 1.75"
(44.5mm)
0.97"
(24.6mm)
7/8"
V2BF2-B Plug/Male 1/4" 1/4" - 19 Female BSPP Brass 1.75"
(44.5mm)
0.97"
(24.6mm)
7/8"
V2BF2-SS Plug/Male 1/4" 1/4" - 19 Female BSPP 316 Stainless 1.75"
(44.5mm)
0.97"
(24.6mm)
7/8"
V2OF2 Plug/Male 1/4" 7/16" - 20 Female ORB Steel 1.75"
(44.5mm)
0.97"
(24.6mm)
7/8"
V3F3 Plug/Male 3/8" 3/8" - 18 Female NPTF Steel 1.87"
(47.5mm)
1.10"
(27.9mm)
1"
V3F3-B Plug/Male 3/8" 3/8" - 18 Female NPTF Brass 1.87"
(47.5mm)
1.10"
(27.9mm)
1"
V3F3-SS Plug/Male 3/8" 3/8" - 18 Female NPTF 316 Stainless 1.87"
(47.5mm)
1.10"
(27.9mm)
1"
V3BF3 Plug/Male 3/8" 3/8" - 19 Female BSPP Steel 1.94"
(49.3mm)
1.10"
(27.9mm)
1"
V3BF3-B Plug/Male 3/8" 3/8" - 19 Female BSPP Brass 1.94"
(49.3mm)
1.10"
(27.9mm)
1"
V3BF3-SS Plug/Male 3/8" 3/8" - 19 Female BSPP 316 Stainless 1.94"
(49.3mm)
1.10"
(27.9mm)
1"
V3OF3 Plug/Male 3/8" 9/16" - 18 Female ORB Steel 1.94"
(49.3mm)
1.10"
(27.9mm)
1"
V3F4 Plug/Male 3/8" 1/2" - 14 Female NPTF Steel 1.94"
(49.3mm)
1.10"
(27.9mm)
1"
V4F4 Plug/Male 1/2" 1/2" - 14 Female NPTF Steel 1.99"
(50.5mm)
1.31"
(33.3mm)
1-3/16"
V4F4-B Plug/Male 1/2" 1/2" - 14 Female NPTF Brass 1.99"
(50.5mm)
1.31"
(33.3mm)
1-3/16"
V4F4-SS Plug/Male 1/2" 1/2" - 14 Female NPTF 316 Stainless 1.99"
(50.5mm)
1.31"
(33.3mm)
1-3/16"
V4BF4 Plug/Male 1/2" 1/2" - 14 Female BSPP Steel 1.99"
(50.5mm)
1.31"
(33.3mm)
1-3/16"
V4BF4-B Plug/Male 1/2" 1/2" - 14 Female BSPP Brass 1.99"
(50.5mm)
1.31"
(33.3mm)
1-3/16"
V4BF4-SS Plug/Male 1/2" 1/2" - 14 Female BSPP 316 Stainless 1.99"
(50.5mm)
1.31"
(33.3mm)
1-3/16"
V4OF4 Plug/Male 1/2" 3/4" - 16 Female ORB Steel 1.99"
(50.5mm)
1.31"
(33.3mm)
1-3/16"
V4F6 Plug/Male 1/2" 3/4" - 14 Female NPTF Steel 1.99"
(50.5mm)
1.31"
(33.3mm)
1-3/16"
V6F6 Plug/Male 3/4" 3/4" - 14 Female NPTF Steel 2.31"
(58.7mm)
1.65"
(41.9mm)
1-1/2"
V6F6-B Plug/Male 3/4" 3/4" - 14 Female NPTF Brass 2.31"
(58.7mm)
1.65"
(41.9mm)
1-1/2"
V6F6-SS Plug/Male 3/4" 3/4" - 14 Female NPTF 316 Stainless 2.31"
(58.7mm)
1.65"
(41.9mm)
1-1/2"
V6BF6 Plug/Male 3/4" 3/4" - 14 Female BSPP Steel 2.80"
(71.1mm)
1.65"
(41.9mm)
1-1/2"
V6BF6-B Plug/Male 3/4" 3/4" - 14 Female BSPP Brass 2.80"
(71.1mm)
1.65"
(41.9mm)
1-1/2"
V6BF6-SS Plug/Male 3/4" 3/4" - 14 Female BSPP 316 Stainless 2.80"
(71.1mm)
1.65"
(41.9mm)
1-1/2"
V6OF6 Plug/Male 3/4" 1-1/16" - 12 Female ORB Steel 2.80"
(71.1mm)
1.65"
(41.9mm)
1-1/2"
V8F8 Plug/Male 1" 1" - 11-1/2 Female NPTF Steel 2.60"
(66.0mm)
2.06"
(52.3mm)
1-7/8"
V8F8-B Plug/Male 1" 1" - 11-1/2 Female NPTF Brass 2.60"
(66.0mm)
2.06"
(52.3mm)
1-7/8"
V8F8-SS Plug/Male 1" 1" - 11-1/2 Female NPTF 316 Stainless 2.60"
(66.0mm)
2.06"
(52.3mm)
1-7/8"
V8BF8 Plug/Male 1" 1" - 11 Female BSPP Steel 2.87"
(72.9mm)
2.06"
(52.3mm)
1-7/8"
V8BF8-B Plug/Male 1" 1" - 11 Female BSPP Brass 2.87"
(72.9mm)
2.06"
(52.3mm)
1-7/8"
V8BF8-SS Plug/Male 1" 1" - 11 Female BSPP 316 Stainless 2.87"
(72.9mm)
2.06"
(52.3mm)
1-7/8"
V8OF8 Plug/Male 1" 1-5/16" - 12 Female ORB Steel 2.85"
(72.6mm)
2.06"
(52.3mm)
1-7/8"
V10F10 Plug/Male 1-1/4" 1-1/4" - 11-1/2 Female NPTF Steel 3.41"
(86.6mm)
2.19"
(55.6mm)
2"
V10F10-B Plug/Male 1-1/4" 1-1/4" - 11-1/2 Female NPTF Brass 3.41"
(86.6mm)
2.19"
(55.6mm)
2"
V10F10-SS Plug/Male 1-1/4" 1-1/4" - 11-1/2 Female NPTF 316 Stainless 3.41"
(86.6mm)
2.19"
(55.6mm)
2"
V10BF10 Plug/Male 1-1/4" 1-1/4" - 11 Female BSPP Steel 3.41"
(86.6mm)
2.19"
(55.6mm)
2"
V10BF10-B Plug/Male 1-1/4" 1-1/4" - 11 Female BSPP Brass 3.41"
(86.6mm)
2.19"
(55.6mm)
2"
V10BF10-SS Plug/Male 1-1/4" 1-1/4" - 11 Female BSPP 316 Stainless 3.41"
(86.6mm)
2.19"
(55.6mm)
2"
V10OF10 Plug/Male 1-1/4" 1-5/8" - 12 Female ORB Steel 3.41"
(86.6mm)
2.19"
(55.6mm)
2"
V12F12 Plug/Male 1-1/2" 1-1/2" - 11-1/2 Female NPTF Steel 3.35"
(79.0mm)
2.74"
(69.6mm)
2-1/2"
V12F12-B Plug/Male 1-1/2" 1-1/2" - 11-1/2 Female NPTF Brass 3.35"
(79.0mm)
2.74"
(69.6mm)
2-1/2"
V12F12-SS Plug/Male 1-1/2" 1-1/2" - 11-1/2 Female NPTF 316 Stainless 3.35"
(79.0mm)
2.74"
(69.6mm)
2-1/2"
V12BF12 Plug/Male 1-1/2" 1-1/2" - 11 Female BSPP Steel 3.35"
(79.0mm)
2.74"
(69.6mm)
2-1/2"
V12BF12-B Plug/Male 1-1/2" 1-1/2" - 11 Female BSPP Brass 3.35"
(79.0mm)
2.74"
(69.6mm)
2-1/2"
V12BF12-SS Plug/Male 1-1/2" 1-1/2" - 11 Female BSPP 316 Stainless 3.35"
(79.0mm)
2.74"
(69.6mm)
2-1/2"
V12OF12 Plug/Male 1-1/2" 1-7/8" - 12 Female ORB Steel 3.35"
(79.0mm)
2.74"
(69.6mm)
2-1/2"
V16F16 Plug/Male 2" 2" - 11-1/2 Female NPTF Steel 3.72"
(94.5mm)
3.83"
(97.3mm)
3-1/2"
V16F16-B Plug/Male 2" 2" - 11-1/2 Female NPTF Brass 3.72"
(94.5mm)
3.83"
(97.3mm)
3-1/2"
V16F16-SS Plug/Male 2" 2" - 11-1/2 Female NPTF 316 Stainless 3.72"
(94.5mm)
3.83"
(97.3mm)
3-1/2"
V16BF16 Plug/Male 2" 2" - 11 Female BSPP Steel 3.72"
(94.5mm)
3.83"
(97.3mm)
3-1/2"
V16BF16-B Plug/Male 2" 2" - 11 Female BSPP Brass 3.72"
(94.5mm)
3.83"
(97.3mm)
3-1/2"
V16BF16-SS Plug/Male 2" 2" - 11 Female BSPP 316 Stainless 3.72"
(94.5mm)
3.83"
(97.3mm)
3-1/2"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Shop Parts by Dixon Valve & Coupling
