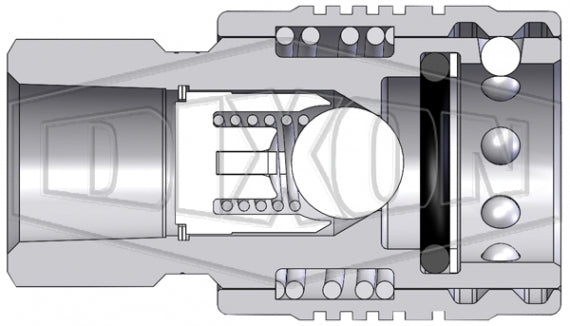

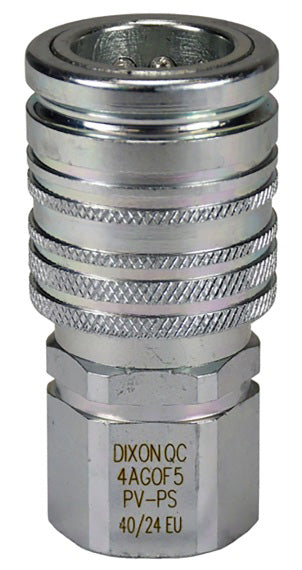

4AGOF5-PV-PS by Dixon Valve | Hydraulic Quick Disconnect Coupling | AG-Series | 5/8" Female ORB x 1/2" Agricultural Interchange Push-Pull Ball Valve | Socket | Nitrile Seal | Steel

Save $2.50

$22.51

$22.51 - $22.51

$22.51

$20.01

$20.01 - $20.01

$20.01

Dixon Valve & Coupling
Hydraulic Coupling: AG-Series Agricultural Interchange Push-Pull Poppet Valve Coupler (Female Threads)

Used on construction equipment, farm implements and most other mobile equipment.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 4AGOF5-PV-PS Dixon
Series:	AG-Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female ISO-5675 Farm (Agricultural) QD Interchange, 5/8in Female O-Ring Boss
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Compatibility & Interchange:	Pioneer Agricultural Interchange Parker/Pioneer 4000 Series Safeway S20
Construction:	Machined components are manufactured using solid bar stock. Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS Compliant Trivalent Chrome. Steel coupler sleeves are hardened to resist deformation and maximize service life. Poppet valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection.
Seal Components:	Nitrile seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C). Couplers have a PTFE Anti-Extrusion ring.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

AG-Series \| Agricultural Interchange Push-Pull Poppet Valve Coupler (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Max. Operating Pressure	Burst Pressure
4AGF4-PV-PS	Socket/Female	1/2"	1/2" - 14 Female NPTF	Steel	2.62" (66.5mm)	1.49" (37.8mm)	1-1/16"	4000 PSI (275 bar)	16500 PSI (1100 bar)
4AGOF4-PV-PS	Socket/Female	1/2"	3/4" - 16 Female ORB	Steel	2.62" (66.5mm)	1.49" (37.8mm)	1-1/16"	4000 PSI (275 bar)	16500 PSI (1100 bar)
4AGOF5-PV-PS	Socket/Female	1/2"	7/8" - 14 Female ORB	Steel	2.66" (66.5mm)	1.49" (37.8mm)	1-1/16"	4000 PSI (275 bar)	16500 PSI (1100 bar)
4AGF6-PV-PS	Socket/Female	1/2"	3/4" - 14 Female NPTF	Steel	2.74" (69.6mm)	1.49" (37.8mm)	1-3/16"	4000 PSI (275 bar)	16500 PSI (1100 bar)
6AGF6-PV-PS	Socket/Female	3/4"	3/4" - 14 Female NPTF	Steel	3.23" (82.0mm)	1.86" (47.2mm)	1-3/16"	-	-

AG-Series \| Agricultural Interchange Poppet Valve Plug (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Max. Operating Pressure	Burst Pressure
AG2F2-PV	Plug/Female	1/4"	1/4" - 18 Female NPTF	Steel	1.42" (36.0mm)	0.84" (21.3mm)	3/4"	4000 PSI (275 bar)	21000 PSI (1500 bar)
AG3F3-PV	Plug/Female	3/8"	3/8" - 18 Female NPTF	Steel	1.61" (40.8mm)	1.05" (26.6mm)	15/16"	4000 PSI (275 bar)	23100 PSI (1600 bar)
AG4F4-PV	Plug/Female	1/2"	1/2" - 14 Female NPTF	Steel	2.08" (52.8mm)	1.21" (30.7mm)	1-1/16"	4000 PSI (275 bar)	16500 PSI (1100 bar)
AG4BF4-PV	Plug/Female	1/2"	1/2" - 14 Female BSPP	Steel	2.08" (52.8mm)	1.21" (30.7mm)	1-1/16"	4000 PSI (275 bar)	16500 PSI (1100 bar)
AG4OF4-PV	Plug/Female	1/2"	3/4" - 16 Female ORB	Steel	2.08" (52.8mm)	1.21" (30.7mm)	1-1/16"	4000 PSI (275 bar)	16500 PSI (1100 bar)
AG4OF5-PV	Plug/Female	1/2"	7/8" - 14 Female ORB	Steel	2.13" (54.1mm)	1.26" (32.0mm)	1-1/16"	4000 PSI (275 bar)	16500 PSI (1100 bar)
AG4F6-PV	Plug/Female	1/2"	3/4" - 14 Female NPTF	Steel	2.30" (58.4mm)	1.32" (33.5mm)	1-3/16"	4000 PSI (275 bar)	16500 PSI (1100 bar)
AG6F6-PV	Plug/Female	3/4"	3/4" - 14 Female NPTF	Steel	2.30" (58.4mm)	1.51" (38.3mm)	1-3/8"	3000 PSI (200 bar)	10300 PSI (700 bar)
AG8F8-PV	Plug/Female	1"	1" - 11-1/2 Female NPTF	Steel	2.71" (68.8mm)	1.76" (44.7mm)	1-5/8"	3000 PSI (200 bar)	13000 PSI (900 bar)
