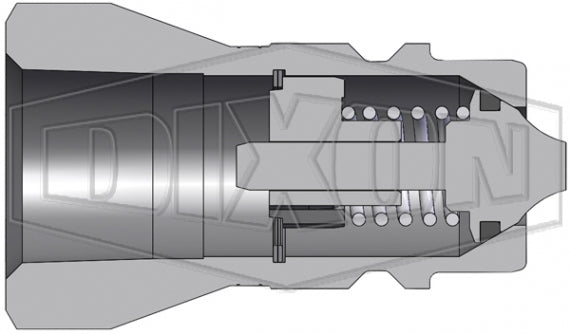

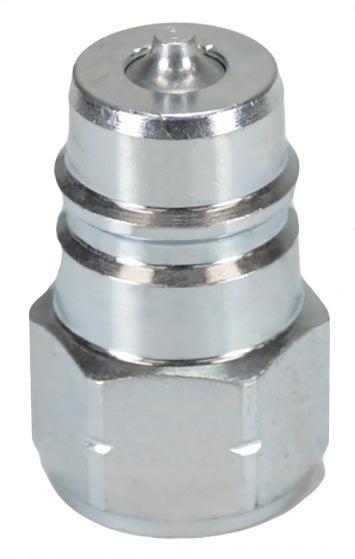

AG3F3-PV by Dixon Valve | Hydraulic Quick Disconnect Coupling | AG-Series | 3/8" Female NPTF x 3/8" Agricultural Interchange Poppet Valve | Plug | Steel
AG3F3-PV by Dixon Valve | Hydraulic Quick Disconnect Coupling | AG-Series | 3/8" Female NPTF x 3/8" Agricultural Interchange Poppet Valve | Plug | Steel
AG3F3-PV by Dixon Valve | Hydraulic Quick Disconnect Coupling | AG-Series | 3/8" Female NPTF x 3/8" Agricultural Interchange Poppet Valve | Plug | Steel

AG3F3-PV by Dixon Valve | Hydraulic Quick Disconnect Coupling | AG-Series | 3/8" Female NPTF x 3/8" Agricultural Interchange Poppet Valve | Plug | Steel

Save $0.49 Save $0.49
$7.34
$7.34 - $7.34
$7.34
$6.85
$6.85 - $6.85
$6.85

Dixon Valve & Coupling
Hydraulic Coupling: AG-Series Agricultural Interchange Poppet Valve Plug (Female Threads)

Used on construction equipment, farm implements and most other mobile equipment.
Specifications for Variant SKU: AG3F3-PV Dixon
Series: AG-Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Male ISO-5675 Farm (Agricultural) QD Interchange, 3/8in Female NPTF
Material(s): Steel
Compatibility & Interchange:
  • Pioneer Agricultural Interchange
  • Parker/Pioneer 4000 Series
  • Safeway S20
Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Steel coupler sleeves are hardened to resist deformation and maximize service life.
  • Poppet valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection.
Seal Components:
  • Nitrile seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C).
  • Couplers have a PTFE Anti-Extrusion ring.
Additional Information:
AG-Series | Agricultural Interchange Push-Pull Poppet Valve Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max.
Operating
Pressure		 Burst
Pressure
4AGF4-PV-PS Socket/Female 1/2" 1/2" - 14 Female NPTF Steel 2.62"
(66.5mm)		 1.49"
(37.8mm)		 1-1/16" 4000 PSI
(275 bar)		 16500 PSI
(1100 bar)
4AGOF4-PV-PS Socket/Female 1/2" 3/4" - 16 Female ORB Steel 2.62"
(66.5mm)		 1.49"
(37.8mm)		 1-1/16" 4000 PSI
(275 bar)		 16500 PSI
(1100 bar)
4AGOF5-PV-PS Socket/Female 1/2" 7/8" - 14 Female ORB Steel 2.66"
(66.5mm)		 1.49"
(37.8mm)		 1-1/16" 4000 PSI
(275 bar)		 16500 PSI
(1100 bar)
4AGF6-PV-PS Socket/Female 1/2" 3/4" - 14 Female NPTF Steel 2.74"
(69.6mm)		 1.49"
(37.8mm)		 1-3/16" 4000 PSI
(275 bar)		 16500 PSI
(1100 bar)
AG-Series | Agricultural Interchange Poppet Valve Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max.
Operating
Pressure		 Burst
Pressure
AG2F2-PV Plug/Female 1/4" 1/4" - 18 Female NPTF Steel 1.42"
(36.0mm)		 0.84"
(21.3mm)		 3/4" 4000 PSI
(275 bar)		 21000 PSI
(1500 bar)
AG3F3-PV Plug/Female 3/8" 3/8" - 18 Female NPTF Steel 1.61"
(40.8mm)		 1.05"
(26.6mm)		 15/16" 4000 PSI
(275 bar)		 23100 PSI
(1600 bar)
AG4F4-PV Plug/Female 1/2" 1/2" - 14 Female NPTF Steel 2.08"
(52.8mm)		 1.21"
(30.7mm)		 1-1/16" 4000 PSI
(275 bar)		 16500 PSI
(1100 bar)
AG4BF4-PV Plug/Female 1/2" 1/2" - 14 Female BSPP Steel 2.08"
(52.8mm)		 1.21"
(30.7mm)		 1-1/16" 4000 PSI
(275 bar)		 16500 PSI
(1100 bar)
AG4OF4-PV Plug/Female 1/2" 3/4" - 16 Female ORB Steel 2.08"
(52.8mm)		 1.21"
(30.7mm)		 1-1/16" 4000 PSI
(275 bar)		 16500 PSI
(1100 bar)
AG4OF5-PV Plug/Female 1/2" 7/8" - 14 Female ORB Steel 2.13"
(54.1mm)		 1.26"
(32.0mm)		 1-1/16" 4000 PSI
(275 bar)		 16500 PSI
(1100 bar)
AG4F6-PV Plug/Female 1/2" 3/4" - 14 Female NPTF Steel 2.30"
(58.4mm)		 1.32"
(33.5mm)		 1-3/16" 4000 PSI
(275 bar)		 16500 PSI
(1100 bar)
AG6F6-PV Plug/Female 3/4" 3/4" - 14 Female NPTF Steel 2.30"
(58.4mm)		 1.51"
(38.3mm)		 1-3/8" 3000 PSI
(200 bar)		 10300 PSI
(700 bar)
AG8F8-PV Plug/Female 1" 1" - 11-1/2 Female NPTF Steel 2.71"
(68.8mm)		 1.76"
(44.7mm)		 1-5/8" 3000 PSI
(200 bar)		 13000 PSI
(900 bar)
