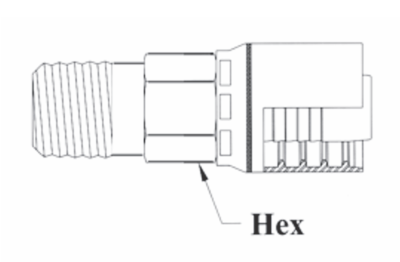

4GCAP-32x32 Couplamatic Grip Crimp 4GC Series Coupling - NPTF (API Thread) - Male Solid - 2" Hose ID - 2-11-1/2 Thread Size

4GCAP-32x32 by Couplamatic | Grip Crimp 4GC Series Coupling | 2" Hose ID x 2-11-1/2 Thread Size NPTF | API Thread Size Male Solid | Straight | Trivalent Zinc Plating

Save $60.85 Save $60.85
$152.13
$152.13 - $152.13
$152.13
$91.28
$91.28 - $91.28
$91.28

Couplamatic Systems Inc.
Grip Crimp 4GC Series - 100R12 No-Skive Couplings - NPTF (API Thread) - Male Solid
Specifications for Variant SKU: 4GCAP-32x32 Couplamatic
Series: 4GC Series
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Male NPTF, 2in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 6 Series
4GC Series — 100R12 No-Skive

4GCAP Grip Crimp 4GC Series Coupling — NPTF, Male Solid, Straight

4GCAP is the NPTF, Male Solid, Straight configuration of the Grip Crimp 4GC Series, terminating SAE 100R12 four spiral hose.

1

What are the main product features?
  • The 4GC Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully
  • Trivalent Zinc Plating
  • No skive required — terminates spiral hose without stripping the cover.
  • Four spiral construction — built for SAE 100R12 pressures and impulse cycles.
2

Which sizes are available?
Part Number Hose ID Pipe Size Thread Size Hex Size
4GCAP-32x32 2" 2" 2-11-1/2 2-1/2"
3

Which hose does this coupling terminate?

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
