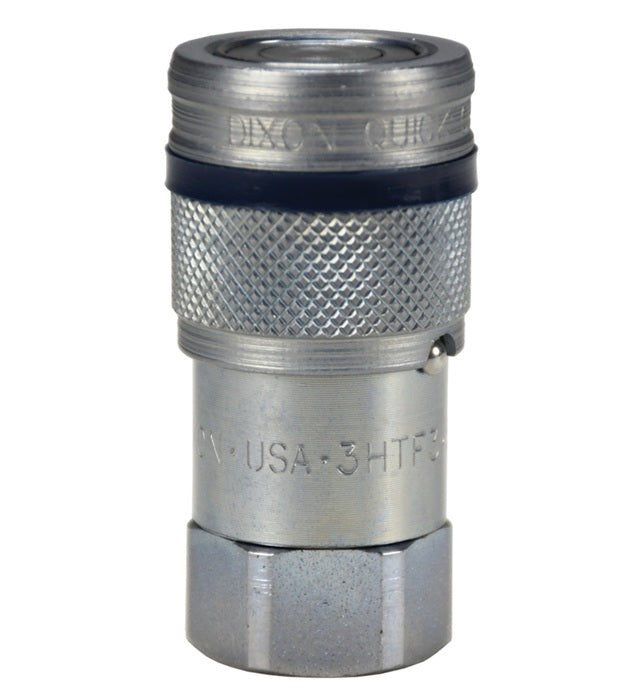

4HTZF4 by Dixon Valve | Hydraulic Quick Disconnect Coupling | HTZ-Series | ISO16028 Connect Under Pressure Flush Face Coupler | 1/2" Female NPTF x 1/2" Body Size | Socket | Steel
4HTZF4 by Dixon Valve | Hydraulic Quick Disconnect Coupling | HTZ-Series | ISO16028 Connect Under Pressure Flush Face Coupler | 1/2" Female NPTF x 1/2" Body Size | Socket | Steel
4HTZF4 by Dixon Valve | Hydraulic Quick Disconnect Coupling | HTZ-Series | ISO16028 Connect Under Pressure Flush Face Coupler | 1/2" Female NPTF x 1/2" Body Size | Socket | Steel

4HTZF4 by Dixon Valve | Hydraulic Quick Disconnect Coupling | HTZ-Series | ISO16028 Connect Under Pressure Flush Face Coupler | 1/2" Female NPTF x 1/2" Body Size | Socket | Steel

Save $2.74 Save $2.74
$68.73
$68.73 - $68.73
$68.73
$65.99
$65.99 - $65.99
$65.99

Dixon Valve & Coupling

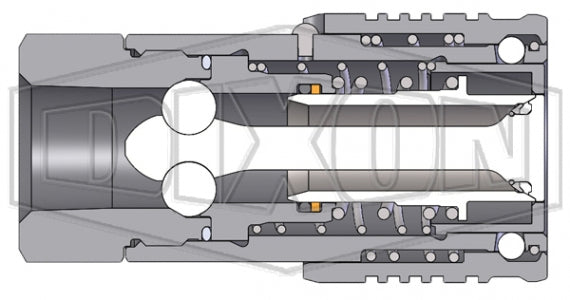

Hydraulic Coupling: HTZ-Series ISO16028 Connect Under Pressure Flush Face Coupler (Female Threads)

For use with HT or HTE series plugs.
Specifications for Variant SKU: 4HTZF4 Dixon
Series: HTZ-Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Female ISO-16028 Flush Face QD Interchange, 1/2in Female NPTF
Material(s): Steel
Compatibility & Interchange:
  • Interchangeable to ISO16028.
  • For use with HT or HTE series plugs.
  • Connectable with trapped pressure on HTZ half only.
Construction:
  • Machined components are manufactured using solid steel or 316 stainless steel bar stock.
  • Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS compliant zinc nickel for corrosion resistance.
  • Steel coupler sleeves are hardened to resist deformation and maximize service life.
  • Steel plugs are hardened to provide resistance to brinelling during impulse service.
Seal Components:
  • 1/2"plugs have molded polyurethane valve seals, with a temperature range of -65°F to 212°F (-54°C to 100°C).
  • Couplers have a polyurethane valve stem O-ring, with a temperature range of -65°F to 212°F (-54°C to 100°C).
  • Ancillary coupler and plug seals are Nitrile with a temperature range of -40°F to 250°F (-40°C to 121°C).
  • PTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage.
Additional Information:
HTZ-Series | ISO 16028 Connect Under Pressure Flushface Coupler Rated Pressure Chart
Body Size Steel Coupler/Plug Coupled 316 SS Coupler/Plug Coupled Steel Coupler Uncoupled Steel Plug Uncoupled
Max.
Working		 Burst Max.
Working		 Burst Max.
Working		 Burst Max.
Working		 Burst
1/2" 5,000 PSI
(345 bar)		 20,000 PSI
(1,379 bar)		 3,400 PSI
(234 bar)		 17,000 PSI
(1,172 bar)		 5,000 PSI
(345 bar)		 20,000 PSI
(1,379 bar)		 5,000 PSI
(345 bar)		 20,000 PSI
(1,379 bar)
HTZ-Series | ISO16028 Connect Under Pressure Flush Face Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex
4HTZF4 Socket/Female 1/2" 1/2" -14 Female NPTF Steel 3.00"
(76.20mm)		 1.54"
(39.12mm)		 1-3/16"
4HTZF6 Socket/Female 1/2" 3/4" - 14 Female NPTF Steel 3.22"
(81.79mm)		 1.65"
(41.91mm)		 1-1/2"
4HTZOF4 Socket/Female 1/2" 3/4" - 16 Female ORB Steel 3.00"
(76.20mm)		 1.54"
(39.12mm)		 1-3/16"
4HTZOF5 Socket/Female 1/2" 7/8" - 14 Female ORB Steel 3.22"
(81.79mm)		 1.65"
(41.91mm)		 1-1/2"
4HTZOF6 Socket/Female 1/2" 1-1/16" - 12 Female ORB Steel 3.22"
(81.79mm)		 1.65"
(41.91mm)		 1-1/2"
HTE-Series | ISO 16028 Connect Under Pressure Flushface Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex
HTE3F3 Plug/Male 3/8" 3/8" - 18 Female NPTF Steel 3.21"
(81.4mm)		 1.31"
(33.3mm)		 1-3/16"
HTE3F4 Plug/Male 3/8" 1/2" - 14 Female NPTF Steel 3.25"
(82.6mm)		 1.30"
(33.0mm)		 1-1/8"
HTE3BF4 Plug/Male 3/8" 1/2" - 14 Female BSPP Steel 3.25"
(82.6mm)		 1.30"
(33.0mm)		 1-1/8"
HTE3OF4 Plug/Male 3/8" 3/4" - 16 Female ORB Steel 3.25"
(82.6mm)		 1.30"
(33.0mm)		 1-1/8"
HTE4F4 Plug/Male 1/2" 1/2" - 14 Female NPTF Steel 3.40"
(86.4mm)		 1.30"
(33.0mm)		 1-3/16"
HTE4BF4 Plug/Male 1/2" 1/2" - 14 Female BSPP Steel 3.40"
(86.4mm)		 1.30"
(33.0mm)		 1-3/16"
HTE4OF4 Plug/Male 1/2" 3/4" - 16 Female ORB Steel 3.40"
(86.4mm)		 1.30"
(33.0mm)		 1-3/16"
HTE4OF5 Plug/Male 1/2" 7/8" - 14 Female ORB Steel 3.40"
(86.4mm)		 1.30"
(33.0mm)		 1-1/2"
HTE4F6 Plug/Male 1/2" 3/4" - 14 Female NPTF Steel 3.60"
(91.4mm)		 1.65"
(41.9mm)		 1-1/2"
HTE4BF6 Plug/Male 1/2" 3/4" - 14 Female BSPP Steel 3.60"
(91.4mm)		 1.65"
(41.9mm)		 1-1/2"
HTE4OF6 Plug/Male 1/2" 1-1/16" - 12 Female ORB Steel 3.60"
(91.4mm)		 1.65"
(41.9mm)		 1-1/2"
HTE5OF5 Plug/Male 5/8" 7/8" - 14 Female ORB Steel 3.75"
(95.3mm)		 1.65"
(41.9mm)		 1-1/2"
HTE5F6 Plug/Male 5/8" 3/4" - 14 Female NPTF Steel 3.75"
(95.3mm)		 1.65"
(41.9mm)		 1-1/2"
HTE5BF6 Plug/Male 5/8" 3/4" - 14 Female BSPP Steel 3.75"
(95.3mm)		 1.65"
(41.9mm)		 1-1/2"
HTE5OF6 Plug/Male 5/8" 1-1/16" - 12 Female ORB Steel 3.75"
(95.3mm)		 1.65"
(41.9mm)		 1-1/2"
HTE6F6 Plug/Male 3/4" 3/4" - 14 Female NPTF Steel 4.25"
(108.0mm)		 1.96"
(49.8mm)		 1-1/2"
HTE6BF6 Plug/Male 3/4" 3/4" - 14 Female BSPP Steel 4.25"
(108.0mm)		 1.96"
(49.8mm)		 1-1/2"
HTE6OF6 Plug/Male 3/4" 1-1/16" - 12 Female ORB Steel 4.25"
(108.0mm)		 1.96"
(49.8mm)		 1-1/2"
HTE6F8 Plug/Male 3/4" 1" - 11-1/2 Female NPTF Steel 4.40"
(111.8mm)		 1.96"
(49.8mm)		 1-3/4"
HTE6BF8 Plug/Male 3/4" 1" - 11 Female BSPP Steel 4.40"
(111.8mm)		 1.96"
(49.8mm)		 1-3/4"
HTE6OF8 Plug/Male 3/4" 1-5/16" - 12 Female ORB Steel 4.40"
(111.8mm)		 1.96"
(49.8mm)		 1-3/4"
HTE8F8 Plug/Male 1" 1" - 11-1/2 Female NPTF Steel 4.88"
(124.0mm)		 1.96"
(49.8mm)		 1-3/4"
HTE8BF8 Plug/Male 1" 1" - 11 Female BSPP Steel 4.88"
(124.0mm)		 1.96"
(49.8mm)		 1-3/4"
HTE8OF8 Plug/Male 1" 1-5/16" - 12 Female ORB Steel 4.88"
(124.0mm)		 1.96"
(49.8mm)		 1-3/4"
HTE8F10 Plug/Male 1" 1-1/4" - 11-1/2 Female NPTF Steel 5.00"
(127.0mm)		 2.47"
(62.7mm)		 2-3/16"
HTE8BF10 Plug/Male 1" 1-1/4" - 11 Female BSPP Steel 5.00"
(127.0mm)		 2.47"
(62.7mm)		 2-3/16"
HTE8OF10 Plug/Male 1" 1-5/8" - 12 Female ORB Steel 5.00"
(127.0mm)		 2.47"
(62.7mm)		 2-3/16"
HT-Series | Correct Connect® Bands
Part NumberBlue Part Number Part NumberOrange Part Number Part NumberGreen Part Number Part NumberYellow Part Number Part NumberRed Part Number Description Body Size
2HTBAND-B 2HTBAND-O 2HTBAND-G 2HTBAND-Y 2HTBAND-R Coupler Band 1/4"
HT2BAND-B HT2BAND-O HT2BAND-G HT2BAND-Y HT2BAND-R Plug Band 1/4"

3HTBAND-B 3HTBAND-O 3HTBAND-G 3HTBAND-Y 3HTBAND-R Coupler Band 3/8"
HT3BAND-B HT3BAND-O HT3BAND-G HT3BAND-Y HT3BAND-R Plug Band 3/8"

4HTBAND-B 4HTBAND-O 4HTBAND-G 4HTBAND-Y 4HTBAND-R Coupler Band 1/2"
HT4BAND-B HT4BAND-O HT4BAND-G HT4BAND-Y HT4BAND-R Plug Band 1/2"

5HTBAND-B 5HTBAND-O 5HTBAND-G 5HTBAND-Y 5HTBAND-R Coupler Band 5/8"
HT5BAND-B HT5BAND-O HT5BAND-G HT5BAND-Y HT5BAND-R Plug Band 5/8"

6HTBAND-B 6HTBAND-O 6HTBAND-G 6HTBAND-Y 6HTBAND-R Coupler Band 3/4"
HT6BAND-B HT6BAND-O HT6BAND-G HT6BAND-Y HT6BAND-R Plug Band 3/4"

8HTBAND-B 8HTBAND-O 8HTBAND-G 8HTBAND-Y 8HTBAND-R Coupler Band 1"
HT8BAND-B HT8BAND-O HT8BAND-G HT8BAND-Y HT8BAND-R Plug Band 1"
