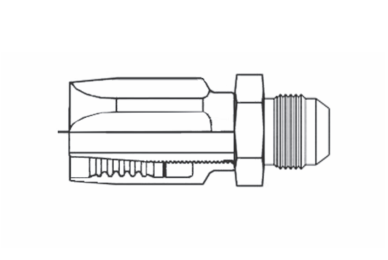

4R5-4MJ Couplamatic Reusable Coupling - R5 Reusables - JIC 37° - Male Solid - 3/16" Hose ID - 7/16-20 Thread Size

4R5-4MJ by Couplamatic | R5 Reusable Coupling | 3/16" Hose ID x 7/16-20 Thread Size JIC 37° Male Solid | Straight | Trivalent Zinc Plating

Save $7.33 Save $7.33
$18.32
$18.32 - $18.32
$18.32
$10.99
$10.99 - $10.99
$10.99

Couplamatic Systems Inc.
Reusable Couplings - 100R5 - R5 Reusables - JIC 37° - Male Solid
Specifications for Variant SKU: 4R5-4MJ Couplamatic
Series: Reusable Fitting Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Male JIC, 3/16in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 57MB-2 Series
Reusable — Field Attachable

5R5 Reusable Coupling — JIC 37°, Male Solid, Straight

5R5 is the JIC 37°, Male Solid, Straight configuration of the Reusable Coupling, terminating 100R1 and 100R2 thin cover hose, or 100R5 textile cover hose, depending on the series.

1

What are the main product features?
  • Non-Mandrel and No Skive
  • Trivalent Zinc Plating
  • 1. Screw socket onto hose (left hand thread) until hose bottoms. Back out 1/4 turn.
  • 2. Lubricate insert threads and I.D. of hose. Screw insert into socket until insert hex touches socket.
  • Field attachable — assembles with hand tools; no crimp machine needed.
  • Reusable — the coupling can be removed and reinstalled on a new length of hose.
  • Ideal for field repair — keeps equipment running where a crimper is not available.
2

Which sizes are available?
Part Number Hose ID Hose Dash Size Thread Size Tube OD Hose Type
4R5-4MJ 3/16" -04 7/16-20 1/4" 100R5
5R5-5MJ 1/4" -05 1/2-20 5/16" 100R5
8R5-8MJ 13/32" -08 3/4-16 1/2" 100R5
