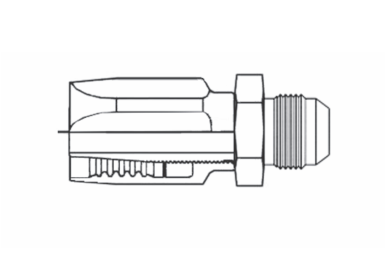

5R5-5MJ Couplamatic Reusable Coupling - R5 Reusables - JIC 37° - Male Solid - 1/4" Hose ID - 1/2-20 Thread Size

5R5-5MJ by Couplamatic | R5 Reusable Coupling | 1/4" Hose ID x 1/2-20 Thread Size JIC 37° Male Solid | Straight | Trivalent Zinc Plating

$13.33 - $13.33
$13.33
$13.80
$13.80 - $13.80
$13.80

Couplamatic Systems Inc.
Reusable Couplings - 100R5 - R5 Reusables - JIC 37° - Male Solid
Specifications for Variant SKU: 5R5-5MJ Couplamatic
Series: Reusable Fitting Series
Shape (Orientation): Straight
Ends Configuration: 5/8in Male JIC, 1/4in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 57MB-2 Series
Description:
  • Non-Mandrel and No Skive.
  • Trivalent Zinc Plating.
  • 1. Screw socket onto hose (left hand thread) until hose bottoms. Back out 1/4 turn.
  • 2. Lubricate insert threads and I.D. of hose. Screw insert into socket until insert hex touches socket.
Part Number Hose ID Hose Dash Size Thread Size Tube OD Hose Type
4R5-4MJ 3/16" -04 7/16-20 1/4" 100R5
5R5-5MJ 1/4" -05 1/2-20 5/16" 100R5
8R5-8MJ 13/32" -08 3/4-16 1/2" 100R5
