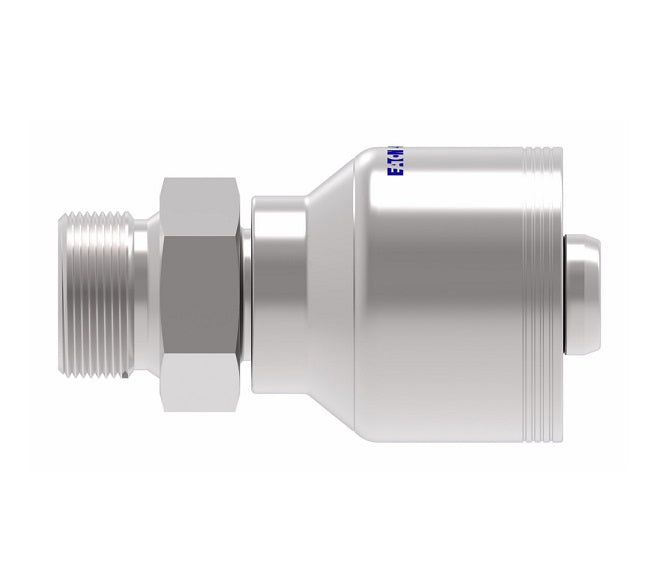

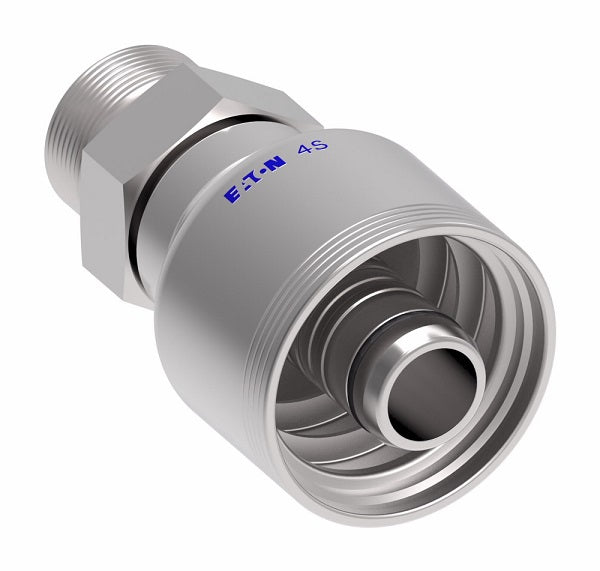

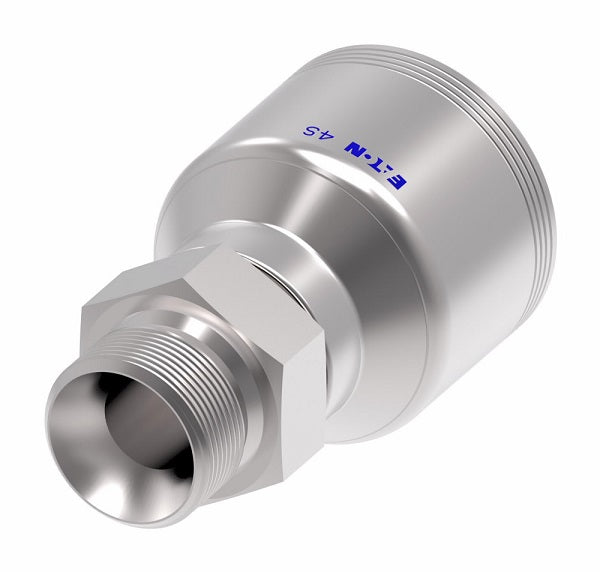

4S12BP12 Aeroquip by Danfoss | 4 Wire 4S BSP Male Parallel Rigid 60° Cone Seat (BP) Crimp Fitting | -12 Male BSPP Rigid x -12 Hose Barb | Steel

4S12BP12 Aeroquip by Danfoss | 4 Wire 4S BSP Male Parallel Rigid 60° Cone Seat (BP) Crimp Fitting | -12 Male BSPP Rigid x -12 Hose Barb | Steel

Name: 4S12BP12 Aeroquip by Danfoss | 4 Wire 4S BSP Male Parallel Rigid 60° Cone Seat (BP) Crimp Fitting | -12 Male BSPP Rigid x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 4S12BP12 Danfoss
Price: 57.7 USD
Availability: InStock

$57.70 - $57.70

$57.70

$57.70 - $57.70

$57.70

Aeroquip® by Danfoss
4 Wire 4S BSP Male Parallel Rigid 60° Cone Seat Crimp Fitting (BP) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4S12BP12 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male BSPP, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF
Note:
"G" as part of thread size is ISO designation for parallel thread.


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	Hex 1
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	Hex 1
4S12BP12	-12	19	-12	G 3/4-14	3.13"	1.71"	0.56"	32,0mm
4S16BP16	-16	25	-16	G 1-11	3.53"	1.97"	0.75"	41,0mm
4S20BP20	-20	31	-20	G 1-1/4-11	4.32"	2.15"	0.99"	50,0mm
