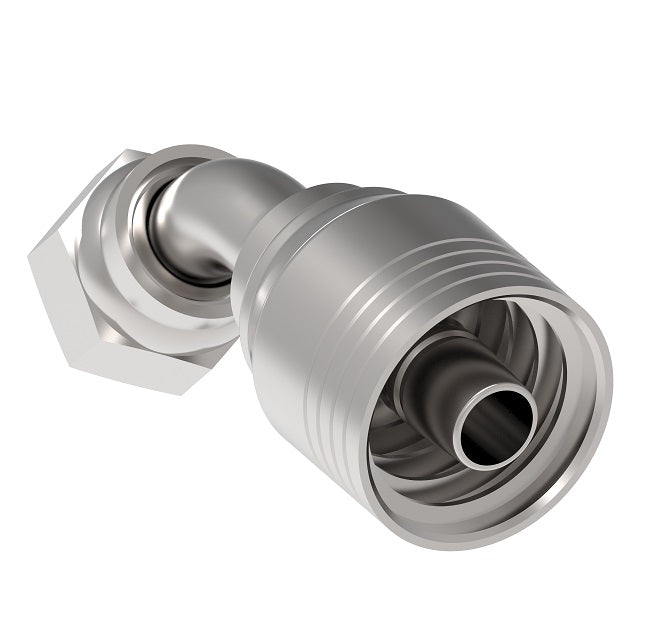

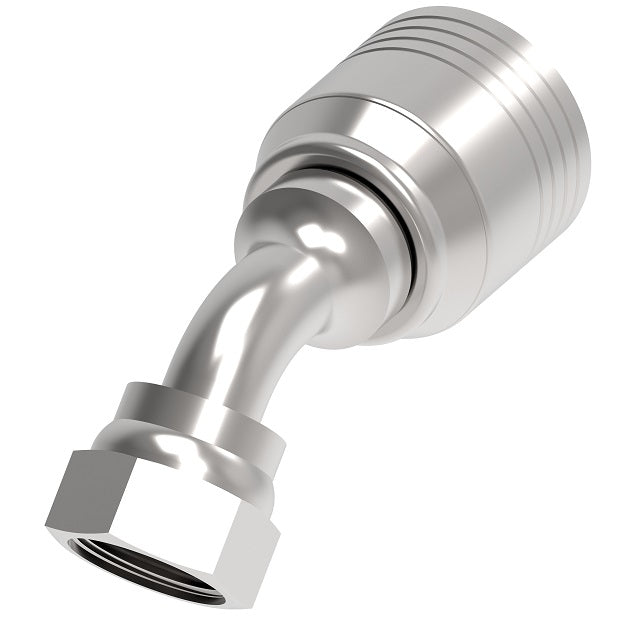

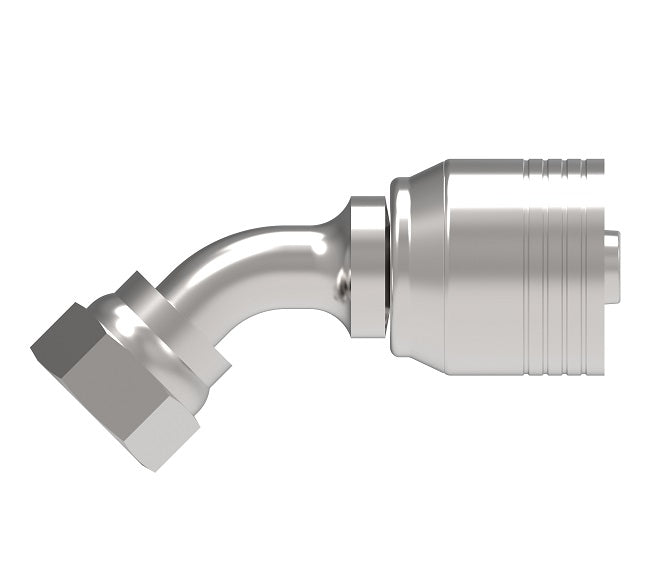

4S12FRA12 Aeroquip by Danfoss | 4 Wire Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel

4S12FRA12 Aeroquip by Danfoss | 4 Wire Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel

Name: 4S12FRA12 Aeroquip by Danfoss | 4 Wire Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -12 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 4S12FRA12 Danfoss
Price: 101.06 USD
Availability: InStock

$101.06 - $101.06

$101.06

$101.06 - $101.06

$101.06

Aeroquip® by Danfoss
4 Wire 4S Female ORS Swivel (FRA) - 45° Swivel

Specifications for Variant SKU: 4S12FRA12 Danfoss
Brand:	Aeroquip
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series \| EC600 Series \| H430 Series \| H430R Series \| EC525 Series \| H471 Series \| H464 Series \| H485 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Dash Size	DN	Hose Dash Size	Thread	A	D	EØ	H	Hex 1
4S8FRA8	-08	12	-08	13/16-16	2.86"	1.79"	0.36"	0.59"	15/16
4S12FRA12	-12	19	-12	1-3/16-12	-	-	-	-	-
4S16FRA16	-16	25	-16	1-7/16-12	-	-	-	-	-
