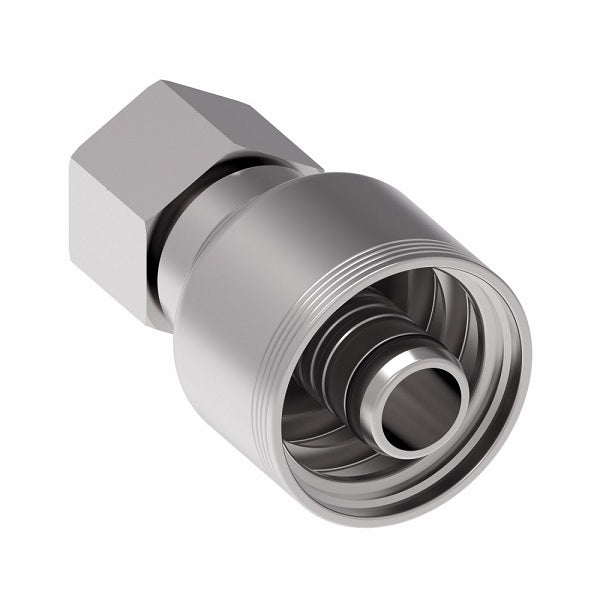

4S16BF12 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat (BF) Crimp Fitting | -16 Female BSPP Swivel x -12 Hose Barb | Steel
4S16BF12 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat (BF) Crimp Fitting | -16 Female BSPP Swivel x -12 Hose Barb | Steel
4S16BF12 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat (BF) Crimp Fitting | -16 Female BSPP Swivel x -12 Hose Barb | Steel
4S16BF12 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat (BF) Crimp Fitting | -16 Female BSPP Swivel x -12 Hose Barb | Steel

4S16BF12 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat (BF) Crimp Fitting | -16 Female BSPP Swivel x -12 Hose Barb | Steel

$108.20 - $108.20
$108.20
$108.20 - $108.20
$108.20

Aeroquip® by Danfoss
4 Wire 4S Female BSPP Swivel 60° Cone Seat Crimp Fitting (BF) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S16BF12 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1in Female BSPP, 3/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Note:
  • "G" as part of thread size is ISO designation for parallel thread.
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash Hex 1
Dash Size DN Dash Size
4S6BF6 -06 - -06 G 3/8 1.83" 0.83" 0.26" 0.87"
4S8BF8 -08 - -08 G 1/2 2.11" 0.94" 0.38" 1.06"
4S12BF12 -12 19 -12 G 3/4" 2.61" 1.18" 0.56" 32mm
4S16BP12 -16 19 -12 G 1" 2.70" 1.27" 0.56" 41mm
4S16BF16 -16 25 -16 G 1" 2.80" 1.27" 0.76" 41mm
4S20BF16 -20 25 -16 G 1-1/4" 2.85" 1.29" 0.76" 50mm
4S20BF20 -20 31 -20 G 1-1/4" 3.26" 1.29" 0.99" 50mm
4S24BF24 -24 38 -24 G 1-1/2" 4.64" 1.57" 1.22" 55mm
4S32BF32 -32 51 -32 G 2" 4.76" 1.69" 1.66" 70mm
