4S16CTD16 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 22.5° Elbow (CTD) Crimp Fitting | -16 CAT Flange x -16 Hose Barb | Steel

4S16CTD16 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 22.5° Elbow (CTD) Crimp Fitting | -16 CAT Flange x -16 Hose Barb | Steel

Name: 4S16CTD16 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 22.5° Elbow (CTD) Crimp Fitting | -16 CAT Flange x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 4S16CTD16 Danfoss
Price: 130.26 USD
Availability: InStock

$130.26 - $130.26

$130.26

$130.26 - $130.26

$130.26

Aeroquip® by Danfoss

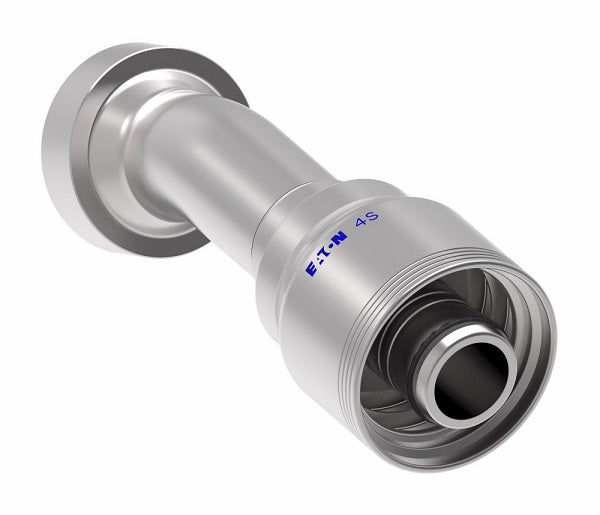

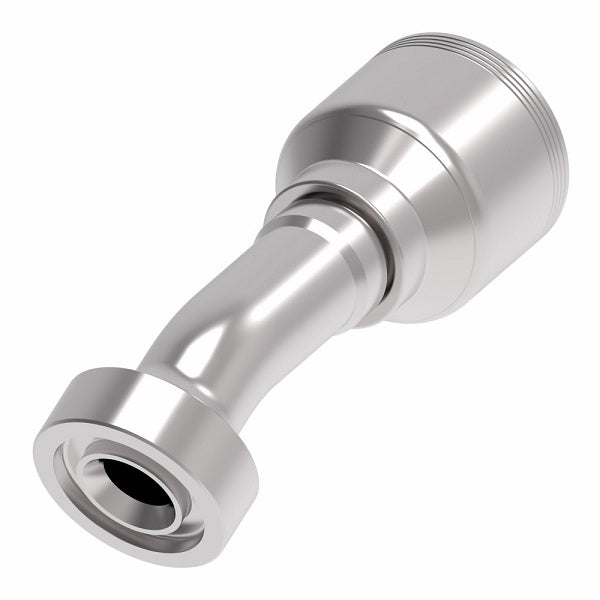

4 Wire 4S CAT Flange Crimp Fitting (CTD) - 22.5° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4S16CTD16 Danfoss
Shape (Orientation):	22.5 Degree
Ends Configuration:	1in CAT Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E&Oslash	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E&Oslash	H
4S12CTD12	-12	19	-12	1.63"	4.97"	3.55"	0.56"	0.54"
4S16CTD16	-16	25	-16	1.87"	5.68"	4.11"	0.76"	0.60"
4S20CTD16	-20	25	-16	2.13"	6.48"	4.91"	0.76"	0.70"
4S24CTD24	-24	38	-24	2.50"	8.97"	5.90"	1.22"	0.76"
4S32CTD32	-32	51	-32	3.13"	10.67"	7.60"	1.66"	0.95"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
