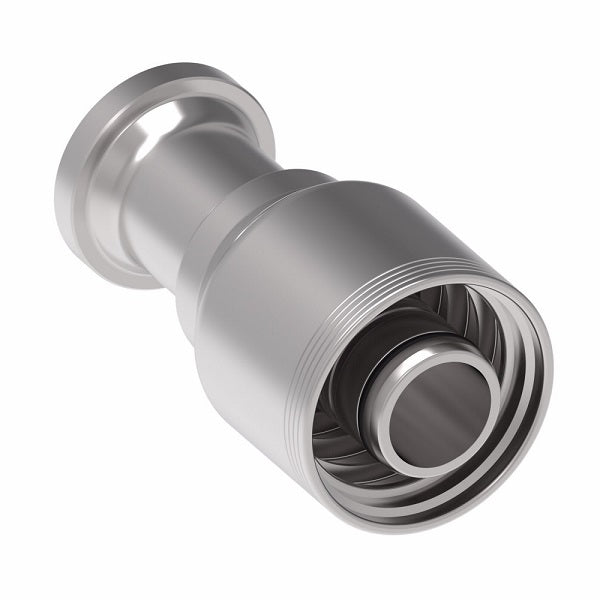

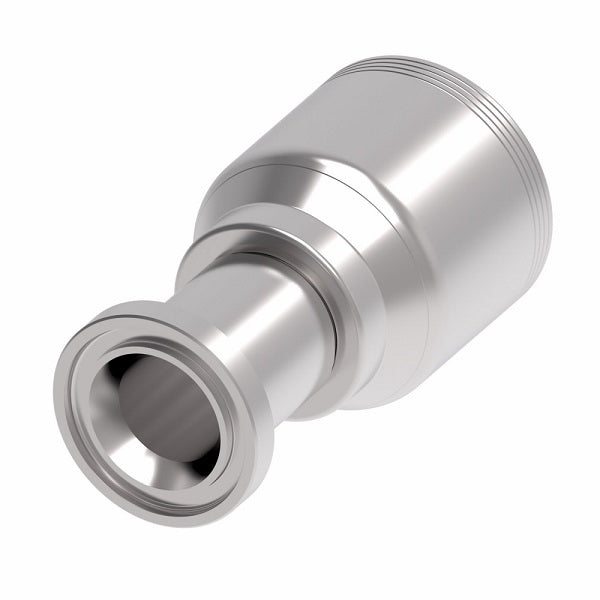

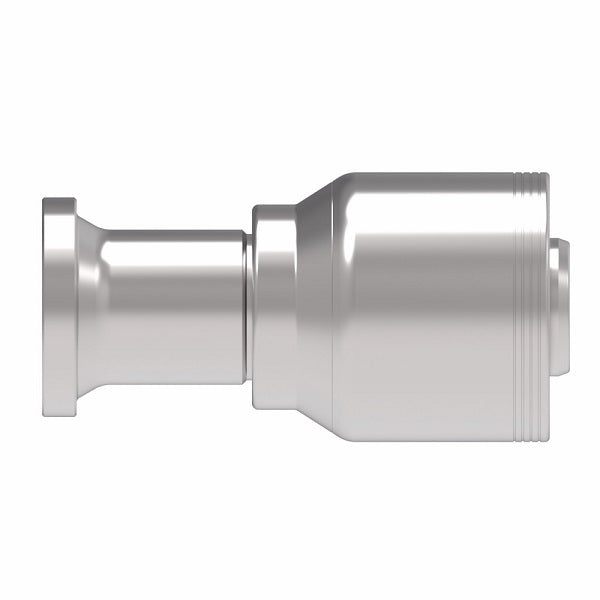

4S16FL20 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange (FL) Crimp Fitting | -16 Code 61 Flange x -20 Hose Barb | Steel
4S16FL20 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange (FL) Crimp Fitting | -16 Code 61 Flange x -20 Hose Barb | Steel | Pack of 10
4S16FL20 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange (FL) Crimp Fitting | -16 Code 61 Flange x -20 Hose Barb | Steel | Pack of 10
4S16FL20 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange (FL) Crimp Fitting | -16 Code 61 Flange x -20 Hose Barb | Steel

4S16FL20 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange (FL) Crimp Fitting | -16 Code 61 Flange x -20 Hose Barb | Steel | Pack of 10

$1,128.80 - $1,128.80
$1,128.80
$1,128.80 - $1,128.80
$1,128.80

Aeroquip® by Danfoss
4 Wire 4S SAE Code 61 Flange Crimp Fitting (FL) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 4S16FL20 Danfoss | 10 |
Shape (Orientation): Straight
Ends Configuration: 1in Code 61 Flange, 1-1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D EØ
Dash Size DN Dash Size
4S8FL8 -08 - -08 1.19" 3.13" 2.06" 0.38"
4S12FL8 -12 - -08 1.50" 3.17" 2.10" 0.38"
4S12FL10 -12 - -10 1.50" 3.13" 2.10" 0.50"
4S12FL12 -12 19 -12 1.50" 3.57" 2.15" 0.56"
4S16FL12 -16 19 -12 1.75" 3.55" 2.13" 0.56"
4S20FL12 -20 19 -12 2.00" 3.85" 2.42" 0.56"
4S16FL16 -16 25 -16 1.75" 3.67" 2.11" 0.76"
4S20FL16 -20 25 -16 2.00" 3.97" 2.41" 0.76"
4S24FL16 -24 25 -16 2.38" 3.83" 2.27" 0.76"
4S16FL20 -16 31 -20 1.75" 4.35" 2.18" 0.99"
4S20FL20 -20 31 -20 2.00" 4.62" 2.45" 0.99"
4S24FL20 -24 31 -20 2.38" 4.20" 2.03" 0.99"
4S32FL20 -32 31 -20 2.81" 4.13" 1.96" 0.99"
4S24FL24 -24 38 -24 2.38" 6.75" 3.68" 1.22"
4S24FL32 -24 - -32 - - - -
4S32FL24 -32 38 -24 2.81" 6.88" 3.81" 1.22"
4S32FL32 -32 51 -32 2.81" 6.99" 3.92" 1.66"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
