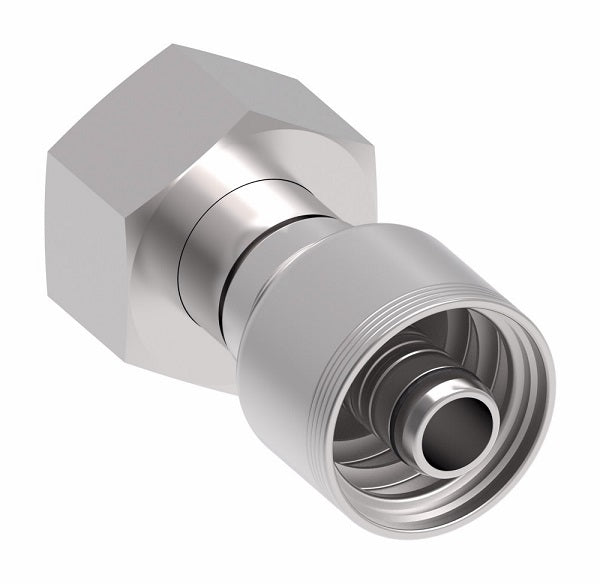

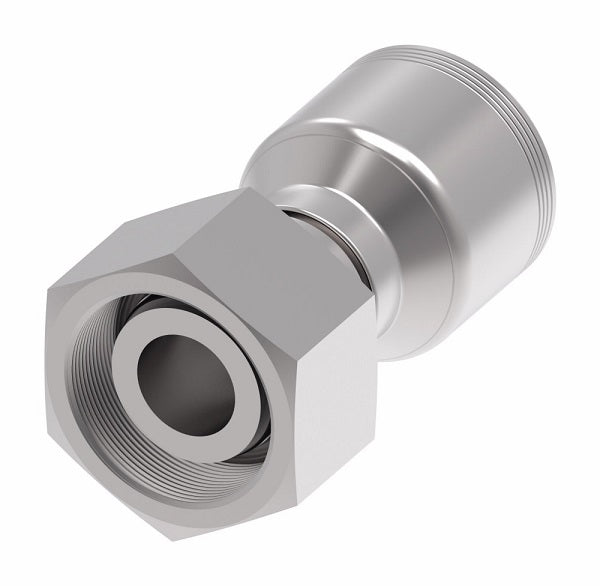

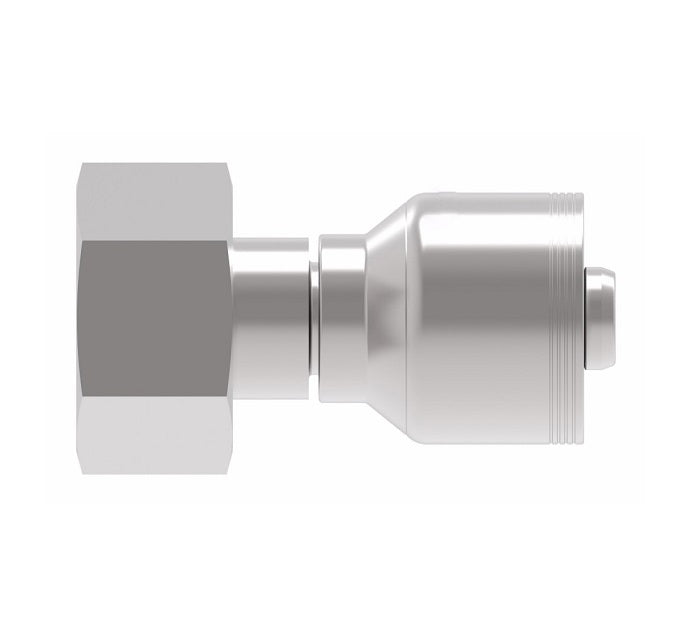

4S20DS12 Aeroquip by Danfoss | 4 Wire 4S Female DKO/DIN 24° Seat Swivel DKO (Heavy) (DS) Crimp Fitting | S25 Female DKO/DIN 24° Seat x -12 Hose Barb | Steel
4S20DS12 Aeroquip by Danfoss | 4 Wire 4S Female DKO/DIN 24° Seat Swivel DKO (Heavy) (DS) Crimp Fitting | S25 Female DKO/DIN 24° Seat x -12 Hose Barb | Steel
4S20DS12 Aeroquip by Danfoss | 4 Wire 4S Female DKO/DIN 24° Seat Swivel DKO (Heavy) (DS) Crimp Fitting | S25 Female DKO/DIN 24° Seat x -12 Hose Barb | Steel
4S20DS12 Aeroquip by Danfoss | 4 Wire 4S Female DKO/DIN 24° Seat Swivel DKO (Heavy) (DS) Crimp Fitting | S25 Female DKO/DIN 24° Seat x -12 Hose Barb | Steel

4S20DS12 Aeroquip by Danfoss | 4 Wire 4S Female DKO/DIN 24° Seat Swivel DKO (Heavy) (DS) Crimp Fitting | S25 Female DKO/DIN 24° Seat x -12 Hose Barb | Steel

$69.46 - $69.46
$69.46
$69.46 - $69.46
$69.46

Aeroquip® by Danfoss
4 Wire 4S Male DKO/DIN 24° Seat Swivel DKO (Heavy) Crimp Fitting (DS) - Straight

S.Rh. DKO (Heavy)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S20DS12 Danfoss
Shape (Orientation): Straight
Ends Configuration: S25 Female DIN, 3/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Tube OD Hose Size Thread A D E&Oslash Hex 1
DN Dash Size
4S8DS6 12 - -06 M20 x 1.5 2.12" 1.12" 0.26" 0.94"
4S10DS6 14 - -06 M22 x 1.5 2.24" 1.24" 0.26" 1.06"
4S12DS8 16 - -08 M24 x 1.5 2.46" 1.29" 0.38" 1.18"
4S16DS10 20 - -10 M30 x 2 2.63" 1.48" 0.50" 1.42"
4S16DS12 20 19 -12 M30X2 2.90" 1.47" 0.56" 36mm
4S20DS12 25 19 -12 M36X2 3.41" 1.98" 0.56" 46mm
4S25DS12 30 19 -12 M42X2 3.47" 2.04" 0.56" 50mm
4S25DS16 30 25 -16 M42X2 3.59" 2.02" 0.76" 50mm
4S32DS16 38 25 -16 M52X2 3.72" 2.18" 0.76" 60mm
4S25DS20 30 31 -20 M42X2 3.80" 1.64" 0.87" 50mm
4S32DS20 38 31 -20 M52X2 4.39" 2.22" 0.99" 60mm
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
