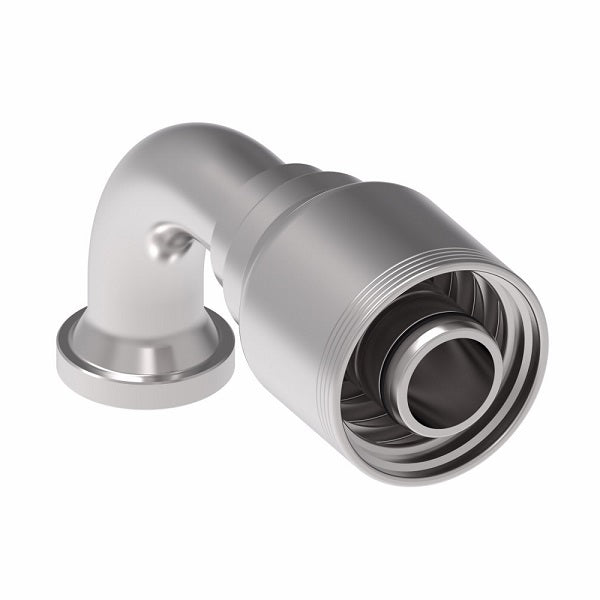

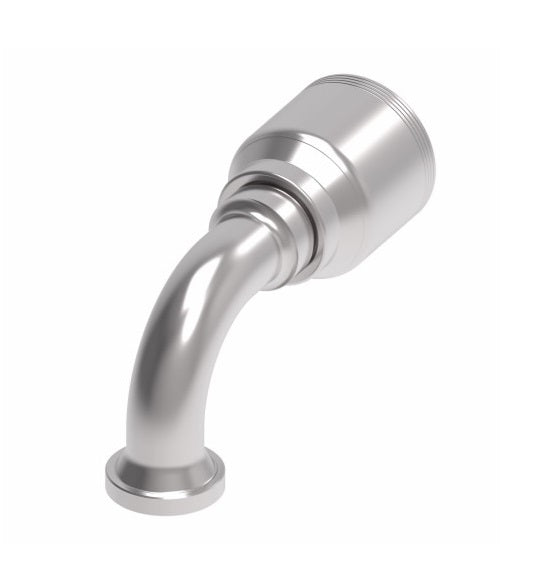

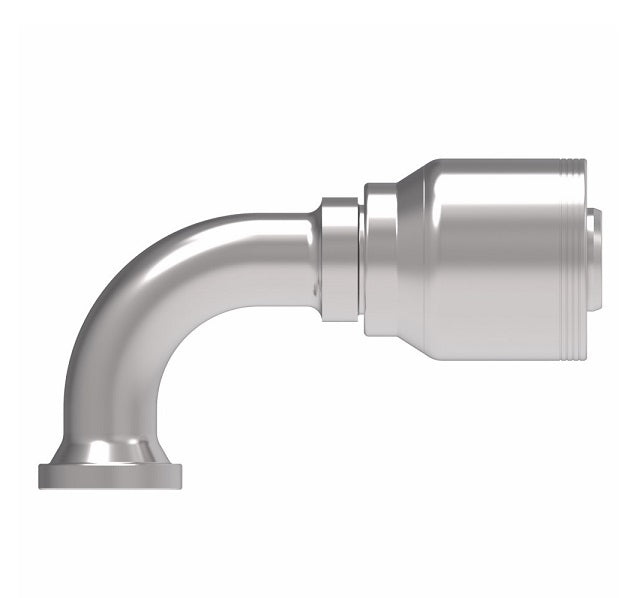

4S20FLB20.068 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 90° Elbow (FLB) Crimp Fitting | -20 Code 61 Flange x -20 Hose Barb | Steel | Pack of 10

4S20FLB20.068 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 90° Elbow (FLB) Crimp Fitting | -20 Code 61 Flange x -20 Hose Barb | Steel | Pack of 10

$1,225.77 - $1,225.77

$1,225.77

$1,225.77 - $1,225.77

$1,225.77

Aeroquip® by Danfoss
4 Wire 4S SAE Code 61 Flange Crimp Fitting (FLB) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 4S20FLB20.068 Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/4in Code 61 Flange, 1-1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E&Oslash	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E&Oslash	H
4S8FLB8	-08	-	-08	1.19"	2.74"	1.67"	0.36"	1.63"
4S12FLB8	-12	-	-08	1.50"	3.35"	2.28"	0.38"	2.13"
4S12FLB10	-12	-	-10	1.50"	3.31"	2.29"	0.50"	2.13"
4S12FLB12	-12	19	-12	1.50"	4.27"	2.85"	0.56"	2.32"
4S16FLB12	-16	19	-12	1.75"	4.84"	3.41"	0.56"	2.80"
4S20FLB12	-20	19	-12	2.00"	4.72"	2.85"	0.56"	2.56"
4S16FLB16	-16	25	-16	1.75"	4.96"	3.39"	0.76"	2.80"
4S16FLB16.061	-16	-	-16	-	-	-	-	-
4S16FLB16.116	-16	25	-16	1.75"	4.96"	3.39"	0.76"	4.57"
4S20FLB16	-20	25	-16	2.00"	5.72"	4.15"	0.76"	3.50"
4S24FLB16	-24	25	-16	2.38"	5.37"	3.81"	0.76"	3.22"
4S16FLB20	-16	31	-20	1.75"	5.79"	3.62"	0.99"	2.80"
4S20FLB20	-20	31	-20	2.00"	6.37"	4.19"	0.99"	3.50"
4S20FLB20.068	-20	-	-20	-	-	-	-	-
4S24FLB20	-24	31	-20	2.38"	6.02"	3.85"	0.99"	3.22"
4S24FLB24	-24	38	-24	2.37"	8.22"	5.15"	1.22"	4.09"
4S32FLB24	-32	38	-24	2.81"	9.74"	6.67"	1.22"	5.43"
4S32FLB32	-32	51	-32	2.81"	9.85"	6.78"	1.66"	5.43"
4S32FLB32.120	-32	-	-32	-	-	-	-	-
