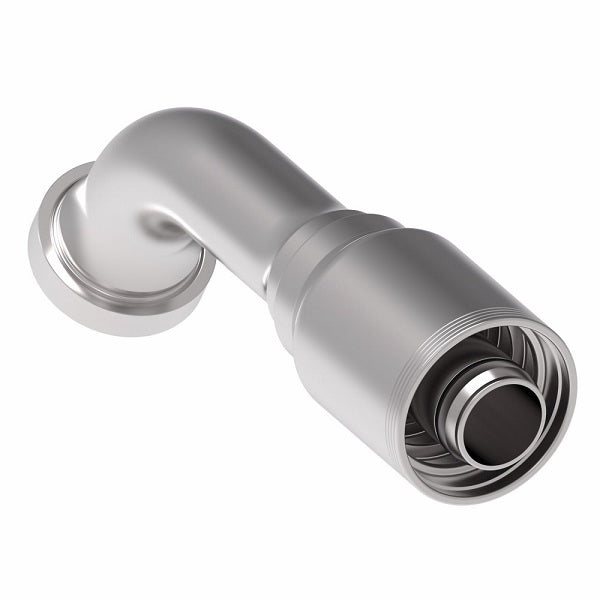

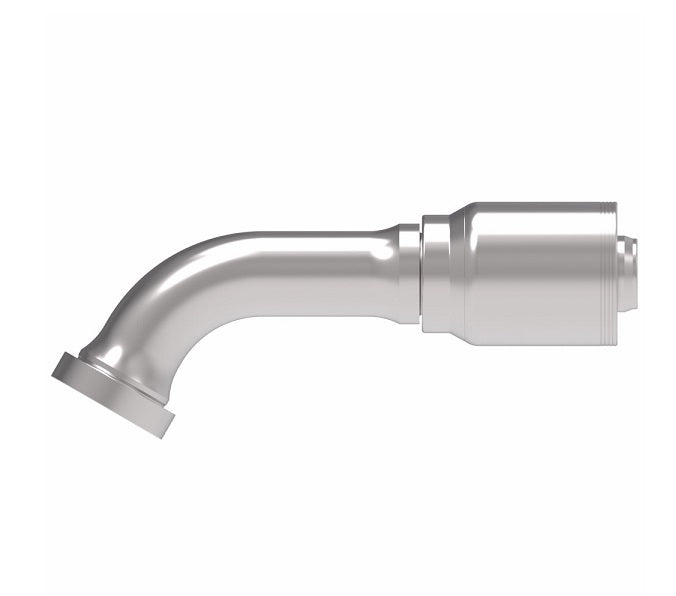

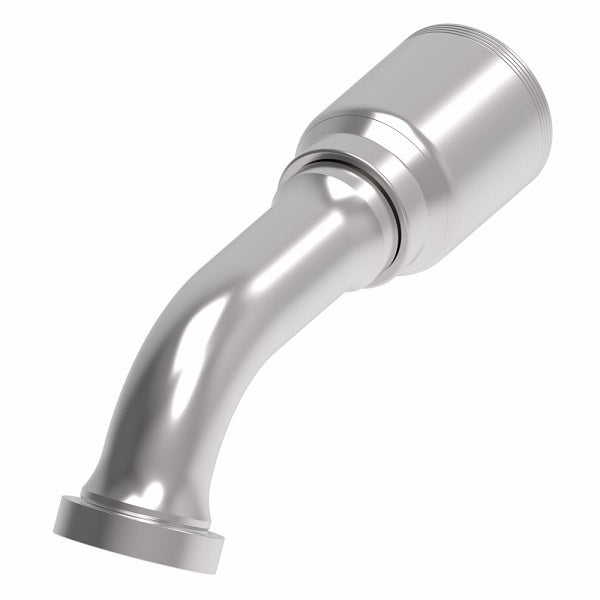

4S24CTG24 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 60° Elbow (CTG) Crimp Fitting | -24 CAT Flange x -24 Hose Barb | Steel
4S24CTG24 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 60° Elbow (CTG) Crimp Fitting | -24 CAT Flange x -24 Hose Barb | Steel
4S24CTG24 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 60° Elbow (CTG) Crimp Fitting | -24 CAT Flange x -24 Hose Barb | Steel

4S24CTG24 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 60° Elbow (CTG) Crimp Fitting | -24 CAT Flange x -24 Hose Barb | Steel

$291.50 - $291.50
$291.50
$291.50 - $291.50
$291.50

Aeroquip® by Danfoss
4 Wire 4S CAT Flange Crimp Fitting (CTG) - 60° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S24CTG24 Danfoss
Shape (Orientation): 60 Degree
Ends Configuration: 1-1/2in CAT Flange, 1-1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash H
Dash Size DN Dash Size
4S12CTG12 -12 19 -12 1.63" 5.38" 3.96" 0.56" 1.67"
4S16CTG16 -16 25 -16 1.87" 6.25" 4.69" 0.76" 1.92"
4S20CTG16 -20 25 -16 2.13" 7.29" 5.73" 0.76" 2.33"
4S24CTG24 -24 38 -24 2.50" 10.01" 6.94" 1.22" 2.62"
4S32CTG32 -32 51 -32 3.13" 12.20" 9.13" 1.66" 3.44"
