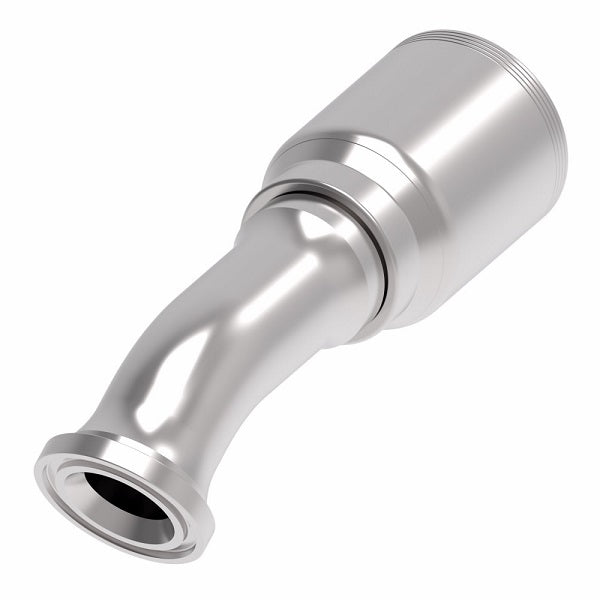

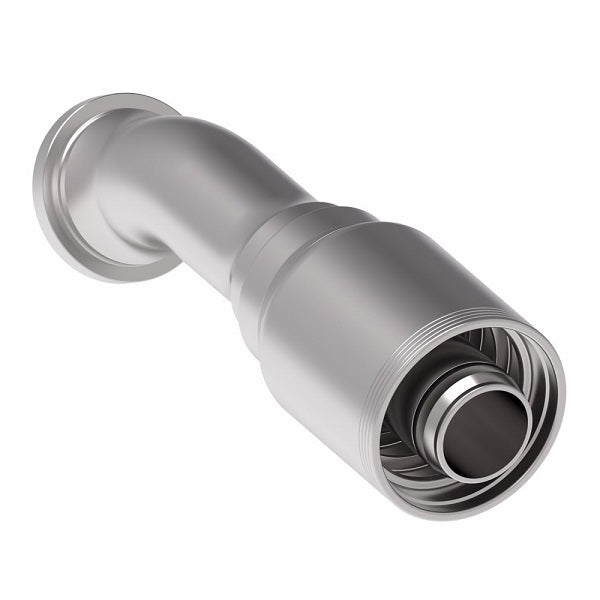

4S24FLF24 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 30° Elbow (FLF) Crimp Fitting | -24 Code 61 Flange x -24 Hose Barb | Steel
4S24FLF24 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 30° Elbow (FLF) Crimp Fitting | -24 Code 61 Flange x -24 Hose Barb | Steel
4S24FLF24 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 30° Elbow (FLF) Crimp Fitting | -24 Code 61 Flange x -24 Hose Barb | Steel

4S24FLF24 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 30° Elbow (FLF) Crimp Fitting | -24 Code 61 Flange x -24 Hose Barb | Steel

$219.14 - $219.14
$219.14
$219.14 - $219.14
$219.14

Aeroquip® by Danfoss
4 Wire 4S SAE Code 61 Flange Crimp Fitting (FLF) - 30° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S24FLF24 Danfoss
Shape (Orientation): 30 Degree
Ends Configuration: 1-1/2in Code 61 Flange, 1-1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash H
Dash Size DN Dash Size
4S8FLF8 -08 - -08 1.19" 3.32" 2.15" 0.37" 0.50"
4S12FLF12 -12 19 -12 1.50" 4.70" 3.28" 0.56" 0.65"
4S16FLF12 -16 19 -12 1.75" 5.30" 3.87" 0.56" 0.76"
4S16FLF16 -16 25 -16 1.75" 5.42" 3.85" 0.76" 0.76"
4S20FLF16 -20 25 -16 2.00" 6.23" 4.67" 0.76" 0.92"
4S20FLF20 -20 31 -20 2.00" 6.88" 4.71" 0.99" 0.92"
4S24FLF20 -24 31 -20 2.38" 6.69" 4.52" 0.99" 0.95"
4S24FLF24 -24 38 -24 2.37" 8.80" 5.72" 1.22" 1.06"
4S32FLF32 -32 51 -32 2.81" 10.47" 7.39" 1.66" 1.34"
