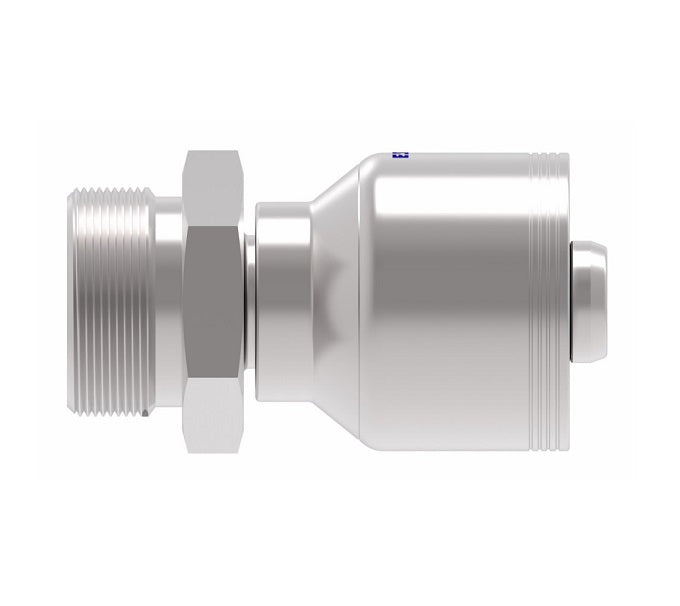

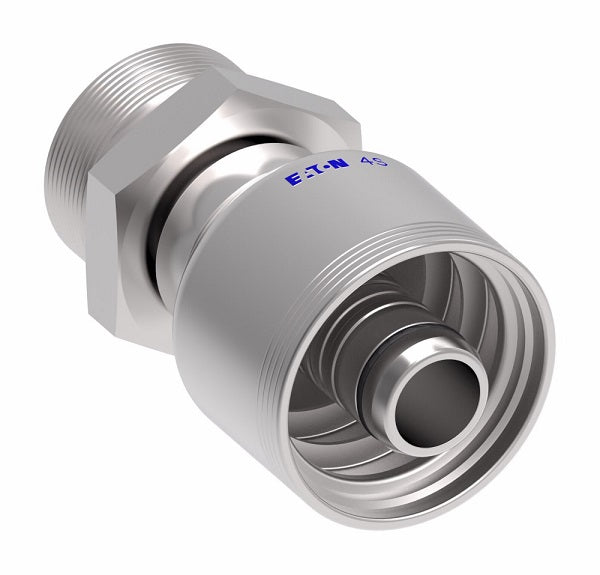

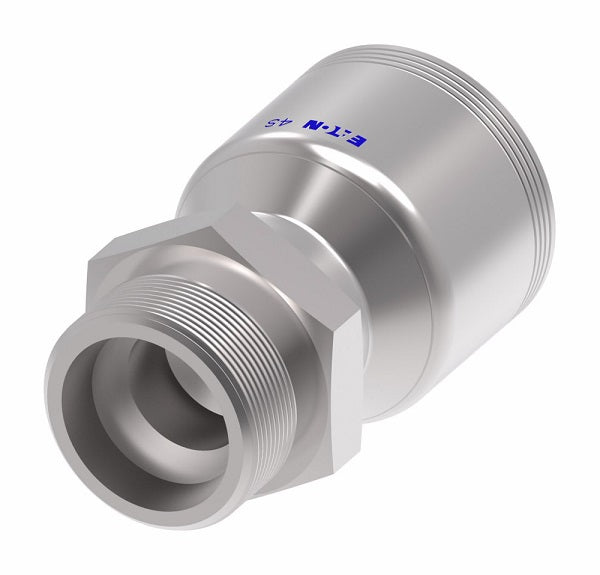

4S6EK6 Aeroquip by Danfoss | 4 Wire 4S 24° Male, Heavy Duty (EK) Crimp Fitting | S10 Male DKO/DIN x -06 Hose Barb | Steel | Pack of 10

4S6EK6 Aeroquip by Danfoss | 4 Wire 4S 24° Male, Heavy Duty (EK) Crimp Fitting | S10 Male DKO/DIN x -06 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$621.20 - $621.20

$621.20

$621.20 - $621.20

$621.20

Aeroquip® by Danfoss
4 Wire 4S Male DIN 24° Seat Rigid DKO (Heavy) Crimp Fitting (EK) - Straight

S.Rh. DKO (Heavy)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4S6EK6 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	S10 Male DIN, 3/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	FC636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Tube OD	Hose Size		Thread	A	D	EØ	Hex 1
Steel Part Number	Tube OD	DN	Dash Size	Thread	A	D	EØ	Hex 1
4S6EK6	10	-	-06	M18 x 1.5	1.79"	0.95"	0.26"	0.75"
4S8EK6	12	-	-06	M20 x 1.5	1.98"	0.98"	0.26"	0.87"
4S12EK8	16	-	-08	M24 x 1.5	2.28"	1.11"	0.38"	1.06"
4S16EK10	20	-	-10	M30 x 2	2.44"	1.29"	0.50"	1.26"
4S20EK12	25	19	-12	M36X2	3.09"	1.67"	0.56"	41mm
4S25EK16	30	25	-16	M42X2	3.30"	1.73"	0.75"	46mm
4S32EK20	38	31	-20	M52X2	4.21"	2.04"	0.99"	55mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
