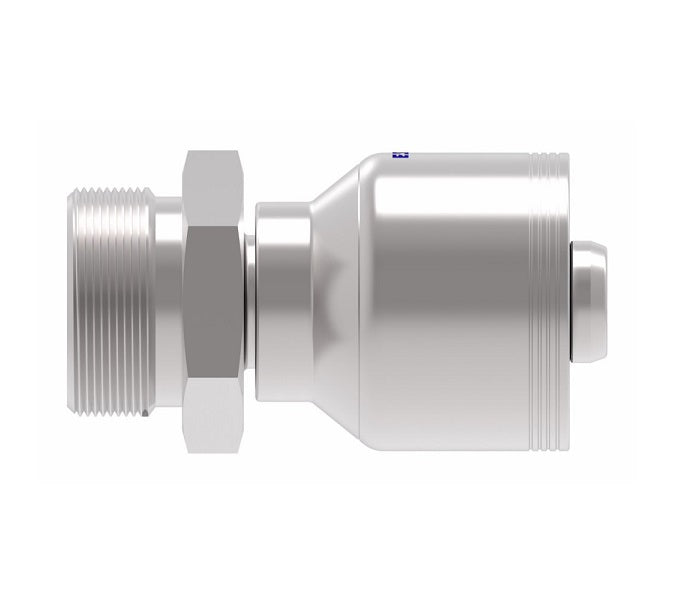

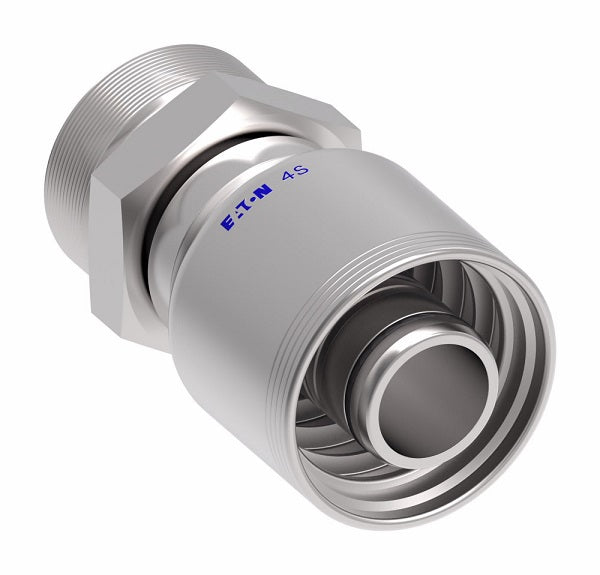

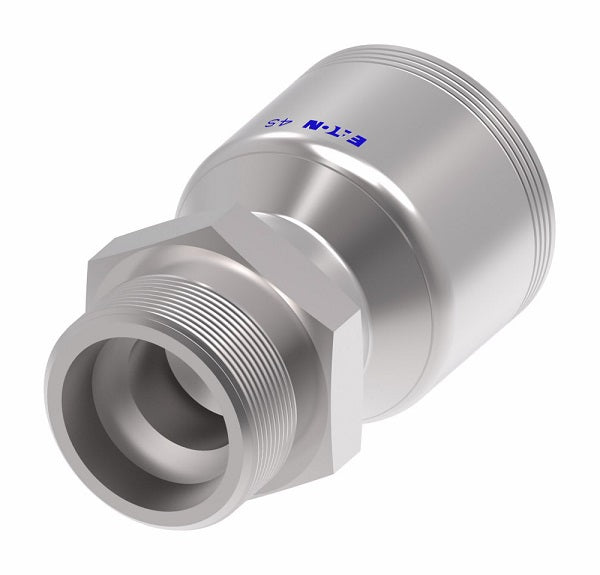

4S8EK6 Aeroquip by Danfoss | 4 Wire 4S 24° Male, Heavy Duty (EK) Crimp Fitting | S12 Male DKO/DIN x -06 Hose Barb | Steel
4S8EK6 Aeroquip by Danfoss | 4 Wire 4S 24° Male, Heavy Duty (EK) Crimp Fitting | S12 Male DKO/DIN x -06 Hose Barb | Steel
4S8EK6 Aeroquip by Danfoss | 4 Wire 4S 24° Male, Heavy Duty (EK) Crimp Fitting | S12 Male DKO/DIN x -06 Hose Barb | Steel

4S8EK6 Aeroquip by Danfoss | 4 Wire 4S 24° Male, Heavy Duty (EK) Crimp Fitting | S12 Male DKO/DIN x -06 Hose Barb | Steel

$50.58 - $50.58
$50.58
$50.58 - $50.58
$50.58

Aeroquip® by Danfoss
4 Wire 4S Male DIN 24° Seat Rigid DKO (Heavy) Crimp Fitting (EK) - Straight

S.Rh. DKO (Heavy)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S8EK6 Danfoss
Shape (Orientation): Straight
Ends Configuration: S12 Male DIN, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: FC636 Series  |   FC736 Series  |   GH493 Series  |   EC525 Series
Technical Info:
Steel
Part Number 		Tube OD Hose Size Thread A D E&Oslash Hex 1
DN Dash Size
4S6EK6 10 - -06 M18 x 1.5 1.79" 0.95" 0.26" 0.75"
4S8EK6 12 - -06 M20 x 1.5 1.98" 0.98" 0.26" 0.87"
4S12EK8 16 - -08 M24 x 1.5 2.28" 1.11" 0.38" 1.06"
4S16EK10 20 - -10 M30 x 2 2.44" 1.29" 0.50" 1.26"
4S20EK12 25 19 -12 M36X2 3.09" 1.67" 0.56" 41mm
4S25EK16 30 25 -16 M42X2 3.30" 1.73" 0.75" 46mm
4S32EK20 38 31 -20 M52X2 4.21" 2.04" 0.99" 55mm
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
