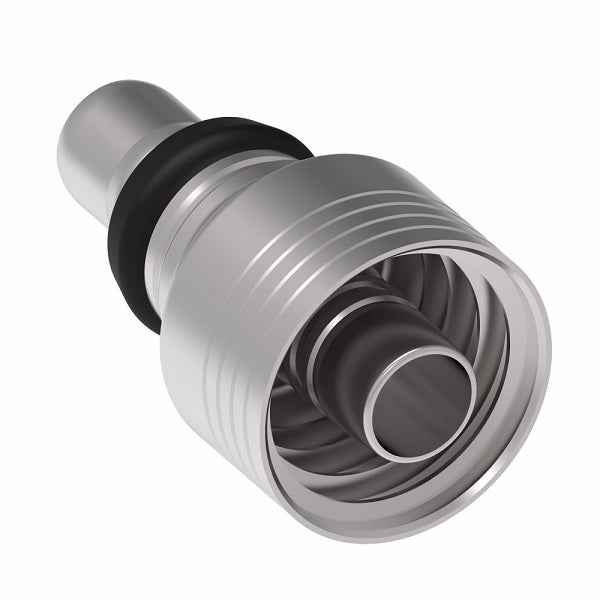

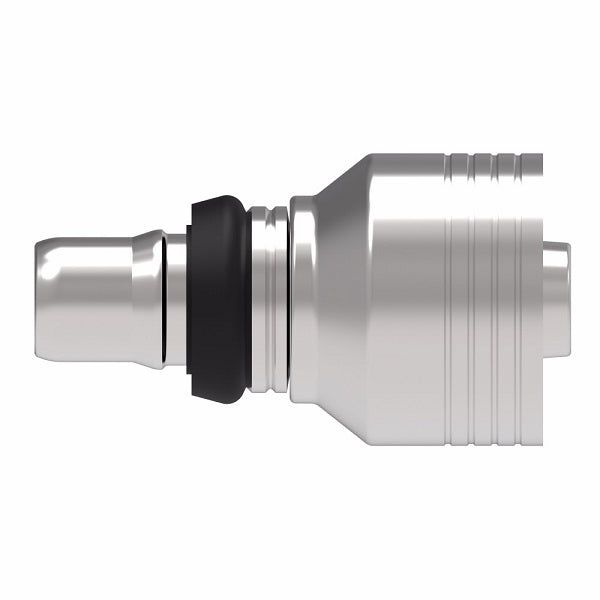

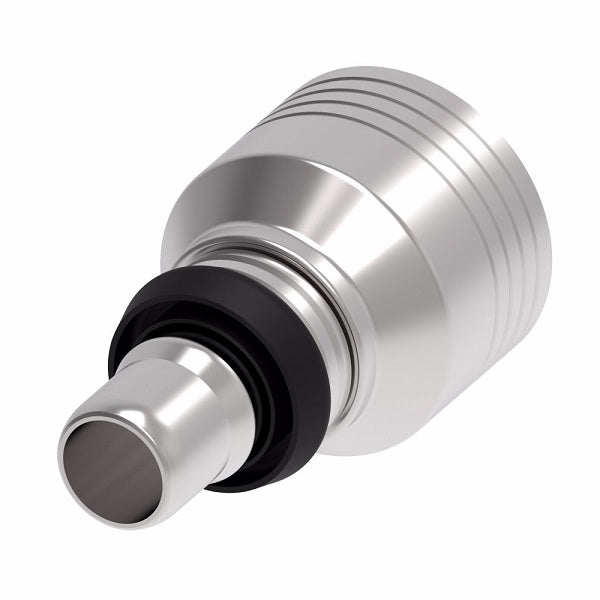

4S8MC8 Aeroquip by Danfoss | Male STC (Snap to Connect) Hose End (MC) | TCC12 Crimp Fitting | -08 Male STC x -08 Hose Barb | Steel
4S8MC8 Aeroquip by Danfoss | Male STC (Snap to Connect) Hose End (MC) | TCC12 Crimp Fitting | -08 Male STC x -08 Hose Barb | Steel | Pack of 10
4S8MC8 Aeroquip by Danfoss | Male STC (Snap to Connect) Hose End (MC) | TCC12 Crimp Fitting | -08 Male STC x -08 Hose Barb | Steel | Pack of 10
4S8MC8 Aeroquip by Danfoss | Male STC (Snap to Connect) Hose End (MC) | TCC12 Crimp Fitting | -08 Male STC x -08 Hose Barb | Steel

4S8MC8 Aeroquip by Danfoss | Male STC (Snap to Connect) Hose End (MC) | TCC12 Crimp Fitting | -08 Male STC x -08 Hose Barb | Steel | Pack of 10

$374.26 - $374.26
$374.26
$374.26 - $374.26
$374.26

Aeroquip® by Danfoss
STC (Snap to Connect) Fitting - TTC12 Crimp Fitting - Male STC (Snap to Connect) Hose End (MC) - Straight

(Formerly Eaton Aeroquip)


Package Quantity: 10 Units

Specifications for Variant SKU: 4S8MC8 Danfoss | 10 |
Shape (Orientation): Straight
Ends Configuration: 1/2in Male STC, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: GH493 Series  |   FC736 Series
Applications:
  • Hydraulic
    • Power Steering
    • Auxiliary Hydraulics
    • Power Brakes
    • Turbochargers
    • Fuel Injection Systems
    • Hydraulic Work Circuits
  • Air Conditioning, Refrigeration and Truck and Bus
    • Refrigerant Supply Lines
    • Compressor Discharge
    • Power Steering
    • Oil Cooler
  • Pneumatic
    • Brakes
    • Air Supply Lines
  • Cooling
    • Transmission Oil Coolers
    • Heat Exchangers
  • Equipment
    • Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
  • Positive round-wire style latching mechanism.
  • Swivels for installation (in absence of pressure).
  • Low profile; compact design.
  • Elastomeric o-ring seal.
  • Capable of direct porting into valve blocks or manifolds.
  • Dual purpose dust seal/release sleeve.
  • Simple stamped release tool for disconnecting.
Benefits:
  • Fast reliable one-hand connections requiring no assembly tools.
  • Eliminates cross-threading, over or undertorquing, and hose twisting.
  • Installs easily in confined areas.
  • Virtually zero leak performance per SAE J1176.
  • Direct porting eliminates adapters to maximize cost savings.
  • Resists external contamination.
  • Allows easy disconnection with release tool (sold separately).
Technical Info:
Part Number Dash Size A D E Ø STC Release Tool
4S8MC8 -08 2.61" 1.44" 0.38" FF90213-08
4S10MC10 -10 2.72" 1.56" 0.50" FF90213-10

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
