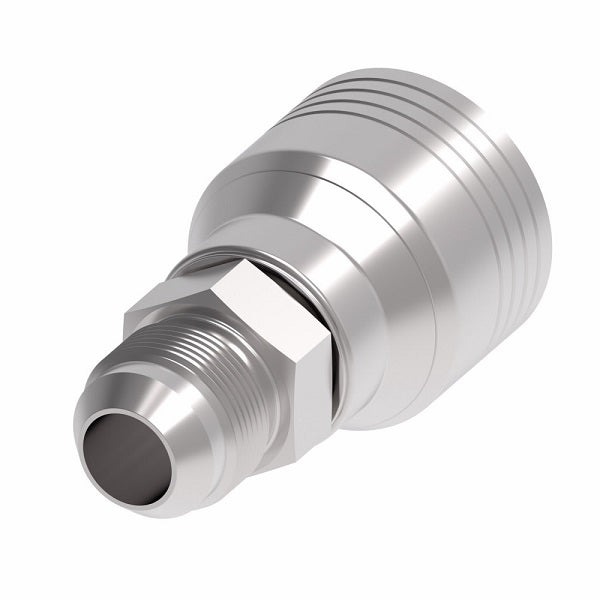

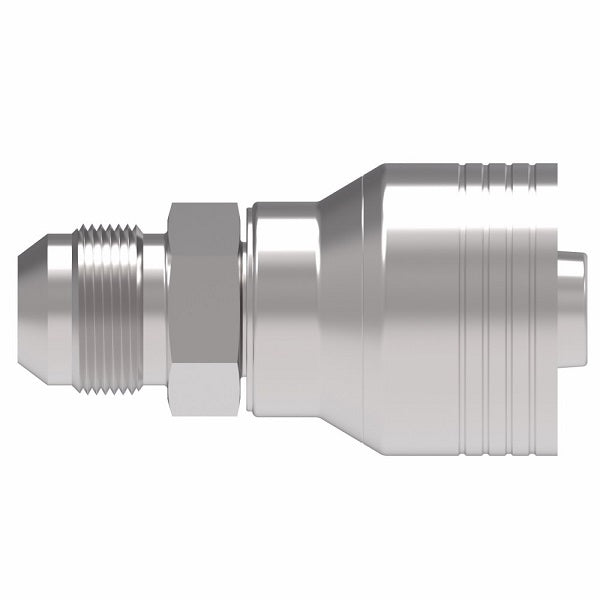

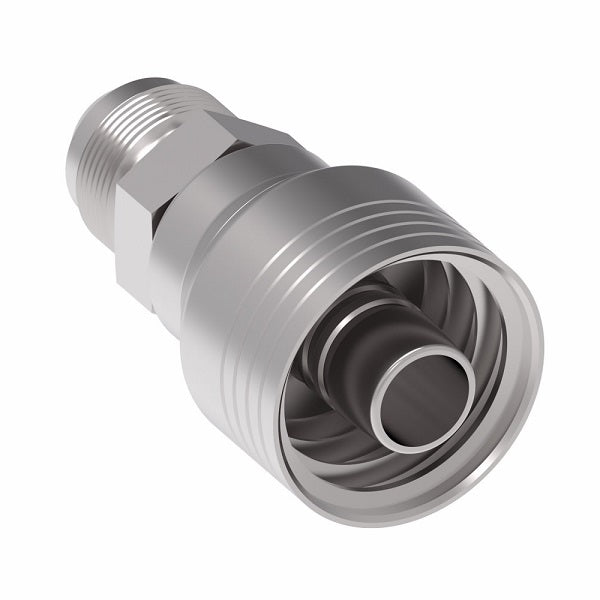

4SA10MJ10 Aeroquip by Danfoss | 4 Wire 4S Male JIC 37° (MJ) Crimp Fitting | -10 Male JIC 37° x -10 Hose Barb | Steel

4SA10MJ10 Aeroquip by Danfoss | 4 Wire 4S Male JIC 37° (MJ) Crimp Fitting | -10 Male JIC 37° x -10 Hose Barb | Steel | Pack of 10

$336.60 - $336.60

$336.60

$336.60 - $336.60

$336.60

Aeroquip® by Danfoss
4 Wire 4S Male JIC/37° Rigid Crimp Fitting (MJ) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 4SA10MJ10 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	5/8in Male JIC, 5/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	FC636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF
Note:
When assembled with all Eaton components, all SAE 37° JIC male and female terminal ends in the 4S & 6S product line are rated at the pressures listed in the table and have passed one million impulse cycles at 133% of this pressure. All straight configurations achieve a 4:1 burst.


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	Hex 1
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	Hex 1
4SA6MJ6	-06	-	-06	9/16-18	2.12"	1.22"	0.26"	11/16"
4SA8MJ6	-08	-	-06	3/4-16	1.94"	1.11"	0.26"	13/16"
4SA8MJ8	-08	-	-08	3/4-16	2.59"	1.40"	0.38"	13/16"
4SA10MJ8	-10	-	-08	7/8-14	2.33"	1.26"	0.38"	15/16"
4SA12MJ8	-12	-	-08	1-1/16-12	2.50"	1.43"	0.38"	1-1/8"
4SA10MJ10	-10	-	-10	7/8-14	2.73"	1.59"	0.48"	15/16"
4SA12MJ10	-12	-	-10	1-1/16-12	2.46"	1.43"	0.50"	1-1/8"
4SA10MJ12	-10	19	-12	7/8-14	3.32"	1.90"	0.48"	15/16"
4SA12MJ12	-12	19	-12	1-1/16-12	3.42"	2.00"	0.56"	1-1/8"
4SA14MJ12	-14	19	-12	1-3/16-12	3.27"	1.85"	0.56"	1-1/4"
4SA16MJ12	-16	19	-12	1-5/16-12	3.29"	1.87"	0.56"	1-3/8"
4SA16MJ16	-16	25	-16	1-5/16-12	3.69"	2.13"	0.75"	1-3/8"
4SA20MJ16	-20	25	-16	1-5/8-12	3.92"	2.36"	0.76"	1-11/16"
4SA20MJ20	-20	31	-20	1-5/8-12	4.56"	2.38"	0.99"	1-11/16"
4SA24MJ24	-24	38	-24	1-7/8-12	5.96"	2.89"	1.22"	2"
4SA32MJ32	-32	51	-32	2-1/2-12	6.45"	3.38"	1.66"	2-5/8"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
