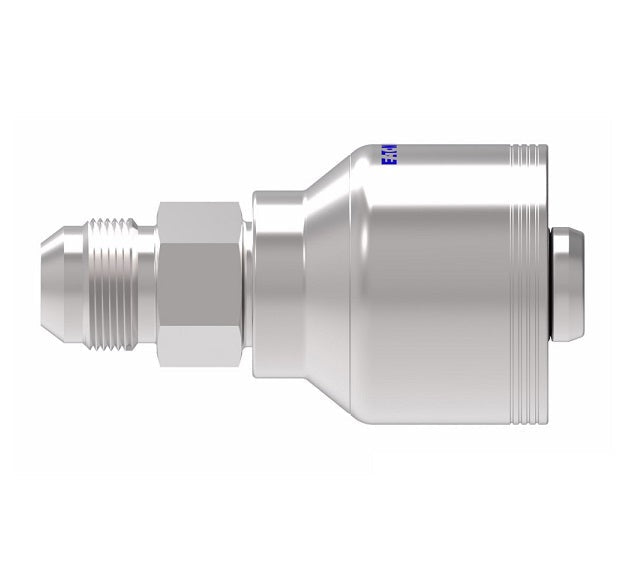

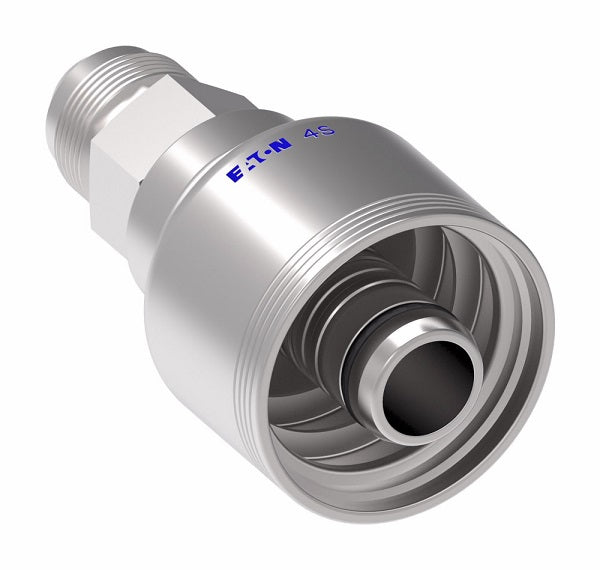

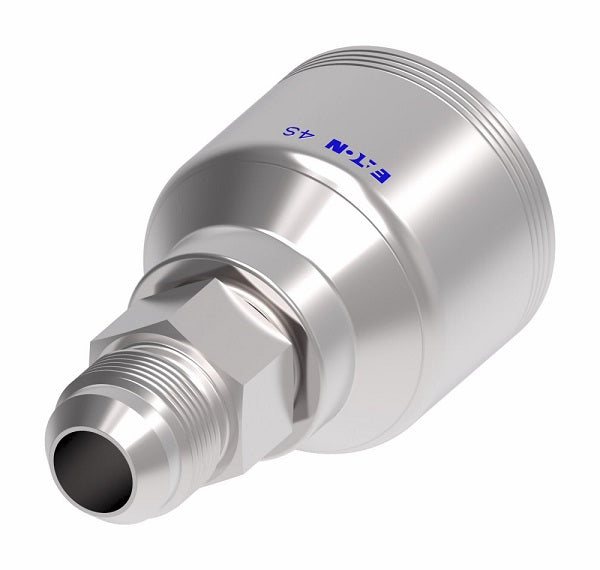

4SA14MJ12 Aeroquip by Danfoss | 4 Wire 4S Male JIC/37° Rigid (MJ) Crimp Fitting | -14 Male JIC/37° Rigid x -12 Hose Barb | Steel | Pack of 10

4SA14MJ12 Aeroquip by Danfoss | 4 Wire 4S Male JIC/37° Rigid (MJ) Crimp Fitting | -14 Male JIC/37° Rigid x -12 Hose Barb | Steel | Pack of 10

$616.44 - $616.44

$616.44

$616.44 - $616.44

$616.44

Aeroquip® by Danfoss
4 Wire 4S Male JIC/37° Rigid Crimp Fitting (MJ) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 4SA14MJ12 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	7/8in Male JIC, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF
Note:
When assembled with all Eaton components, all SAE 37° JIC male and female terminal ends in the 4S & 6S product line are rated at the pressures listed in the table and have passed one million impulse cycles at 133% of this pressure. All straight configurations achieve a 4:1 burst.


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	Hex 1
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	Hex 1
4SA6MJ6	-06	-	-06	9/16-18	2.12"	1.22"	0.26"	11/16"
4SA8MJ6	-08	-	-06	3/4-16	1.94"	1.11"	0.26"	13/16"
4SA8MJ8	-08	-	-08	3/4-16	2.59"	1.40"	0.38"	13/16"
4SA10MJ8	-10	-	-08	7/8-14	2.33"	1.26"	0.38"	15/16"
4SA12MJ8	-12	-	-08	1-1/16-12	2.50"	1.43"	0.38"	1-1/8"
4SA10MJ10	-10	-	-10	7/8-14	2.73"	1.59"	0.48"	15/16"
4SA12MJ10	-12	-	-10	1-1/16-12	2.46"	1.43"	0.50"	1-1/8"
4SA10MJ12	-10	19	-12	7/8-14	3.32"	1.90"	0.48"	15/16"
4SA12MJ12	-12	19	-12	1-1/16-12	3.42"	2.00"	0.56"	1-1/8"
4SA14MJ12	-14	19	-12	1-3/16-12	3.27"	1.85"	0.56"	1-1/4"
4SA16MJ12	-16	19	-12	1-5/16-12	3.29"	1.87"	0.56"	1-3/8"
4SA16MJ16	-16	25	-16	1-5/16-12	3.69"	2.13"	0.75"	1-3/8"
4SA20MJ16	-20	25	-16	1-5/8-12	3.92"	2.36"	0.76"	1-11/16"
4SA20MJ20	-20	31	-20	1-5/8-12	4.56"	2.38"	0.99"	1-11/16"
4SA24MJ24	-24	38	-24	1-7/8-12	5.96"	2.89"	1.22"	2"
4SA32MJ32	-32	51	-32	2-1/2-12	6.45"	3.38"	1.66"	2-5/8"
