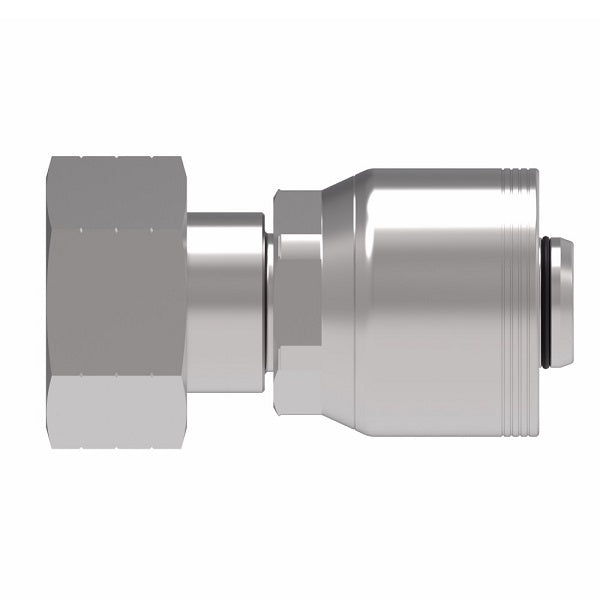

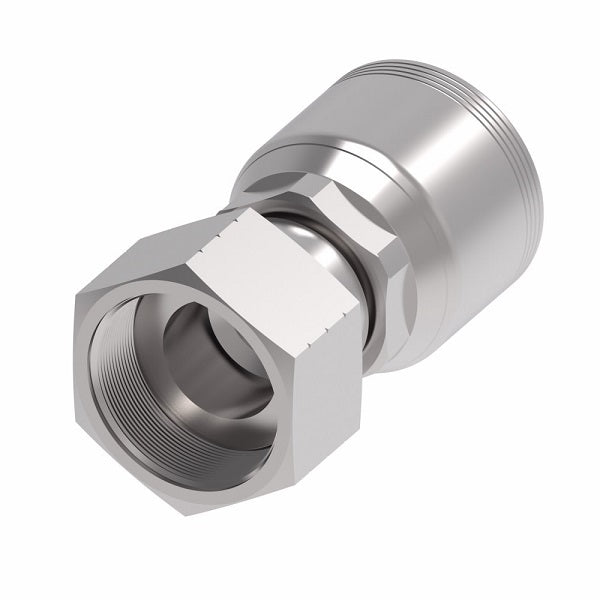

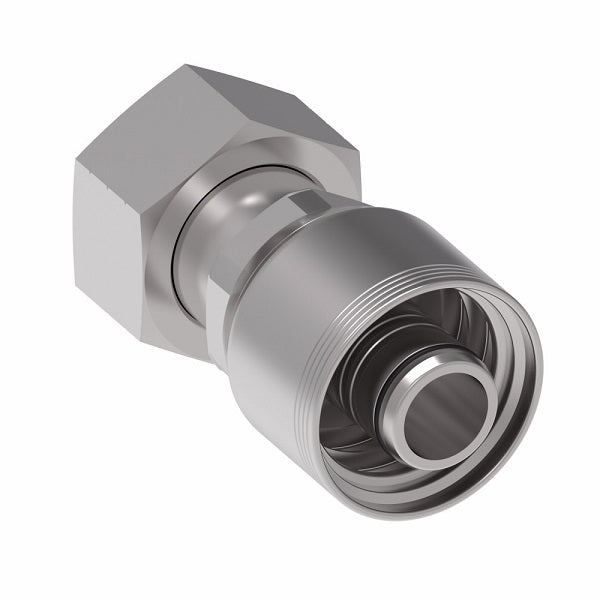

4SA16FR12 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel
4SA16FR12 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel
4SA16FR12 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel
4SA16FR12 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel

4SA16FR12 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel

$74.86 - $74.86
$74.86
$74.86 - $74.86
$74.86

Aeroquip® by Danfoss
4 Wire 4S Female ORS Swivel Crimp Fitting (FR) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4SA16FR12 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Thread A D EØ Hex 1

 Hex 2
Dash Size DN Dash Size
4SA6FR6 -06 - -06 11/16-16 2.07" 1.24" 0.26" 13/16" 11/16"
4SA8FR6 -08 - -06 13/16-16 2.14" 1.32" 0.26" 15/16" 11/16"
4SA6FR8 -06 - -08 11/16-16 2.41" 1.34" 0.26" 13/16" 7/8"
4SA8FR8 -08 - -08 13/16-16 2.61" 1.50" 0.36" 15/16" 7/8"
4SA10FR8 -10 - -08 1-14 2.57" 1.47" 0.38" 1-1/8" 7/8"
4SA10FR10 -10 - -10 1-14 2.62" 1.61" 0.45" 1-1/8" 1-1/16"
4SA12FR8 -12 - -08 - - - - - -
4SA12FR10 -12 - -10 1-3/16-12 2.65" 1.63" 0.50" 1-3/8" 1-1/16"
4SA10FR12 -10 19 -12 1-14 2.93" 1.50" 0.56" 1-3/16" 1-1/8"
4SA12FR12 -12 19 -12 1-3/16-12 3.05" 1.62" 0.56" 1-3/16" 1-3/8"
4SA16FR12 -16 19 -12 1-7/16-12 3.12" 1.70" 0.56" 1-3/16" 1-5/8"
4SA12FR16 -12 25 -16 1-3/16-12 3.17" 1.61" 0.76" 1-5/8" 1-3/8"
4SA16FR16 -16 25 -16 1-7/16-12 3.24" 1.68" 0.76" 1-5/8" 1-5/8"
4SA20FR16 -20 25 -16 1-11/16-12 3.24" 1.68" 0.76" 1-5/8" 1-7/8"
4SA20FR20 -20 31 -20 1-11/16-12 3.90" 1.72" 0.99" 1-13/16" 1-7/8"
4SA24FR24 -24 38 -24 2-12 4.95" 1.87" 1.22" 2-1/4" 2-1/4"
