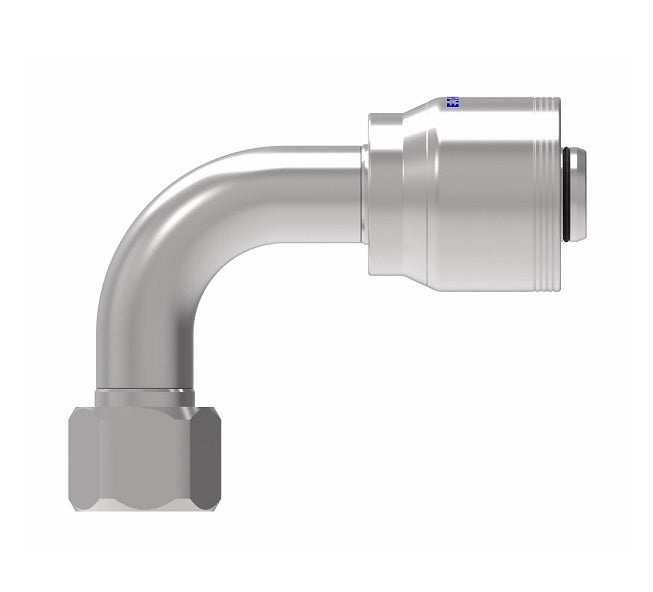

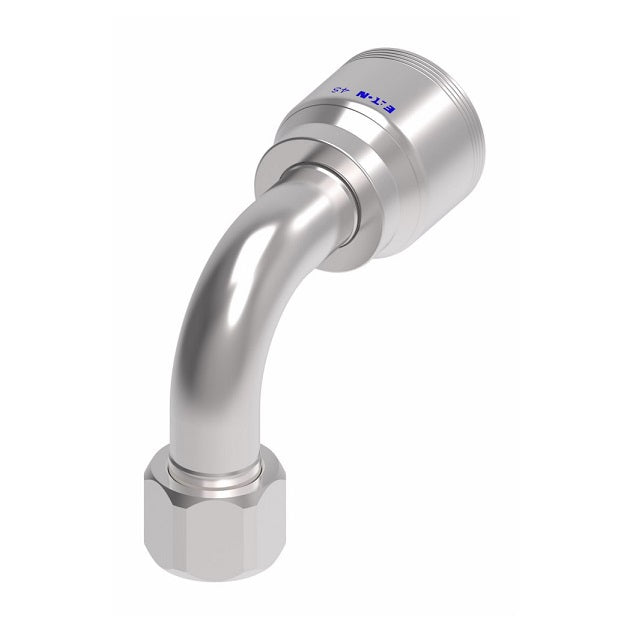

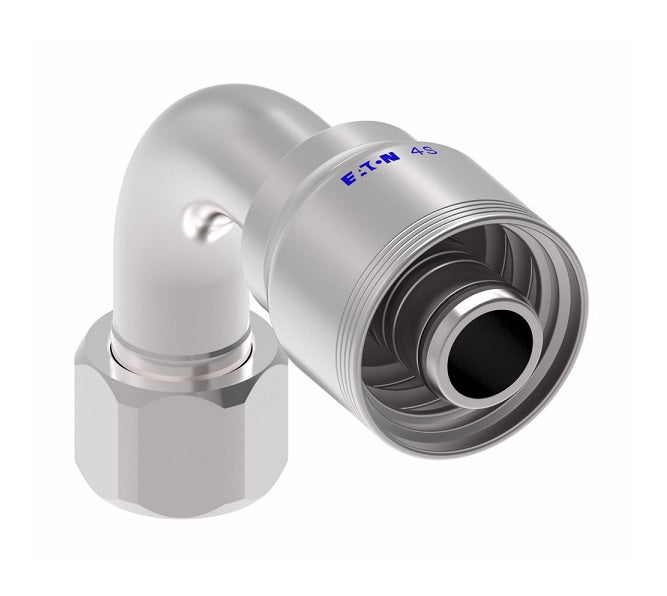

4SA20FJB16 Aeroquip by Danfoss | 4 Wire 4S Female JIC/37° Swivel 90° Elbow (FJB) Crimp Fitting | -20 Female JIC/37° Swivel x -16 Hose Barb | Steel
4SA20FJB16 Aeroquip by Danfoss | 4 Wire 4S Female JIC/37° Swivel 90° Elbow (FJB) Crimp Fitting | -20 Female JIC/37° Swivel x -16 Hose Barb | Steel
4SA20FJB16 Aeroquip by Danfoss | 4 Wire 4S Female JIC/37° Swivel 90° Elbow (FJB) Crimp Fitting | -20 Female JIC/37° Swivel x -16 Hose Barb | Steel
4SA20FJB16 Aeroquip by Danfoss | 4 Wire 4S Female JIC/37° Swivel 90° Elbow (FJB) Crimp Fitting | -20 Female JIC/37° Swivel x -16 Hose Barb | Steel

4SA20FJB16 Aeroquip by Danfoss | 4 Wire 4S Female JIC/37° Swivel 90° Elbow (FJB) Crimp Fitting | -20 Female JIC/37° Swivel x -16 Hose Barb | Steel

$163.23 - $163.23
$163.23
$163.23 - $163.23
$163.23

Aeroquip® by Danfoss
4 Wire 4S Female JIC/37° Swivel Crimp Fitting (FJB) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4SA20FJB16 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Female JIC, 1in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Note:
  • When assembled with all Eaton components, all SAE 37° JIC male and female terminal ends in the 4S & 6S product line are rated at the pressures listed in the table and have passed one million impulse cycles at 133% of this pressure. All straight configurations achieve a 4:1 burst.
    The 45° and 90° elbow configurations in the -12 size meet a 3.2:1 burst
    The 45° and 90° elbow configurations in the -16 size achieve a 2.8:1 burst
    The 45° and 90° elbow configurations in the -20 size meet a 4:1 burst
    The 45° & 90° elbow configurations in the -24 size meet a 2.4:1 burst.
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash H Hex 1
Dash Size DN Dash Size
4SA6FJB6 -06 - -06 9/16-18 2.13" 1.22" 0.24" 0.85" 11/16"
4SA8FJB6 -08 - -06 3/4-16 2.55" 1.71" 0.26" 1.87" 7/8"
4SA8FJB8 -08 - -08 3/4-16 2.64" 1.42" 0.37" 1.09" 7/8"
4SA10FJB8 -10 - -08 7/8-14 2.78" 1.70" 0.37" 1.93" 1"
4SA10FJB10 -10 - -10 7/8-14 2.76" 1.55" 0.46" 1.23" 1"
4SA12FJB10 -12 - -10 1-1/16-12 3.34" 2.18" 0.50" 2.35" 1-1/4"
4SA12FJB12 -12 19 -12 1-1/16-12 3.99" 2.57" 0.56" 2.28" 1-1/4"
4SA16FJB12 -16 19 -12 1-5/16-12 4.33" 2.91" 0.56" 2.80" 1-1/2"
4SA16FJB16 -16 25 -16 1-5/16-12 4.45" 2.89" 0.76" 2.80" 1-1/2"
4SA16FJB16.056 -16 - -16 - - - - - -
4SA20FJB16 -20 25 -16 1-5/8-12 4.61" 3.05" 0.75" 3.07" 2"
4SA20FJB20 -20 31 -20 1-5/8-12 5.22" 3.05" 0.99" 3.07" 2"
4SA24FJB24 -24 38 -24 1-7/8-12 8.22" 5.15" 1.22" 4.09" 2-1/4"
