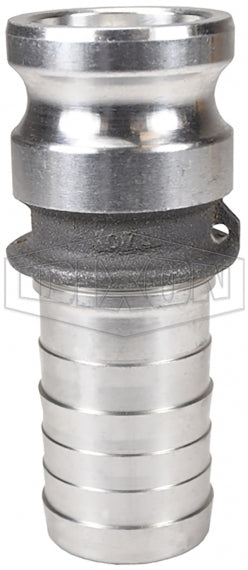

500-E-AL by Dixon Valve | Cam & Groove Fitting | Type E | 5" Adapter x 5" Hose Shank | Aluminum

500-E-AL by Dixon Valve | Cam & Groove Fitting | Type E | 5" Adapter x 5" Hose Shank | Aluminum

Save $8.33 Save $8.33
$74.93
$74.93 - $74.93
$74.93
$66.60
$66.60 - $66.60
$66.60

Dixon Valve
Cam & Groove Fitting | Type E | Adapter x Hose Shank

Designed for use with liquids.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 500-E-AL Dixon
Shape (Orientation): Straight
Cam Type: Type E
Ends Configuration: 5in Male Cam & Groove, 5in Hose Barb
Material(s): Aluminum
Features:
  • Precision machined to rigid tolerances.
Safety Notes:
  • Dixon® and Boss-Lock cam & groove couplings do not interchange in the 8" size.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6
Aluminum
Part Number		 Aluminum
Hard Coat
Part Number		 Brass
Part Number		 Unplated
Malleable Iron
Part Number		 Plated
Malleable Iron
Part Number		 316 Stainless Steel
Part Number		 Size Max. Operating
Pressure
50-E-AL - 50-E-BR - - 50-E-SS 1/2" 150 PSI
- - - - - 7550-E-SS 3/4" x 1/2" 250 PSI
75-E-AL - 75-E-BR - 75-E-PM 75-E-SS 3/4" 250 PSI
100-E-AL - 100-E-BR - 100-E-PM 100-E-SS 1" 250 PSI
125-E-AL - 125-E-BR - 125-E-PM 125-E-SS 1-1/4" 250 PSI
150-E-AL 150-E-ALH 150-E-BR 150-E-MI 150-E-PM 150-E-SS 1-1/2" 250 PSI
200-E-AL 200-E-ALH 200-E-BR 200-E-MI † 200-E-PM † 200-E-SS 2" 250 PSI
250-E-AL - 250-E-BR - - 250-E-SS 2-1/2" 150 PSI
300-E-AL 300-E-ALH 300-E-BR 300-E-MI* † 300-E-PM* † 300-E-SS 3" 125 PSI
400-E-AL 400-E-ALH 400-E-BR 400-E-MI* † 400-E-PM* † 400-E-SS 4" 100 PSI
500-E-AL - - - - 500-E-SS 5" 75 PSI
600-E-AL 600-E-ALH 600-E-BR 600-E-MI* † 600-E-PM* † 600-E-SS 6" 75 PSI
800-E-AL - - - - - 8" 50 PSI
801-E-AL
(Boss-Lock Style)		 - - - - - 8" 50 PSI

* Suitable for King Crimp® sleeves and ferrules

† Ductile iron
