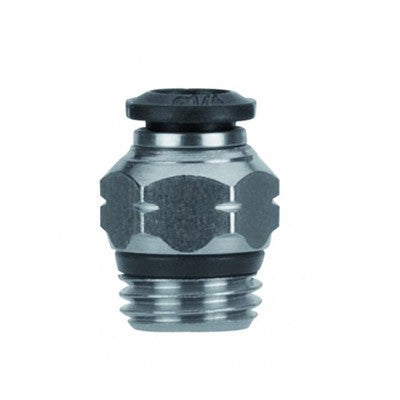

50000N-4-1/8 by AIGNEP | 50N Series | 4mm Tube x 1/8" Swift-Fit Male | Straight | Pack of 10
50000N-4-1/8" AIGNEP | 50N Series | Straight Male | 4mm Tube x 1/8" Swift-Fit Male | Pack of 10
50000N-4-1/8" AIGNEP | 50N Series | Straight Male | 4mm Tube x 1/8" Swift-Fit Male | Pack of 10

50000N-4-1/8 by AIGNEP | 50N Series | 4mm Tube x 1/8" Swift-Fit Male | Straight | Pack of 10

Save $15.07 Save $15.07
$30.40
$30.40 - $30.40
$30.40
$15.33
$15.33 - $15.33
$15.33

Package Quantity: 10 ea

Specifications for Variant SKU: 50000N-4-1/8 AIGNEP | 10 |
Series: 50N Series
Shape (Orientation): Straight
Ends Configuration: 4mm Push-to-Connect, 1/8in Male Swift-Fit
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Straight Male

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number Tube A Seal B L CH1 CH2
50000N-4-1/8 4 mm 1/8" NBR 5.5 mm 18 mm 11 mm 3 mm
50000N-4-1/4 4 mm 1/4" NBR 7 mm 19 mm 14 mm 3 mm
50000N-5-1/8 5 mm 1/8" NBR 5.5 mm 20 mm 11 mm 4 mm
50000N-5-1/4 5 mm 1/4" NBR 7 mm 20 mm 14 mm 4 mm
50000N-6-1/8 6 mm 1/8" NBR 5.5 mm 21.5 mm 13 mm 4 mm
50000N-6-1/4 6 mm 1/4" NBR 7 mm 21 mm 14 mm 4 mm
50000N-6-3/8 6 mm 3/8" NBR 7.5 mm 23 mm 17 mm 4 mm
50000N-6-1/2 6 mm 1/2" NBR 9 mm 23.5 mm 21 mm 4 mm
50000N-8-1/8 8 mm 1/8" NBR 5.5 mm 24.5 mm 14 mm 5 mm
50000N-8-1/4 8 mm 1/4" NBR 7 mm 22 mm 14 mm 6 mm
50000N-8-3/8 8 mm 3/8" NBR 7.5 mm 23 mm 17 mm 6 mm
50000N-8-1/2 8 mm 1/2" NBR 9 mm 23.5 mm 21 mm 6 mm
50000N-10-1/4 10 mm 1/4" NBR 7 mm 28 mm 17 mm 7 mm
50000N-10-3/8 10 mm 3/8" NBR 7.5 mm 25.5 mm 17 mm 8 mm
50000N-10-1/2 10 mm 1/2" NBR 9 mm 26 mm 21 mm 8 mm
50000N-12-1/4 12 mm 1/4" NBR 7 mm 31.5 mm 20 mm 7 mm
50000N-12-3/8 12 mm 3/8" NBR 7.5 mm 29.5 mm 20 mm 9 mm
50000N-12-1/2 12 mm 1/2" NBR 9 mm 31.5 mm 21 mm 10 mm
50000N-14-3/8 14 mm 3/8" NBR 7.5 mm 32.5 mm 21 mm 9 mm
50000N-14-1/2 14 mm 1/2" NBR 9 mm 31.5 mm 21 mm 10 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
