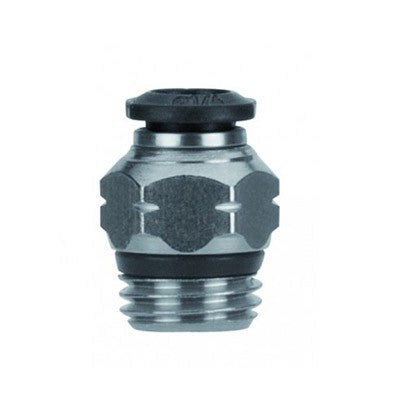

50000N-8-3/8" AIGNEP | 50N Series | Straight Male | 8mm Tube x 3/8" Swift-Fit Male | Pack of 10

50000N-8-3/8 by AIGNEP | 50N Series | 8mm Tube x 3/8" Swift-Fit Male | Straight | Pack of 10

Save $16.93

$39.73

$39.73 - $39.73

$39.73

$22.80

$22.80 - $22.80

$22.80

Package Quantity: 10 ea

Specifications for Variant SKU: 50000N-8-3/8 AIGNEP \| 10 \|
Series:	50N Series
Shape (Orientation):	Straight
Ends Configuration:	8mm Push-to-Connect, 3/8in Male Swift-Fit
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Straight Male

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Tube	A	Seal	B	L	CH1	CH2
50000N-4-1/8	4 mm	1/8"	NBR	5.5 mm	18 mm	11 mm	3 mm
50000N-4-1/4	4 mm	1/4"	NBR	7 mm	19 mm	14 mm	3 mm
50000N-5-1/8	5 mm	1/8"	NBR	5.5 mm	20 mm	11 mm	4 mm
50000N-5-1/4	5 mm	1/4"	NBR	7 mm	20 mm	14 mm	4 mm
50000N-6-1/8	6 mm	1/8"	NBR	5.5 mm	21.5 mm	13 mm	4 mm
50000N-6-1/4	6 mm	1/4"	NBR	7 mm	21 mm	14 mm	4 mm
50000N-6-3/8	6 mm	3/8"	NBR	7.5 mm	23 mm	17 mm	4 mm
50000N-6-1/2	6 mm	1/2"	NBR	9 mm	23.5 mm	21 mm	4 mm
50000N-8-1/8	8 mm	1/8"	NBR	5.5 mm	24.5 mm	14 mm	5 mm
50000N-8-1/4	8 mm	1/4"	NBR	7 mm	22 mm	14 mm	6 mm
50000N-8-3/8	8 mm	3/8"	NBR	7.5 mm	23 mm	17 mm	6 mm
50000N-8-1/2	8 mm	1/2"	NBR	9 mm	23.5 mm	21 mm	6 mm
50000N-10-1/4	10 mm	1/4"	NBR	7 mm	28 mm	17 mm	7 mm
50000N-10-3/8	10 mm	3/8"	NBR	7.5 mm	25.5 mm	17 mm	8 mm
50000N-10-1/2	10 mm	1/2"	NBR	9 mm	26 mm	21 mm	8 mm
50000N-12-1/4	12 mm	1/4"	NBR	7 mm	31.5 mm	20 mm	7 mm
50000N-12-3/8	12 mm	3/8"	NBR	7.5 mm	29.5 mm	20 mm	9 mm
50000N-12-1/2	12 mm	1/2"	NBR	9 mm	31.5 mm	21 mm	10 mm
50000N-14-3/8	14 mm	3/8"	NBR	7.5 mm	32.5 mm	21 mm	9 mm
50000N-14-1/2	14 mm	1/2"	NBR	9 mm	31.5 mm	21 mm	10 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
