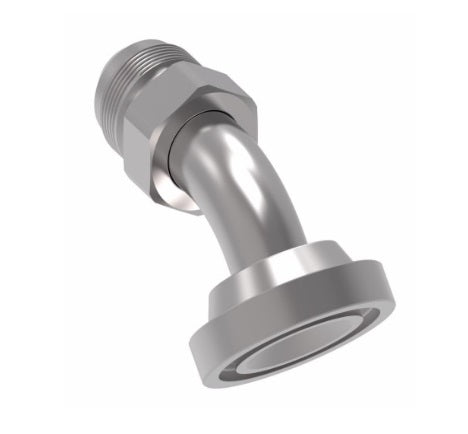

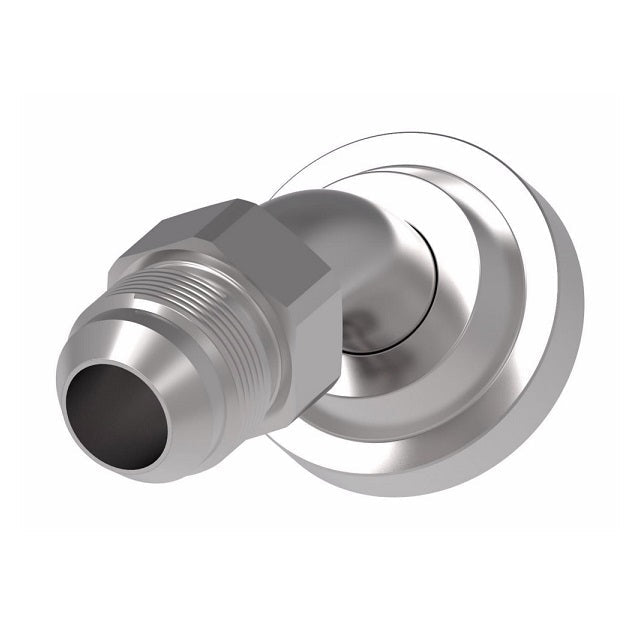

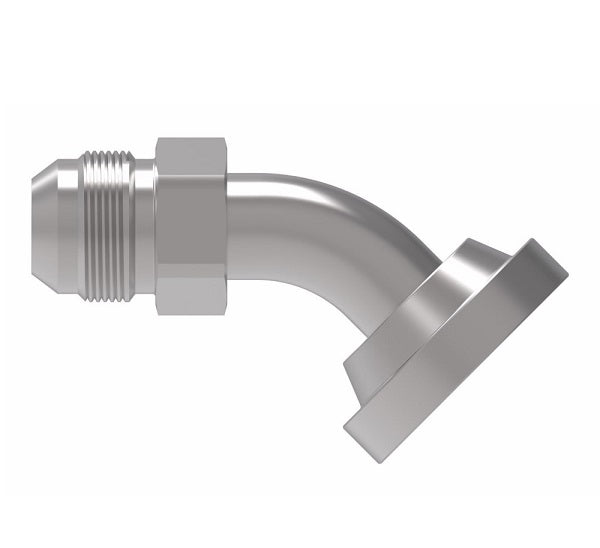

500023-20S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare 45° Elbow Adapter | Standard Pressure Series | -20 Code 61 Split Flange x -20 Male 37° JIC Flare | Steel
500023-20S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare 45° Elbow Adapter | Standard Pressure Series | -20 Code 61 Split Flange x -20 Male 37° JIC Flare | Steel
500023-20S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare 45° Elbow Adapter | Standard Pressure Series | -20 Code 61 Split Flange x -20 Male 37° JIC Flare | Steel
500023-20S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare 45° Elbow Adapter | Standard Pressure Series | -20 Code 61 Split Flange x -20 Male 37° JIC Flare | Steel

500023-20S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare 45° Elbow Adapter | Standard Pressure Series | -20 Code 61 Split Flange x -20 Male 37° JIC Flare | Steel

$47.30 - $47.30
$47.30
$47.30 - $47.30
$47.30

Aeroquip® by Danfoss
Code 61 Split Flange/37° JIC Flare Adapter
Code 61 Split Flange x Male 37° JIC Flare
Standard Pressure Series
45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 500023-20S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/4in Code 61 Flange, 1-1/4in Male JIC
Material(s): Steel
Note:
  • The performance rating of these adapters is the lower of the two terminal ends. These adapters are rated to JIC pressures as specified in SAE J514.
  • Mates with 449-74446 flanges.
Part Number Steel Split Flange Size Tube O.D. Thread T A B
500023-8S 1/2" 0.50" 3/4-16 2.34" 1.00"
500023-12S 3/4" 0.75" 1-1/16-12 2.77" 1.01"
500023-12-8S 3/4" 0.50" 3/4-16 2.34" 1.00"
500023-16S 1" 1.00" 1-5/16-12 3.04" 1.13"
500023-16-10S 1" 0.63" 7/8-14 2.58" 1.00"
500023-16-12S 1" 0.75" 1-1/16-12 2.77" 1.01"
500023-16-20S - - - - -
500023-20S 1-1/4" 1.25" 1-5/8-12 3.24" 1.12"
500023-20-12S 1-1/4" 0.75" 1-1/16-12 2.77" 1.01"
500023-20-16S 1-1/4" 1.00" 1-5/16-12 3.04" 1.13"
500023-24S 1-1/2" 1.50" 1-7/8-12 3.54" 1.12"
500023-24-16S 1-1/2" 1.00" 1-5/16-12 3.08" 1.17"
500023-24-20S 1-1/2" 1.25" 1-5/8-12 3.24" 1.12"
500023-24-32S 1-1/2" 2.00" 2-1/2-12 3.91" 1.12"
500023-32S 2" 2.00" 2-1/2-12 4.24" 1.25"
500023-40-24S 2-1/2" 1.50" 1-7/8-12 3.58" 1.17"
500023-40S 2-1/2" 2.50" 3-12 5.18" 1.66"
