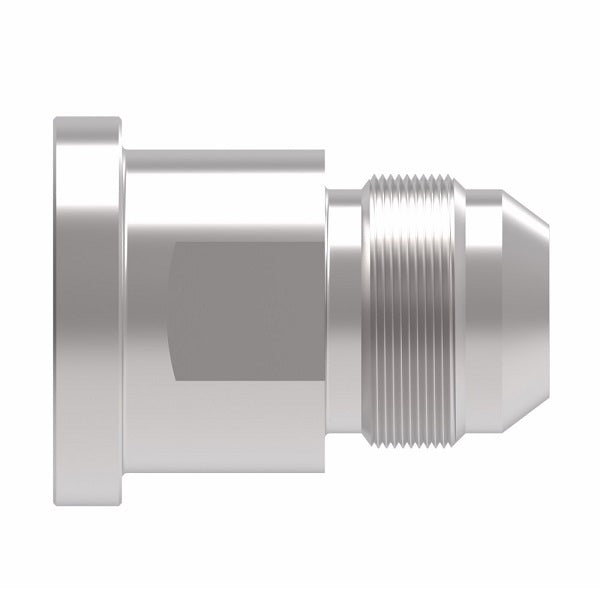

500025-40-24S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare Adapter | Standard Pressure Series | -40 Code 61 Split Flange x -24 Male 37° JIC Flare | Steel

500025-40-24S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare Adapter | Standard Pressure Series | -40 Code 61 Split Flange x -24 Male 37° JIC Flare | Steel

$91.99 - $91.99
$91.99
$91.99 - $91.99
$91.99

Aeroquip® by Danfoss
Code 61 Split Flange/37° JIC Flare Adapter
Code 61 Split Flange x Male 37° JIC Flare
Standard Pressure Series
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 500025-40-24S Danfoss
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Code 61 Flange, 1-1/2in Male JIC
Material(s): Steel
Note:
  • The performance rating of these adapters is the lower of the two terminal ends. These adapters are rated to JIC pressures as specified in SAE J514.
  • Mates with 449-74446 flanges
Part Number Steel Split Flange Size Tube O.D. Thread T A
500025-8S 1/2" 0.50" 3/4-16 1.66"
500025-12-8S 3/4" 0.50" 3/4-16 2.03"
500025-12S 3/4" 0.75" 1-1/16-12 1.91"
500025-16-10S 1" 0.63" 7/8-14 1.86"
500025-16-12S 1" 0.75" 1-1/16-12 2.30"
500025-16S 1" 1.00" 1-5/16-12 2.01"
500025-20-16S 1-1/4" 1.00" 1-5/16-12 2.35"
500025-20S 1-1/4" 1.25" 1-5/8-12 2.46"
500025-20-24S 1-1/4" 1.50" 1-7/8-12 2.64"
500025-24-16S 1-1/2" 1.00" 1-5/16-12 2.41"
500025-24-20S 1-1/2" 1.25" 1-5/8-12 2.46"
500025-24S 1-1/2" 1.50" 1-7/8-12 2.71"
500025-32-16S 2" 1.00" 1-5/16-12 2.32"
500025-32-20S 2" 1.25" 1-5/8-12 2.52"
500025-32-24S 2" 1.50" 1-7/8-12 2.71"
500025-32S 2" 2.00" 2-1/2-12 3.08"
500025-40-24S - 1.31" 1 7/8-12 2.77"
