5001255 THERMOBARB® by NewAge | Natural Nylon Connector | 1/4" Hose ID | Bag of 100

5001255 THERMOBARB® by NewAge | Natural Nylon Connector | 1/4" Hose ID | Bag of 100

Save $1.34 Save $1.34
$26.67
$26.67 - $26.67
$26.67
$25.33
$25.33 - $25.33
$25.33

PRODUCT DESCRIPTION

NewAge Industries - THERMOBARB® Plastic Fittings - Series 500 - Natural Nylon Multi-Barbed Fittings - Connector

Package Quantity: 100 EA

Specifications for Variant SKU: 5001255 NewAge | 100 |
Brand: THERMOBARB
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb
Material(s): Nylon
Applicable Specs & Approvals: NSF 51, NSF 61, Applicable FDA Requirements, Animal-Derived Ingredient Free
Features:
  • Formulated to resist physical stress and abrasion
  • Material: nylon 6 compound, NSF-51 and NSF-61 listed; FDA-approved ingredients
  • Free of animal derived ingredients and conflict minerals
  • Maximum Operating Temperature**: 149°F
  • Excellent mechanical properties and strength
Recommended Clamps:
  • Oetiker® Clamps
  • Kwik Clamps™ - Nylon Double Bond Hose Clamps
  • Worm Gear Clamps - Stainless Steel Clamps

Part Number Dimensions (Hose ID)
5001185† 1/8"
5001255 1/4"
5001290 5/16"
5001325 3/8"
5001360 1/2"

* Limited stock item; lead times and minimums may apply -- contact support.
† Available in single barb style only

** Values listed are typical and are meant only to aid in design. Field testing should be performed to find the actual values for the application. Clamps must be used in higher pressure applications.

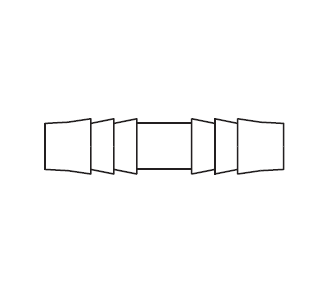

Note: Actual product may appear different than shown in drawings
